4G Solar Outdoor Router
A companion wireless communication product developed specifically for the needs of the security industry, with a wireless rate of up to 300Mbps, bringing great convenience to security users in engineering construction, and providing secure data network, acquisition and transmission for surveillance. All-network 4G network access, fully compatible with 4G/3G/2G network, equipped with a 10/100M Ethernet LAN interface, and ICP connection connection; 1 DC 12V reverse power supply port, can directly power the IPC. With the solar system, the installation is more arbitrary.
You can choose the frequency band according to the area of use, please contact us for details.
Product Features
• Solar Powered Systems

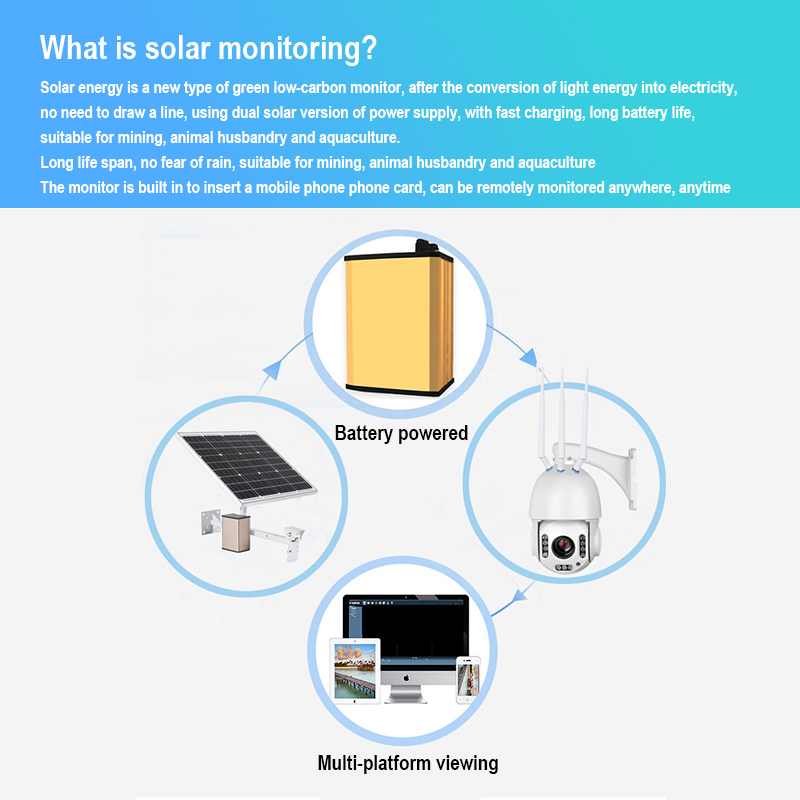

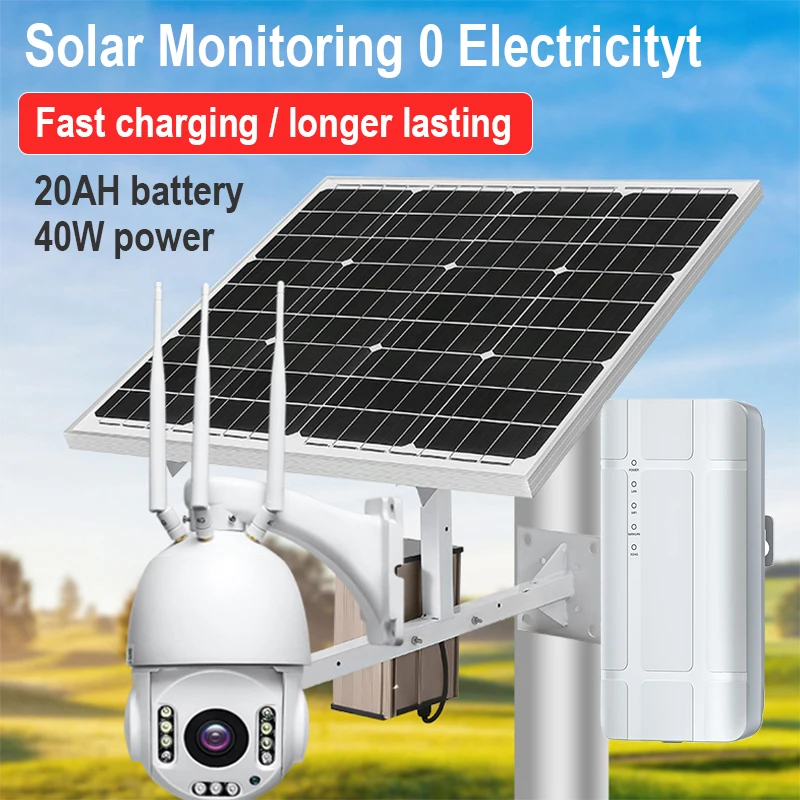

Solar monitoring power supply system 12V lithium battery field no power no network 4G camera solar power generation.Solar power 40W 20Ah, built-in large capacity battery, 12V power output, stable power supply to 4G CPE through waterproof power DC interface
• Industrial waterproof design, reverse power supply, 300M wireless speed
Adopt professional wireless processor, integrated molding shell, can effectively waterproof and dustproof, external 5dBi 4G professional antenna, built-in WiFi antenna, the device itself is configured to connect the cable, providing a 100 megabit wired port, connected to the IPC, network transmission more stable, another configuration of 12V DC output port, can directly power the IPC.
• Easy to set up, plug and play
Built-in quick setup wizard, guiding customers to complete the configuration easily; default 4G access mode, plug and play; support 4G to wired, support mobile Unicom Telecom 4G/3G/2G Internet cards, more 4G Internet advantages in places where wired bandwidth can not reach, 4G and wired automatically switch, never disconnected.
• A variety of security policies to protect network data security at all times
Support WPS, WPA, WPA2 wireless security access, support SSID masking, guest network, black and white list, LAN port isolation, ALG, MAC filtering, IP filtering, NAT settings, DDOS effective protection network security, always protect the user network data security.
• A variety of status statistics, always know the working status of the device
Built-in traffic statistics, support traffic package settings, easy to understand the monthly traffic usage; multi-state work indicator, real-time work log view, always know the working status of the device.
• Never-ending product feature updates and performance optimization
The R&D team with craftsmanship spirit has been never-ending feature updates to simply and efficiently meet the needs of various network environments; refined performance optimization to ensure the provision of the highest quality network products and enhance user experience.
| Router Hardware Specifications | |
| Main chipset | Qca9531 |
| Main Frequency | 580MHz |
| Wireless Technology | 802.11b/g/n 300M MIMO technology |
| Flash | 16M |
| DDR | 64Mb |
| Device Interfaces | LAN 10/100Mbps Adaptive Network Interface*1 |
| DC reverse power supply port*1 | |
| Powered interface*1 | |
| Nano SIM card, small card | |
| Antenna | External 5dBi 4G antenna, built-in on-board WiFi antenna |
| Power consumption | <7W |
| Keypad | 1 RESET button, long press for 3 seconds to restore factory settings |
| Product Size | 172mm*90mm*60mm |
| RF Parameters | 802.11b/g/n:2.4~2.4835GHz |
| Modulation Mode | 11b: DSS:CCK 5.5/11Mbps,DQPSK 2Mbps,DBPSK 1Mbps |
| 11g:OFDM:64QAM 48/54Mbps,16QAM 24Mbps,QPSK 12/18Mbps,BPSK 6/9Mbps | |
| 11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM | |
| Transmission Rate | 11b: 1/2/5.5/11Mbps |
| 11g: 6/9/12/18/24/36/48/54Mbps | |
| 11n: up to 300Mb | |
| Receiving Sensitivity | 11b: <-84dbm 11Mbps. |
| 11g: <-69dbm 54Mbps. | |
| 11n: HT20<-67dbm HT40: <-64dbm | |
| Transmitting power | 11b: 18dBm 1~11Mbps |
| 11g: 16dBm 6~54Mbps | |
| 11n: 15dBm MCS0~7 | |
| Communication standard | IEEE 802.3(Ethernet) |
| IEEE 802.3u(Fast Ethernet) | |
| IEEE 802.11b/g/n(2.4G WLAN) | |
| Wireless Security | WPA/WPA2 security mechanism (WPA-PSK using TKIP or AES) |
| Network standard/GNSS | EC20 CE FHKG |
| Frequency Band | Customizable |
| GNSS function | GPS, GLONASS, BeiDou/Compass, Galileo,QZSS |
| Transmit Power | Class 4 (33dBm±2dB) for GSM900 |
| Class 1 (30dBm±2dB) for DCS1800 | |
| Class E2 (27dBm±3dB) for GSM900 8-PSK | |
| Class E2 (26dBm±3dB) for DCS1800 8-PSK | |
| Class 3 (24dBm+2/-1dB) for CDMA BC0 | |
| Class 3 (24dBm+1/-3dB) for WCDMA bands | |
| Class 2 (24dBm+1/-3dB) for TD-SCDMA bands | |
| Class 3 (23dBm±2dB) for LTE-FDD bands | |
| Class 3 (23dBm±2dB) for LTE-TDD bands | |
| LTE Features | Maximum support for 3GPP R8 non-CA Cat 4 FDD and TDD |
| Support 1.4MHz~20MHz RF bandwidth | |
| Downlink support MIMO | |
| LTE-FDD: Max. downlink rate 150Mbps, max. uplink rate 50Mbps | |
| LTE-TDD: Max. downlink rate 130Mbps, Max. uplink rate 35Mbps | |
| UMTS Features | Supports 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA |
| Supports QPSK, 16-QAM and 64-QAM modulation | |
| DC-HSDPA: Maximum downlink rate 42Mbps | |
| HSUPA: Maximum uplink rate 5.76Mbps | |
| WCDMA: Max. downlink rate 384Kbps, max. uplink rate 384Kbps | |
| TD-SCDMA Features | Support CCSA Release 3 TD-SCDMA |
| Max. downlink rate 4.2Mbps, max. uplink rate 2.2Mbps | |
| CDMA Characteristics | Support 3GPP2 CDMA2000 1X Advanced and 1xEV-DO Rev. |
| EVDO: Max. downlink rate 3.1Mbps, max. uplink rate 1.8Mbps | |
| 1 X Advanced : Max. downlink rate307.2Kbps, maximum uplink speed 307.2Kbps | |
| Operating/Storage Temperature | -10℃~50℃/-40℃~70℃ |
| Operating/Storage Humidity | 5% to 95% (non-condensing) |
| Operating Mode | 4G access, routing mode, AP mode |
| Bandwidth | 30 people |
| Management Method | Chinese WEB remote management |
| Status | System status, interface status, routing table |
| Wireless Configuration | WiFi basic parameters configuration/blacklist |
| Network Settings | Operating mode |
| LAN port / WAN address setting | |
| Traffic Assistant | Traffic statistics/package setting/traffic control |
| System |
System properties / password change / backup upgrade / system log / reboot
|
Solar Hardware Specifications
| Monocrystalline Solar Panel | Conversion rate: 17% or more |
| Maximum voltage: 18V | |
| Max. current: 1.75A | |
| Short-circuit current Isc(A): 1.913A | |
| Voc(V open circuit voltage): 21.324V | |
| Maximum power:40W/block | |
| Dimension: 540*450*25mm | |
| Current at maximum power Ipm(A): 9.5A | |
| Voltage at maximum power Vpm(V): 18.267V | |
| Functional characteristics: use solar energy to convert into electricity, and back-end storage and front-end equipment power supply | |
| Solar Controller | System voltage: 12V |
| Rated charging current: 10A | |
| PWM charging mode | |
| Features: battery reverse connection protection | |
| Solar panel reverse connection protection | |
| Prevent the battery from discharging to the solar panel at night | |
| Working temperature: -35℃-+55℃ | |
| Lithium Battery | 12V20AH. |
| Ternary lithium battery. | |
| 3 strings | |
| Size: 130*138*81mm | |
| Lithium Battery Waterproof Case | Outlet waterproof rating: IP66 |
| Solar Panel Bracket | With holding hoop |
| Solar System Package | Packing: Pearl cotton + carton |
| Outer size: 50*20.5*60.5cm | |
| Weight: 8.2Kg |
