Battery
Inverter |
5KWH
|
10KWH
|
20KWH
|
30KWH
|
|||
|
48V/5KW
|
48V/5KW
|
48V/10KW
|
48V/15KW
|
||||
|
Photovoltaic
Panel |
46.9V/550W
|
46.9V/550W
|
46.9V/550W
|
46.9V/550W
|
|||
|
8pcs
|
16pcs
|
24pcs
|
32pcs
|
||||
|
4S2P
|
4S4P
|
4S6P
|
4S8P
|
||||
|
4400W
|
8800W
|
13200W
|
17600W
|
||||
|

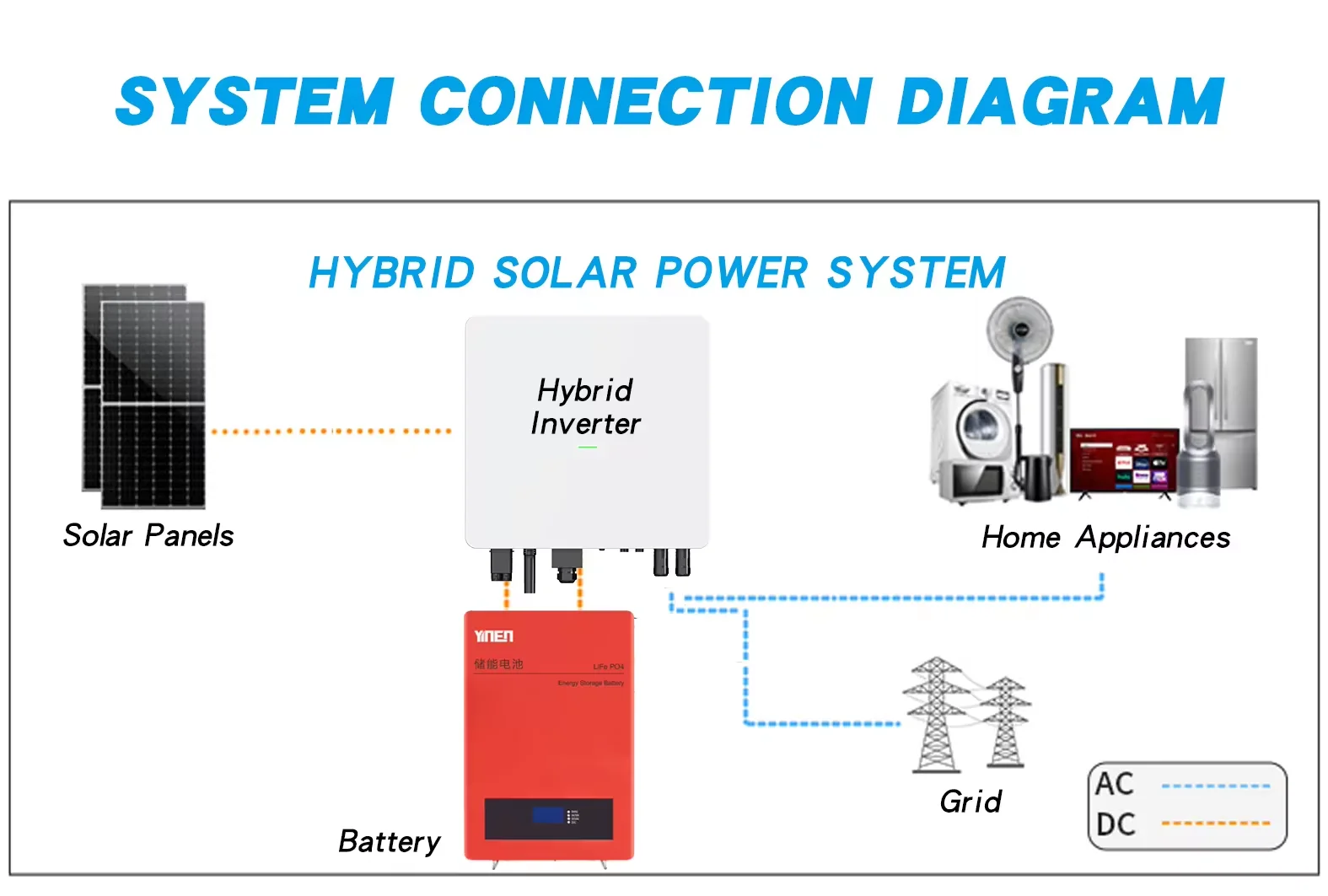

Hybrid Inverter
|
51.2V/5000W*1
|
51.2V/5000W*1
|
51.2V/5000W*2
|
51.2V/5000W*3
|
|||
|
Max. PV 7.5KW
|
Max. PV 7.5KW
|
Max. PV 15KW
|
Max. PV 22.5KW
|
||||
|
Lithium battery
|
PV Opencircuit voltage 600VDC
|
PV Opencircuit voltage 600V
|
PV Open circuit voltage 1200
|
PV Open circuit voltage 1800V
|
|||
|
Lithium battery
|
(51.2V/102AH)*1
|
(51.2V/102AH)*2
|
(51.2V/102AH)*4
|
(51.2V/102AH)*6
|
|||
|
Lithium iron phosphate, Lithium ternary, AGM battery Customized
|
|
|
|
||||
|
PV cable
|
4m²(Black and red 50 meters each)
|
4m²(Black and red 50 meters each)
|
4m²(Black and red 100 meters each)
|
4m²(Black and red 200 meters each)
|
|||
|
Combiner box
|
(Optional)
|
(Optional)
|
(Optional)
|
(Optional)
|
|||
|
RS485
communication |
PC remote, mobile APP:GPRS/IF/Ethernet/PC upper computer (optional)
|
|
|
|
|||
High Power Density
Lower loss, higher power output
|
Weight 29.0kg
|
||
|
Dimensions 2278x1134x35mm
|
||
|
Cell Type Mono Crystalline 182x91mm
|
||
|
Number Of Cells 144（6×24）
|
||
|
Glass 3.2mm Tempered Low Iron Glass
|
||
|
Frame Aluminum Alloy
|
||
|
Junction Box Split Junction Box
|
||
|
Connector Mc4 Compatible
|
||
|
Output Cables 4m²,Customized Length
|
||
|
Operating Temperature -40~+85℃
|
||
|
Number Of Bypass Diodes 3
|
||
|
Maximum System Voltage VDC1500V
|
||
Higher Reliability
High Capability
Support mixture use of old & new battery
Smart Monitoring
VPP interface ready
Cloud + Smart data analysis
|

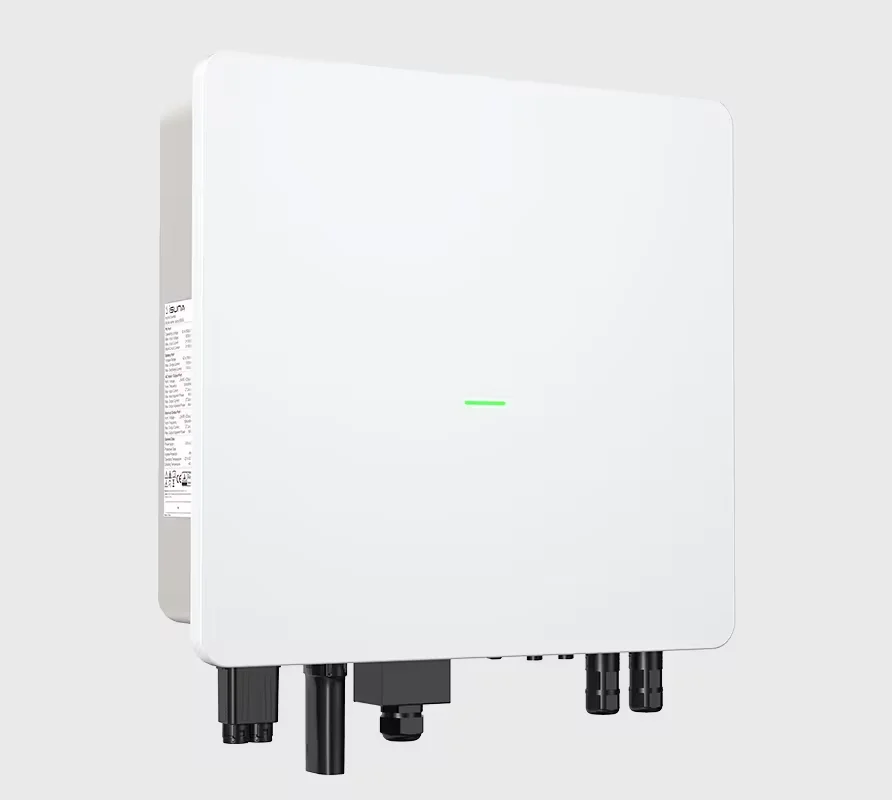

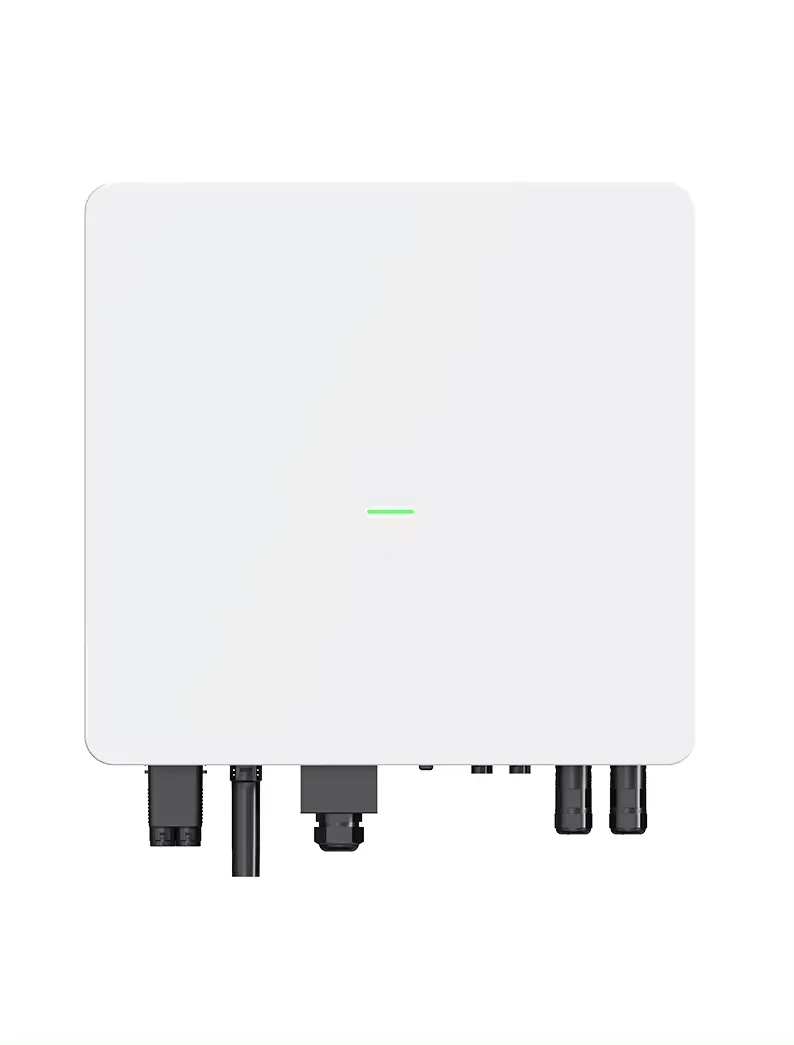

Weight 21Kg
|
||
|
Dimensions 500x470x180mm
|
||
|
Max. Output Current 22.7A
|
||
|
Nominal Output Power 5000W
|
||
|
Starting Voltage 95V
|
||
|
MPPT Voltage Range 80-550V
|
||
|
Full Load MPPT Voltage Range 350-500V
|
||
|
Nominal Input Voltage 360V
|
||
|
Noise <25dB(A)
|
||
|
Discharging Efficiency 95.2%
|
||
|
Operating Temperature Range -25℃~+60℃
|
||
Compact Size, Easy Installation
Supports a maximum of 16 batteries in parallels
Compensive BMS to Match all Hybrid Inverters
Convenient RS485,CAN BUS Communication, optional blue tooth
|
Weight 50Kg
|
||
|
Rated Capacity 102Ah
|
||
|
Dimension 400×178×600mm
|
||
|
Rated Voltage 48Ｖ/51.2V
|
||
|
Cycle Life ≥6000cycles
|
||
|
Maximum expansion 16 groups
|
||
|
Maximum continuous current 100A
|
||
|
Transient Discharge Current 110A
|
||
|
Charging cut-off Voltage 58.4V
|
||
|
Discharge cut-off voltage 40V
|
||
|
Discharge Temperature -30~＋60℃
|
||
|
Charging Temperature -10~＋55℃
|
||
