Product Description
* Dual PV Input, Dual MPPT

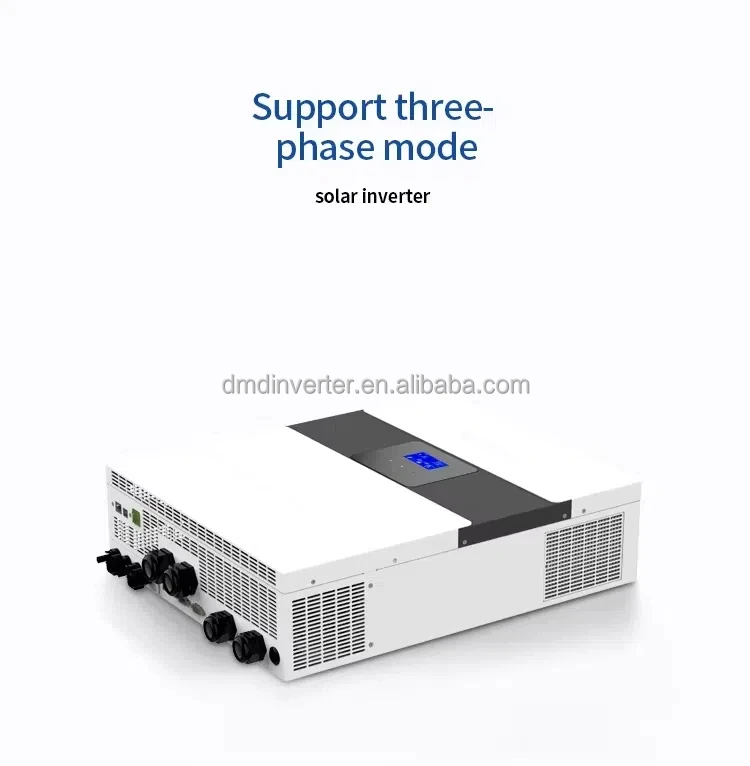

* Support 3 Phase Mode
* Pure sine wave off-grid type optical
* Support 3 Phase Mode
* Pure sine wave off-grid type optical
* Up to 6 units can be Parallelled
* Wide PV input voltage range (120-500VDC)
* Wide PV input voltage range (120-500VDC)

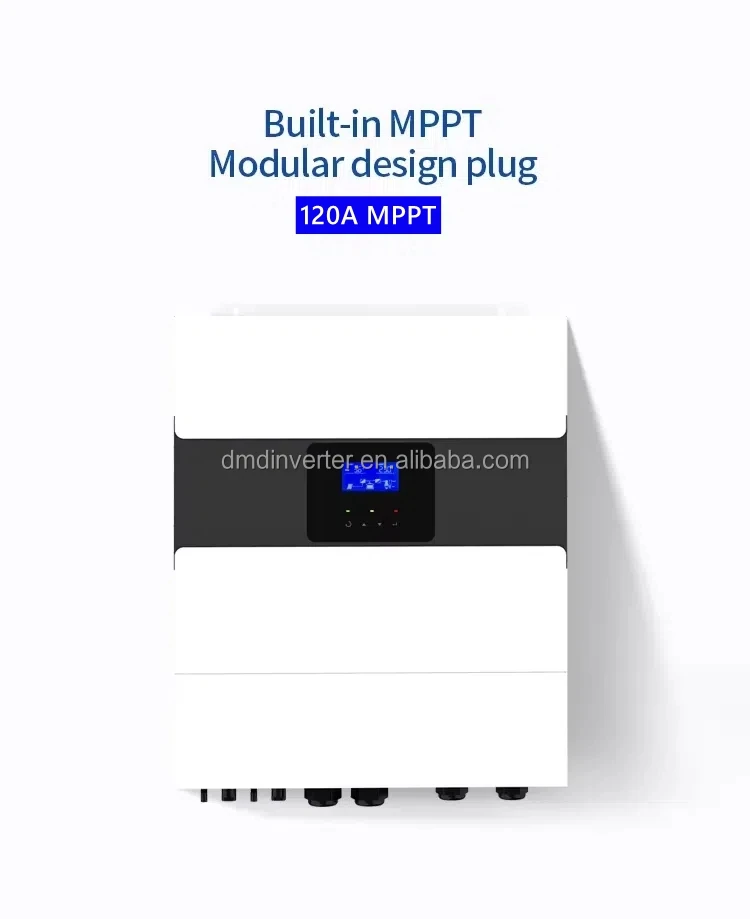

* Built-in 120A MPPT Charge Controller
* Can work without a battery
* Can work without a battery
|

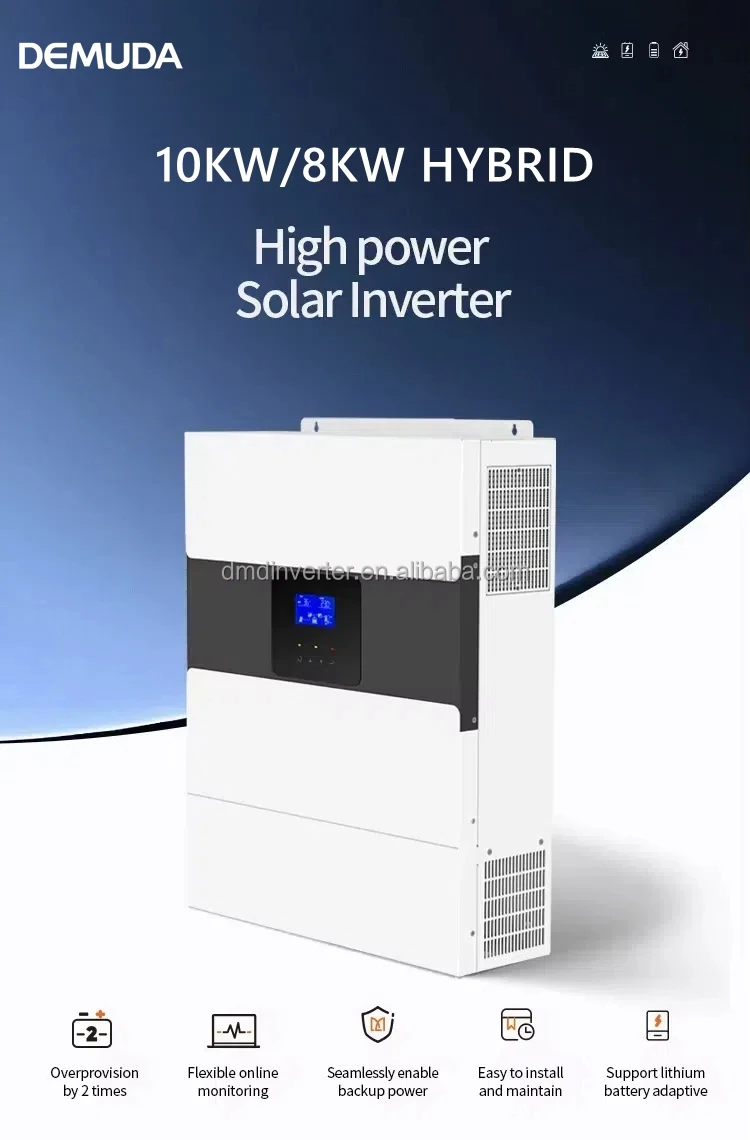

Dual PV Input / Dual MPPT Solar Hybrid Inverter
|
||||
|
Model Name
|
SC HF8000-48 Plus
|
|||
|
Rated Power
|
8000VA / 8000W
|
|||
|
Input (DC)
|
||||
|
Voltage
|
120-450 VDC
|
|||
|
Voltage Range
|
170-280 VAC ( Suitable for personal computers )
90-280 VAC ( Suitable for household appliances ) |
|||
|
Normal Output Current
|
25.5A
|
|||
|
Frequency Range
|
50 Hz / 60 Hz ( Automatic adaptation )
|
|||
|
Output (AC)
|
||||
|
AC Voltage Regulation
|
230 VAC ±5%
|
|||
|
Surge Power
|
11 KVA
|
|||
|
Peak Effciency
|
up to >93.5%
|
|||
|
Switch Time
|
10ms
|
|||
|
Waveform
|
Pure Sine Wave
|
|||
|
Battery
|
||||
|
Battery Voltage
|
48 VDC
|
|||
|
Float Charge Voltage
|
54 VDC
|
|||
|
Overcharge Protection
|
63 VDC
|
|||
|
Solar Charge & AC Charge
|
||||
|
MAX PV Array Power
|
8000W
|
|||
|
PV Maximum Open Circuit Voltage
|
500 VDC
|
|||
|
MPPT Operating Voltage Range
|
120 VDC – 450 VDC
|
|||
|
Maximum PV Charge Current
|
120A
|
|||
|
Maximum AC Charge Current
|
120A
|
|||
|
Physical Properties
|
||||
|
Package Size D*W*H (mm)
|
110*302*490mm
|
|||
|
Gross Weight (kgs)
|
26.5 KG
|
|||
|
Communication Interface
|
RS232 / RS485 / CAN / USB
|
|||
|
Working Environment
|
||||
|
Humidity
|
5% to 95% Relative Humidity (Non-condensing)
|
|||
|
Operating Temperature
|
-10℃ – 50℃
|
|||
|
Storage Temperature
|
-15℃ – 60℃
|
|||
|

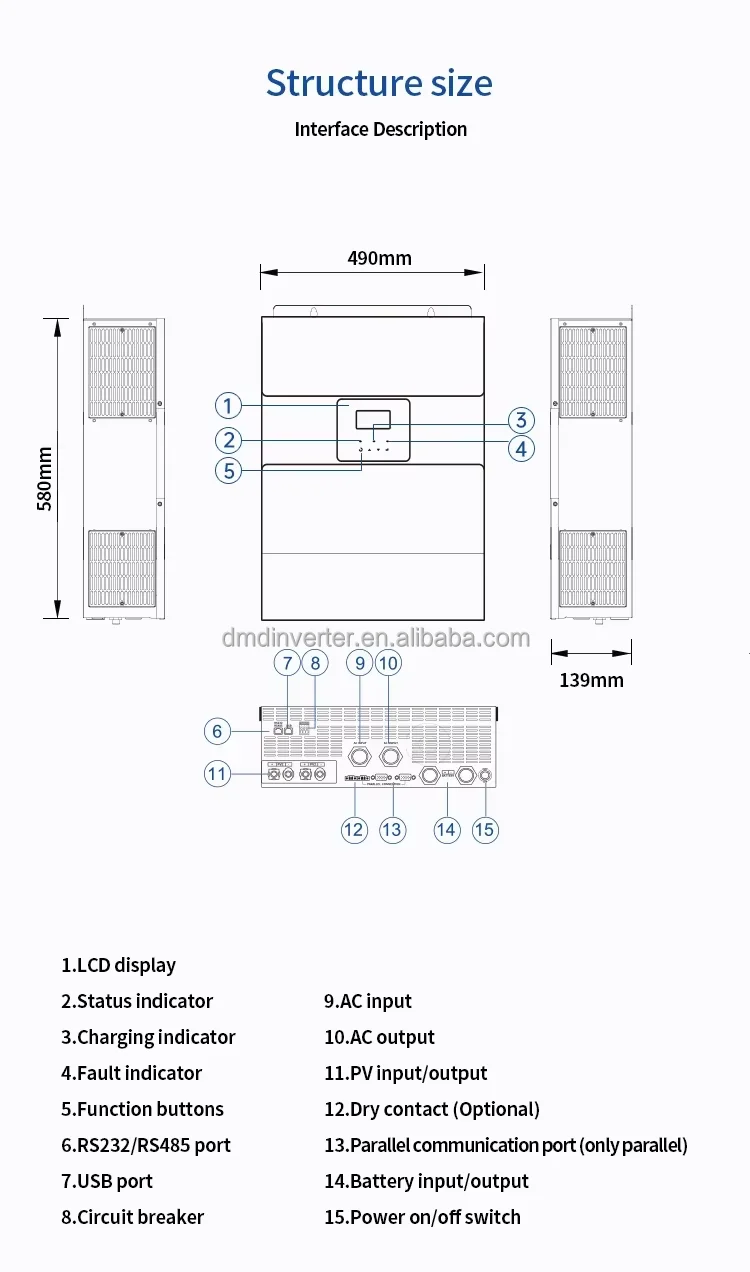

Product Size(mm)
|
490*580*139mm
|
|||
|
Package Size(mm)
|
588*677*254mm
|
|||
