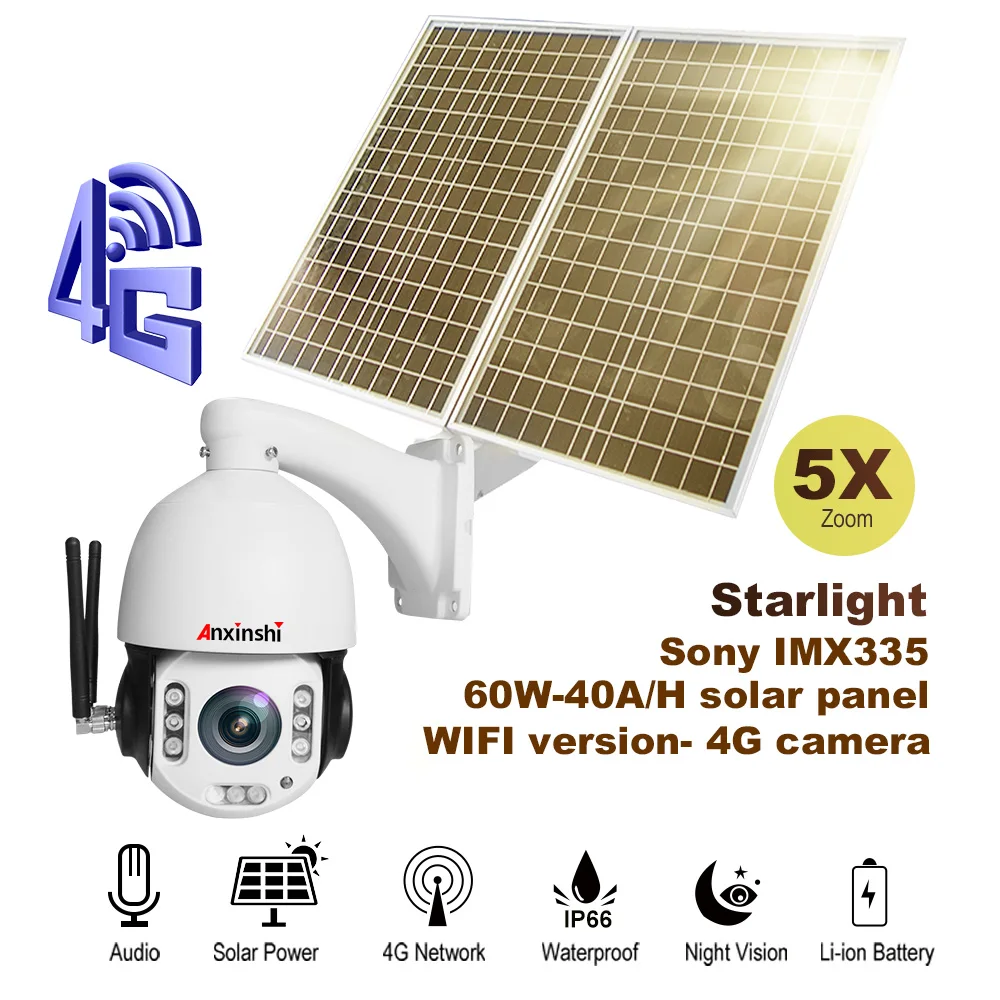

| Camera: Starlight 1/2.8” 5.0M Pixel Sony CMOS IMX335 HI3516D + IMX335 20x f = 4.7mm -94mm Network Features: Dome Features: |
||
| Form parameters | ||
| Mode | Name and Description | 120M 4G wifi Human tracking IP PTZ Camera |
| ASIHPT496GT-020-56 | ||
| Camera | Image Sensor | 1/2.8″ 5.0Mpixes Sony IMX335 CMOS |
| Effective Pixels | 5.0 Megapixels | |
| Min. Illumination | Color: 0.01lux, 0 Lux with IR | |
| Zoom | 20X optical , f=4.7mm~94mm+10x digital | |
| Day/Night | Auto ICR | |
| WDR | D-WDR | |
| OSD Display | OSD name, time, date, information overlay | |
| IR | Luminary | 6 PCS Infrared lights |
| Night vision distance | 120m | |
| Lamp control | CDS Control | |
| Network | Video Compression | H.265/H.264 |
| Streams | Dual streams | |
| Frame Rate | Main stream: 2592×1944@30fps, 2304×1296@30fps, 1920X1080@30fps | |
| Sub-stream: D1(704*576), VGA(640*480), 640*360, 568*320, CIF(352*288), QVGA(640*320), 320*192; 1-25(30)fps | ||
| Bitrate | CBR/VBR, bitrate:200~8000Kbps | |
| P2P | Android,IOS (iCute Cam) | |
| Protocols | TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP | |
| Motion detect | Support | |
| Privacy Zone Masking | Support | |
| Onvif | Onvif 2.4 | |
| Network | 10/100M Base-TX Ethernet, RJ45 Connector | |
| 2G | GPRS/EDGE (900/1800) | |
| 3G | WCDMA (Band 1/8) / TD-CDMA (Band 34/39) | |
| 4G | FDD-LTE (Band 1/3) / TDD-LTE (Band 38/39/40/41) | |
| Wifi | 802.11b/g/n | |
| Mini SD Card | Support (Up to 128GB) | |
| Alarm I/O | N/A | |
| Audio I/O | N/A | |
| CVBS Output | N/A | |
| Reset Button | N/A | |
| Dome Features | CPU Type | 32 bit ARM CPU |
| Address | 0~255 | |
| Pan Range | 360° | |
| Tilt Range | -5~90° | |
| Manual pan speed | 0.5-60º/S | |
| Manual tilt speed | 0.5-60º/S | |
| Preset points | 256 | |
| Patrol scan | 4 | |
| L/R Scan | 1 | |
| Horizontal Scan | 1 | |
| Power-off memory | Support | |
| General | Work temperature | –20℃~60℃ |
| Work Humidity | 0%~90% (Non condensing) | |
| Power | DC12V±10%; 3A/4A | |
| Consumption | <22W | |
| Weight | 2.05KG | |
