Y-Bang HotSales full power 12v to 220v 50HZ Modified Sine Wave 1000w 1500w inverter
Product Description
Power Inverter Specification
|
DC to AC Power Inverter Model |
1500W 3000W |
|
| Output | Output Waveform | Modified Sine Wave |
| Output Frequency | 50Hz / 60Hz | |
| Output Voltage | 220V / 110V AC | |
| Input | Input Voltage | 12V DC |
| Voltage Range | 10V~15V DC | |
| Low Volt Alarm | 10V±0.2V DC | |
| Low Volt Shutdown | 9.5V±0.2V DC | |
| Over Volt Alarm | 15.5V DC | |

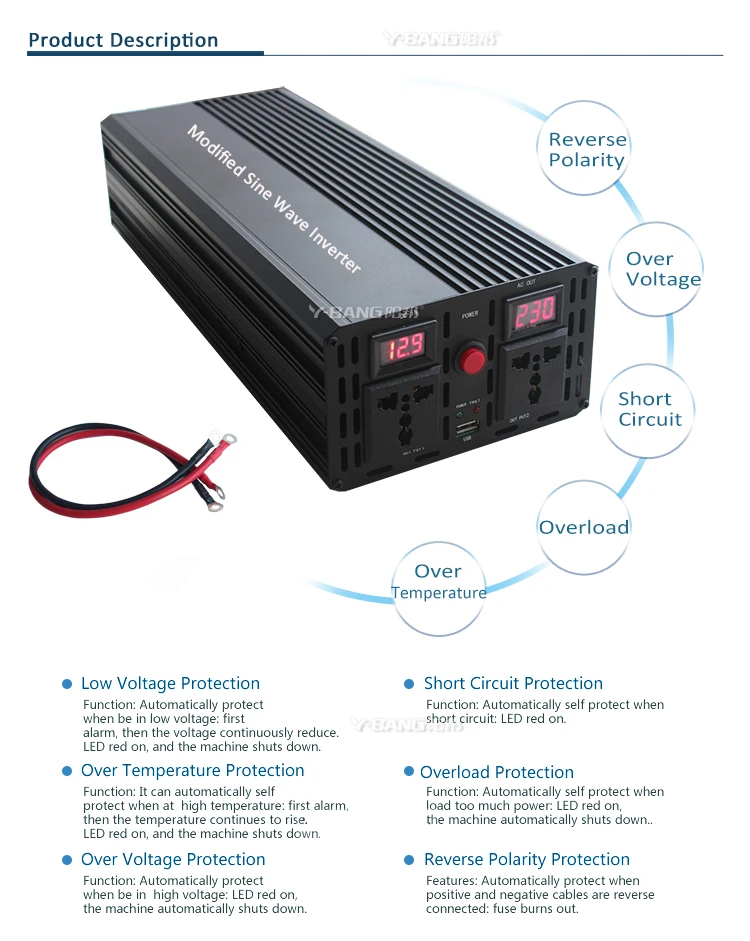

| Protection Function | Low Volt Alarm/Shutdown,
Overload,Over Voltage/Temp Shutdown, Automatic Short-circuit Shutdown, Reverse Polarity Protection |
|
| Efficiency | 90% | |
| Input Terminals | Red, Black Cables With Separated Terminals | |

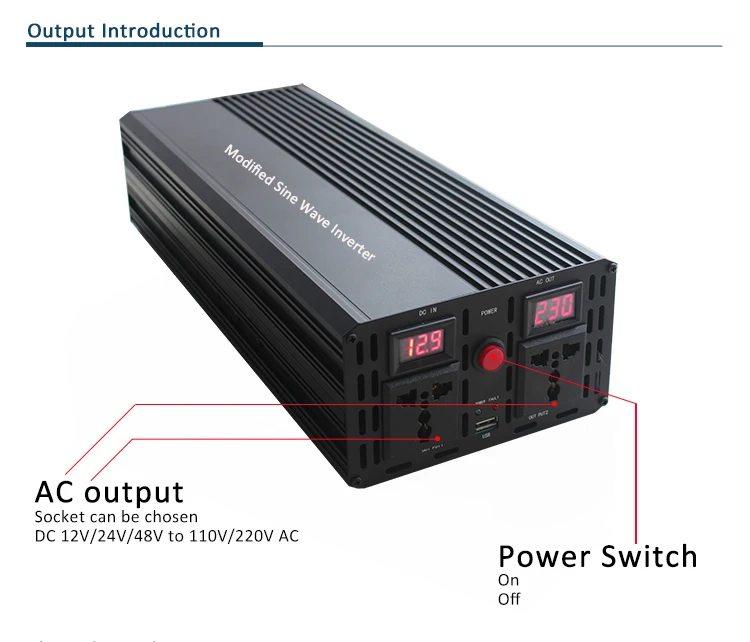

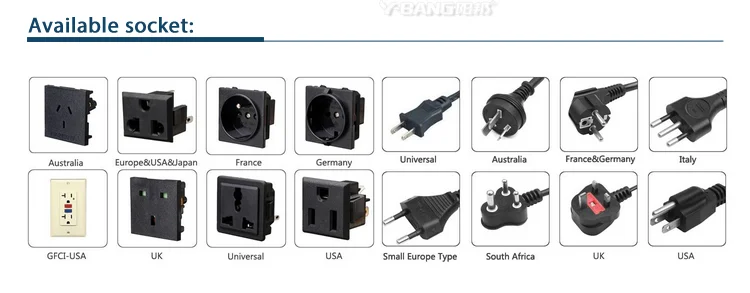

| Output Terminals | Output Socket / Outlet | |
| Working Temperature Range | -10℃ to +50℃ | |
| Working Humidity Range | 20%~90%RH Non-Condensing | |
| Storage Temperature Range | -30℃ to +70℃ | |
| Cooling Way | Fan-Cooling Automatically | |
