Sunheed solar systems can be used in homes, offices, villas, hospitals, churches, etc.
Sunheed solar power is from 300w to 100MW,
if you don’t know which model system is suitable for you,
Our 10 years experience sale manager will help you configure the system in 12hrs.
How to chose the suitable solar system?
★1.Chose solar system base on Installation area;
★2.Chose solar system base on your electricity bill;
★3.Chose solar system base on your home appliance capacity;
★4.Chose solar system base on your money/budget.
Send an inquiry, we can design a set of solar customized system that suits you best.

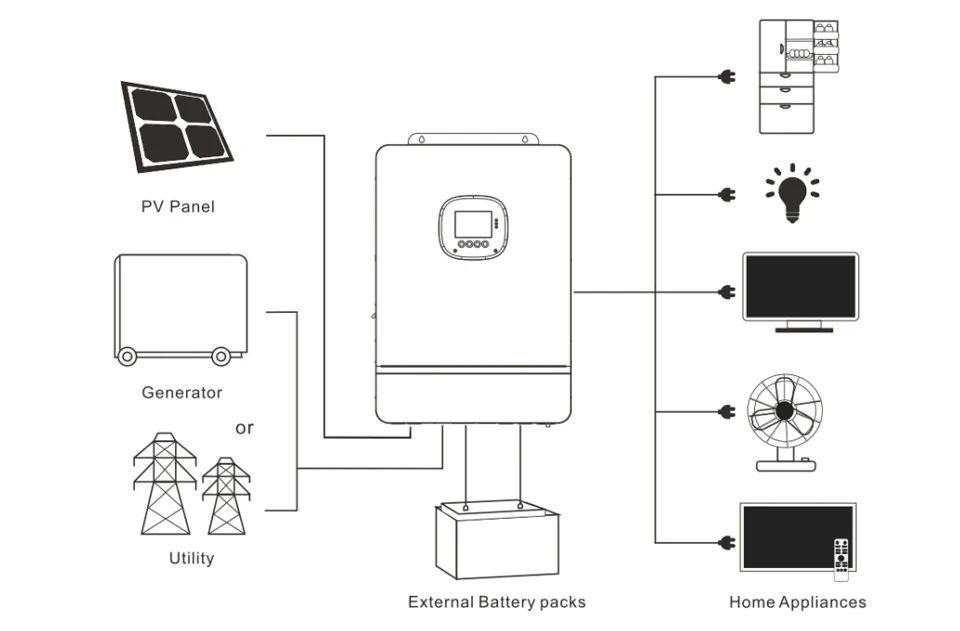

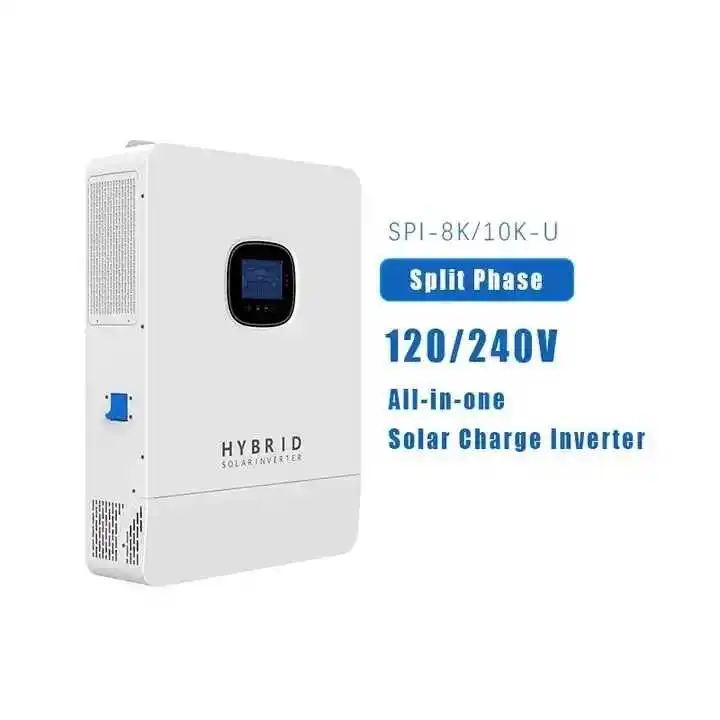

8KW 10KW 120V Single phase 240v split phase 48v off-grid hybrid solar inverter compatible with lithium ion battery
※Up to 22+22A PV input current
Reliable
※Outputs high quality pure sine wave AO power
※Up to 6 units in parallel connection
Safety
※Comprehensive security from hardware to software
※Multiple safety approvals
User-friendly
※Industrial design with a modern aesthetic look
※Easy to install and simple to use
All-in-one
※Up to 200A charging current
※Support L-ion battery BMS communication
Intelligent
※Exclusive U-ion battery BMS dual activation
※Time-slot function to save cost with peak-valley
|
Model No.
|
SPI-10K-UP
|
SPI-8K-UP
|
Can Be Set
|
|||
|
INVERTER OUPUT
|
||||||
|
Rated AC Output Power
|
10,000W
|
8,000W
|
||||
|
Max. Peak Power
|
20,000W
|
16,000W
|
||||
|
Rated Output Voltage
|

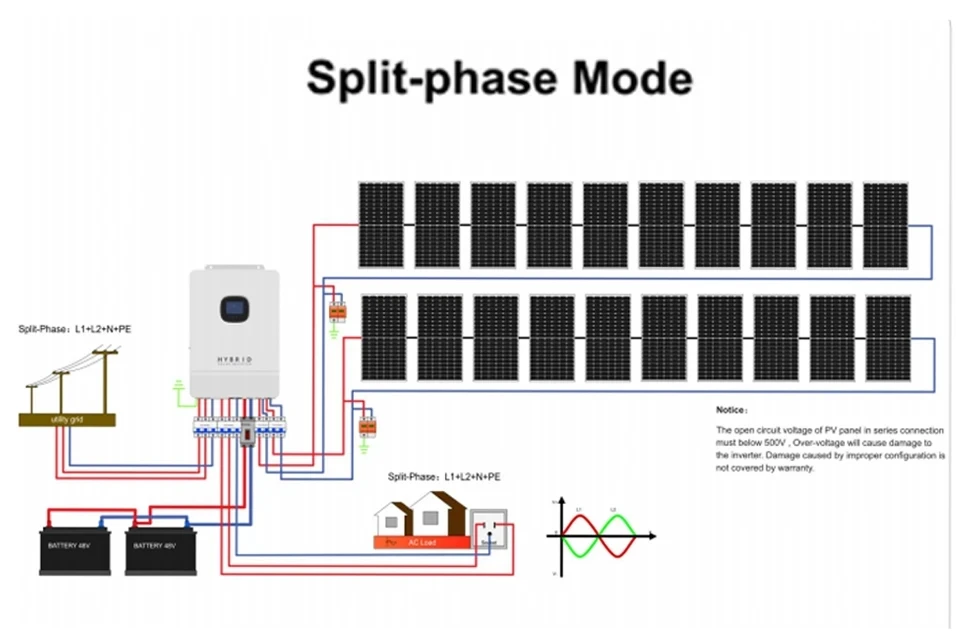

120Vac Single Phase/240Vac Split phase/3phase,be paralleled
|
√
|
||||
|
Load Capacity of Motors
|
6HP
|
5HP
|
||||
|
Rated AC Frequency
|
50/60HZ
|
√
|
||||
|
Wave Form
|
Pure Sine Wave
|
|||||
|
Switch Time
|
10ms(Typical)
|
|||||
|
Parallel Capacity
|
1-6 Units
|
|||||
|
Output Mode
|
Off-grid(Default)/Hybrid
|
√
|
||||
|
BATTERY
|
||||||
|
Battery Type
|
Li-ion/Lead Acid/User-defined
|
√
|
||||
|
Rated Battery Voltage
|
48Vdc
|
|||||
|
Battery Voltage Range
|
40~60Vdc
|
√
|
||||
|
Max MPPT charge current
|
200A
|
180A
|
√
|
|||
|
Max. Main Grid/Generator Charge current
|
120A
|
100A
|
√
|
|||
|
Max. Hybrid Charge current
|
200A
|
180A
|
√
|
|||
|
PV INPUT
|
||||||
|
No. of MPPT Trackers
|
2
|
|||||
|
Max PV Array Power
|
5500W+5500W
|
|||||
|
Max Pv Input Current
|
22A+22A
|
|||||
|
Max PV Open Circuit Voltage
|
500Vdc+500Vdc
|
|||||
|
MPPT Voltage Range
|
125-425Vdc
|
|||||
|
EFFICIENCY
|
||||||
|
MPPT Tracking Efficiency
|
99.9%
|
|||||
|
Max Battery Inverter Efficiency
|
92%
|
|||||
|
UTILITY/GENERATOR INPUT
|
||||||
|
Acceptable Input Voltage Range
|
90-140Vac
|
√
|
||||
|
Frequency Range
|
50/60HZ
|
|||||
|
BYpass Overload current
|
63A
|
|||||
|
GENERAL
|
||||||
|
Products Dimension,D X W X H (mm)
|
620*445*130
|
|||||
|
Product Net Weight(kgs)
|
27
|
|||||
|
Protection Degree
|
IP20, Indoor Only
|
|||||
|
Operating Temperature
|
-10℃ to 55℃,>45℃ Derated
|
|||||
|
Nosie
|
<60DB
|
|||||
|
Cooling Method
|
Internal Fan
|
|||||
|
Warranty
|
18 Months
|
|||||
|
COMMUNICATION
|
||||||
|

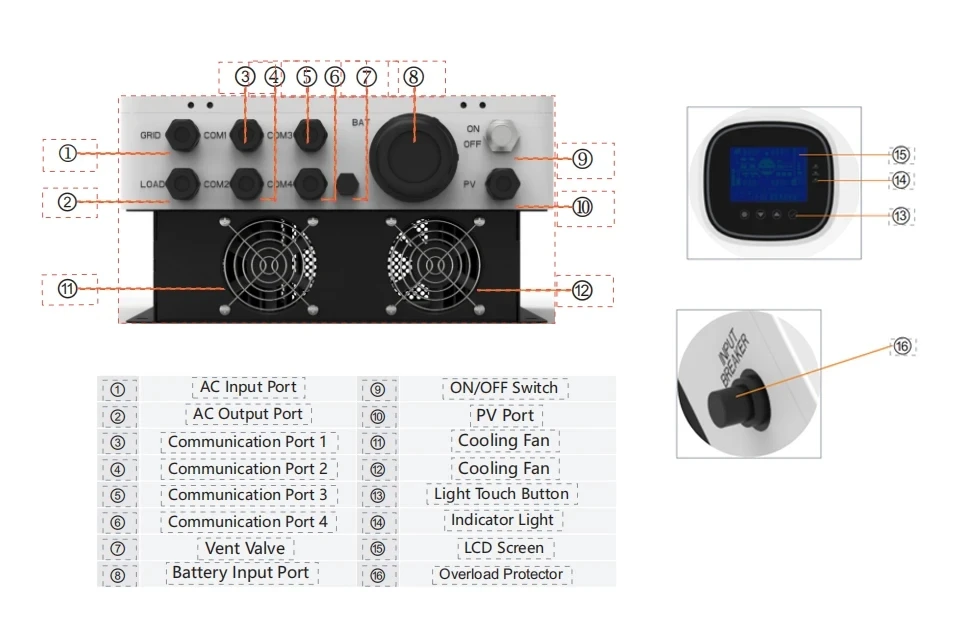

Embeded Interfaces
|
RS485/CAN/USD/Dry Contact
|
√
|
||||
|
External Modules( Optional)
|
WIFI/GPRS
|
√
|
||||
|
CERTIFICATION
|
||||||
|
Safety
|
IEC62109-1,IEC62109-2,UL1741
|
|||||
|
EMC
|
EN61000-6-1,EN61000-6-3,FCC 15 class B
|
|||||
|
RoHS
|
Yes
|
|||||
previous process
Use the mirror to inspect the appearance of the solar modules before lamination, and repair them if they are defective;
The most rigorous test and comprehensive QC information management, ensure 3% Positive Power Tolerance.
Professional technicians perform the fourth product quality inspection and secure and sturdy packaging.
certification.
