8KVA Hybrid Solar Inverter
Products Description
Off grid Hybrid Mppt*2 Wifi Parallel Bulit-in all in one 8kw solar inverter, three unit can be three phase,
Main Features:
*Buint-in Wifi For Mobile Monitoring(for Android/IOS Apps Are Available)
*Supports USB On-the-Go function
*Lithium battery BMS support (for Pylontech, Weco, Soltaro)
*Replaceable fan design for ease of maintenance
*Batteryless operation (single unit mode only)
*Configurable AC/PV Outout Usage Timer And Prioritization
*Selectable high power charging current Selectable input voltage range for home appliances and personal

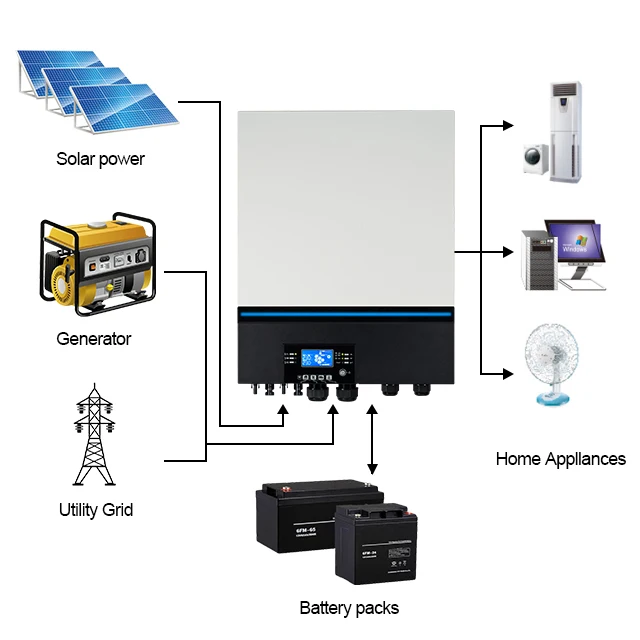

*Compatible to Utility Mains or generator input
*Built-in anti-dust kit
*Optional DC output for DC fan, LED bulb,router and so on

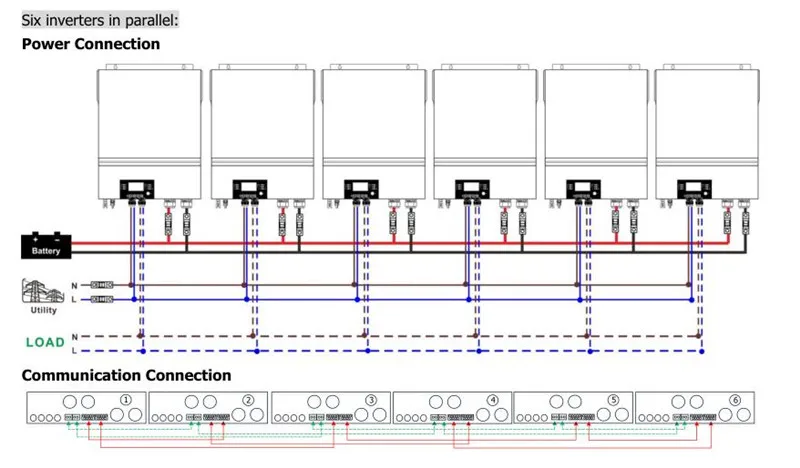

*Parallel operation up to 6 units,Built-in parallel kit

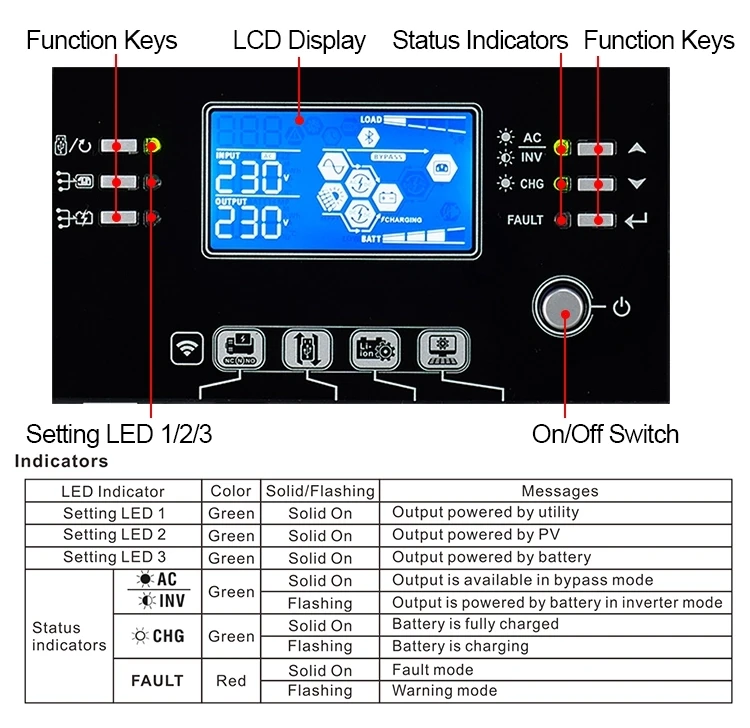

*Detachable LCD remote display
*High PV input design, 500V (Voc) max input
*Buint-in Wifi For Mobile Monitoring(for Android/IOS Apps Are Available)
*Supports USB On-the-Go function
*Lithium battery BMS support (for Pylontech, Weco, Soltaro)
*Replaceable fan design for ease of maintenance
*Batteryless operation (single unit mode only)
*Configurable AC/PV Outout Usage Timer And Prioritization
*Selectable high power charging current Selectable input voltage range for home appliances and personal
*Compatible to Utility Mains or generator input
*Built-in anti-dust kit
*Optional DC output for DC fan, LED bulb,router and so on
*Parallel operation up to 6 units,Built-in parallel kit
*Detachable LCD remote display
*High PV input design, 500V (Voc) max input
Technical Specification
|
Model
|
Expert Max 8000W
|
||||||
|
Rated Power
|
8000W/8000Kva
|
||||||
|
Paralell Capability
|
Yes,6 units
|
||||||
|
Input
|
|||||||
|
Voltage
|
230VAC
|
||||||
|
Voltage Range
|
170-280VAC for Personal Computer; 90-280VAC for Home Appliances
|
||||||
|
Frenquncy Range
|
60/50Hz (Auto sensing)
|
||||||
|
OutPut
|
|||||||
|
AC Voltage Regulation (Bat Mode)
|
230VAC ± 5%
|
||||||
|
Max Power
|
8000W
|
||||||
|
Transfer Time
|
10ms for Personal Computer; 20ms for Home Appliances
|
||||||
|
Waveform
|
Pure Sine Wave
|
||||||
|
No load power consumption
|
＜70W
|
||||||
|
DC OutPut
|
120vdc±5%，100w
|
||||||
|
Battery
|
|||||||
|
Battery voltage
|
48VDC
|
||||||
|
Floating Charging Voltage
|
54VDC
|
||||||
|
Overcharge Protection
|
66VDC
|
||||||
|
Solar Charger & AC Charger
|
|||||||
|
Solar Charge Type
|
MPPT
|
||||||
|
MPPT Range @ Operating Voltage
|
90~450VDC
|
||||||
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
||||||
|
Maximum PV Array Power
|
8000W(4000W*2)
|
||||||
|
Maximum Solar Charge Current
|
120A
|
||||||
|
Maximum Charge Current
|
120A
|
||||||
|
Maximum AC Charge Current
|
120A
|
||||||
|
Physical
|
|||||||
|
Dimension (L*W*H) CM
|
72*59*27
|
||||||
|
Net Weight (kgs)
|
22
|
||||||
|
Communication Interface
|

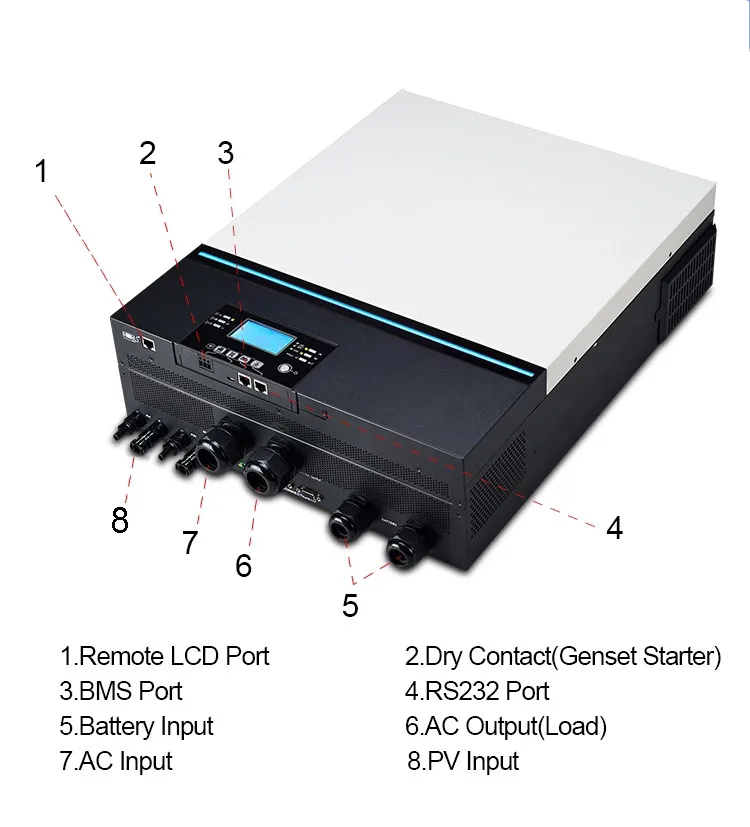

USB/RS232/RS485/wIfI/dry-contact
|
||||||
|
Gross Weight(kgs)
|
23
|
||||||
|
Environment
|
|||||||
|
Humidity
|
5%-95% Relative Humidity (Non-condending)
|
||||||
|
Operation Temperature
|
－10℃ to 50℃
|
||||||
|
Storage Temperature
|
－15℃ to 60℃
|
||||||
|
Standard
|
|||||||
|
Compliance Safety
|
CE
|
||||||
