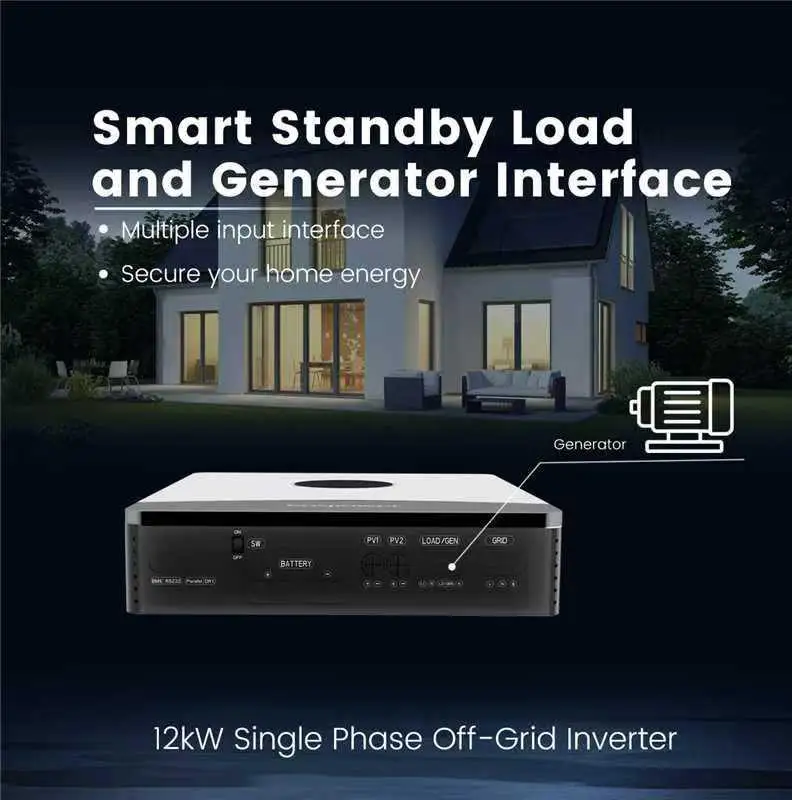

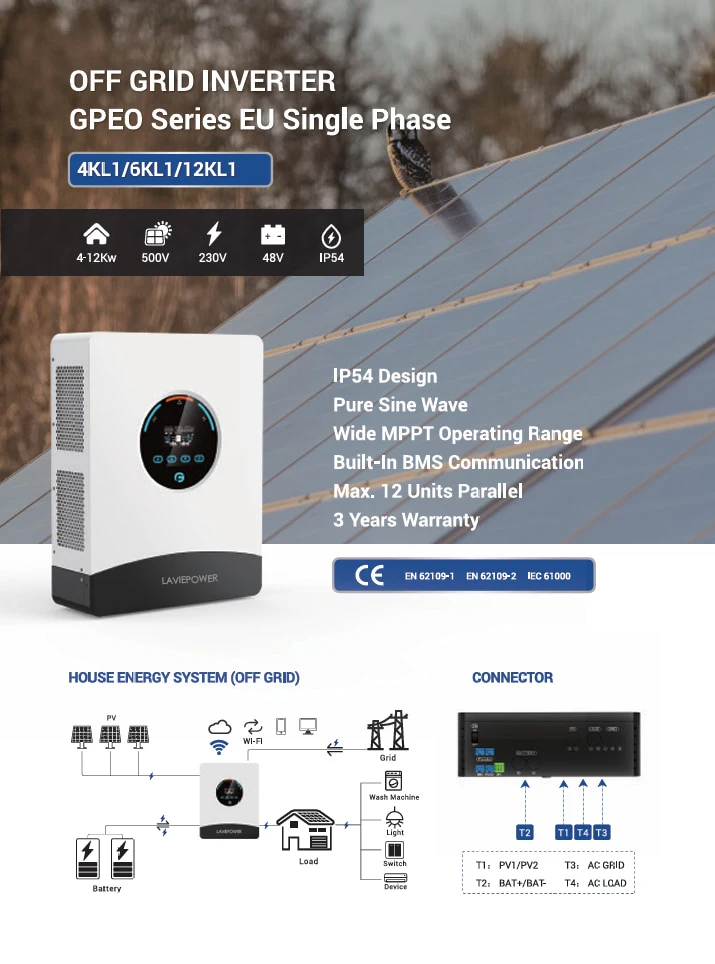

Product Description
Specifications
|
LAV-4KL1
|
LAV-6KL1
|
LAV-12KL1
|
||||
|
PV
(DC Input) |
Recommended max.PV input power
|
4000W
|
6000W
|
12000W
|
||
|
Max.input voltage(Voc)
|
500V
|
500V
|
500V
|
|||
|
MPPT operating voltage range
|
85V-450V(@85V start up)
|
85V-450V (@75V start up)
|
85V-450V (@75V start up)
|
|||
|
Number of MPPT
|
1
|
1
|
2
|
|||
|
Max.number of input strings per MPPT
|
1
|
1
|
1
|
|||
|
Max.input current per MPPT
|
15A
|
27A
|
27/27A
|
|||
|
Max.short-circuit current per MPPT
|
18A
|
35A
|
35/35A
|
|||
|
Grid
(AC Input) |
Max input power
|
5000W
|
11500W
|
16000W
|
||
|
Max input current
|
28A
|
50A
|
90A
|
|||
|
Rated grid voltage
|
220/230/240Vac
|
220/230/240Vac
|
220/230/240Vac
|
|||
|
Rated grid frequency
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|||
|
Acceptable range
|
170-280Vac(For UPS);
90-280Vac(For Home Appliances) |
170-280Vac(For UPS);
90-280Vac(For Home Appliances) |
170-280Vac(For UPS);
90-280Vac(For Home Appliances) |
|||
|
Battery
Parameters (Bidirection) |
Battery type
|
LiFePO4/Lead-acid
|
LiFePO4/Lead-acid
|
LiFePO4/Lead-acid
|
||
|
Battery voltage range
|
20~30Vdc
|
40~60Vdc
|
40~60Vdc
|
|||
|
Rate Battery Voltage
|
24Vdc
|
48Vdc
|
48Vdc
|
|||
|
Max.charge/discharge current
|
120A/160A
|
120A/130A
|
210A/230A
|
|||
|
BMS communication mode
|
RS485
|
RS485
|
RS485
|
|||
|
Back-up
Output (AC Output) |
Rated output power
|
4000W/4000VA
|
6000W/6000VA
|
12000W/12000VA(Twin output)
|
||
|
Rated output current
|
18.2A
|
27.3A
|
54.5A
|
|||
|
Rated output voltage /Frequency
|
220/230/240Vac 50/60Hz
|
220/230/240Vac 50/60Hz
|
220/230/240Vac 50/60Hz
|
|||
|
Parallel Capacity
|
_
|
Max. 12 Units
|
Max. 12 Units
|
|||
|
Surge power
|
8000VA 5s
|
12000VA 5s
|
24000VA 5s
|
|||
|
THDv(@linear load)
|
＜3%
|
＜3%
|
＜3%
|
|||
|
Switching time
|
10ms typical (For UPS) 20ms typical(For Home Appliances)
|
|||||
|
Efficiency
|
Peak efficiency
|
95.00%
|
98.00%
|
98.00%
|
||
|
Max.MPPT efficiency
|
99.90%
|
99.90%
|
99.90%
|
|||
|
Protection
|
Inner protection
|
√ Output short-circuit protection √ Output overvoltage protection
|
||||
|
Surge protection
|
PV:Type III,AC:Type III
|
|||||
|
IP rating
|
IP54
|
|||||
|
General
Parameters |
Operating temperature range
|
-10℃ ~ 55℃
|
||||
|
Relative humidity range
|
5%~95%
|
5%~95%
|
5%~95%
|
|||
|
Max.operating altitude
|
＞2000m derating
|
＞2000m derating
|
＞2000m derating
|
|||
|
Standby self-consumption
|
＜10W
|
＜10W
|
＜20W
|
|||
|
Installation type
|
Wall-mounted
|
Wall-mounted
|
Wall-mounted
|
|||
|
Cooling mode
|
Fan cooling
|
Fan cooling
|
Fan cooling
|
|||
|
Communication
|
RS232/RS485/Dry contact/WI-FI
|
RS232/RS485/Dry contact/WI-FI
|
RS232/RS485/Dry contact/WI-FI
|
|||
|
Display
|
LCD
|
LCD
|
LCD
|
|||
|
Mechanical
Specification |
Inverter dimensions (L*W*H) (mm)
|
444.7*346.6*120
|
444.7*346.6*120
|
630*535*125
|
||
|
Net weight (kg)
|
9.2
|
12.4
|
27
|
|||
|
Shipping dimensions (L*W*H)(mm)
|
560*465*240
|
560*465*240
|
745*650*240
|
|||
|
Gross weight (kg)
|
11.4
|
14.6
|
30
|
|||
|
Warranty Period
|
3 Years
|
|||||
