Products Description
|
Electrical
Characteristics |
Nominal Voltage
|
12.8V
|
|
Nominal Capacity
|
||
|
Energy
|
2560Wh
|
|
|
Internal Resistance
|
≤35mΩ
|
|
|
Cycle Life
|
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
|
Standard Charging
|
Max.Charging Voltage
|
14.0~14.6V
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not
more than 0.02C |
|
|
Charging Current
|
100A
|
|
|
Max.Charging Current
|
100A
|
|
|
Standard Discharging
|
Discharging Current
|
200A
|
|
Max. Continuous Current
|
200A
|
|
|
Max.Pulse Current
|
400A(<3S）
|
|
|
Discharging Cut-off Voltage
|
10.0
|
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
|
Structure
|

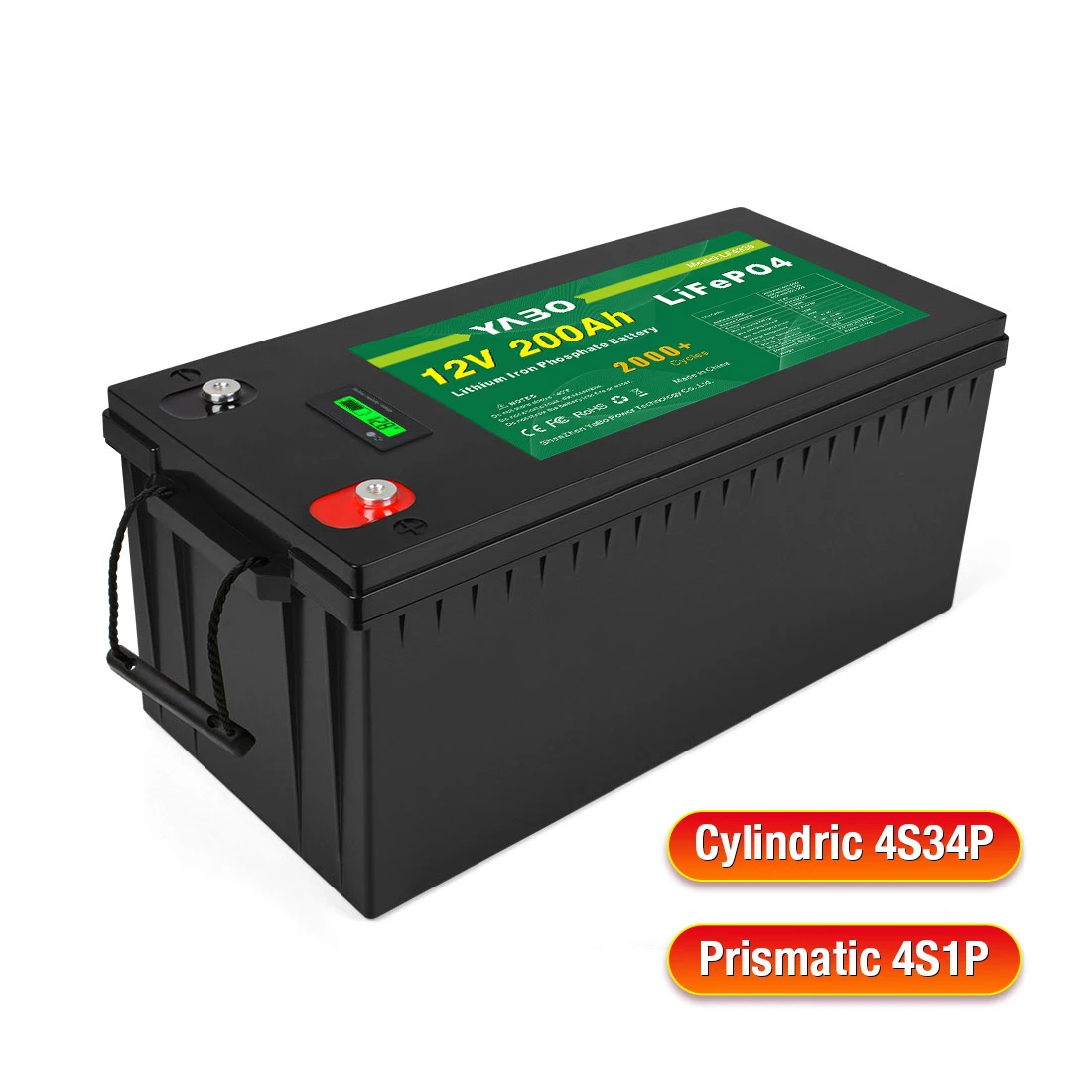

Cell & Format
|
IFR32700 N60,4S34P,4S33P,4S1P
|
|
Casing
|
Plastic
|
|
|
Dimension(L*W*H*TH)
|
522*238*217*217mm
|
|
|
Package Dimension
|
570*310*297mm
|
|
|
Weight
|
Approx. 23.5Kg
|
|
|
Terminal
|
M8
|

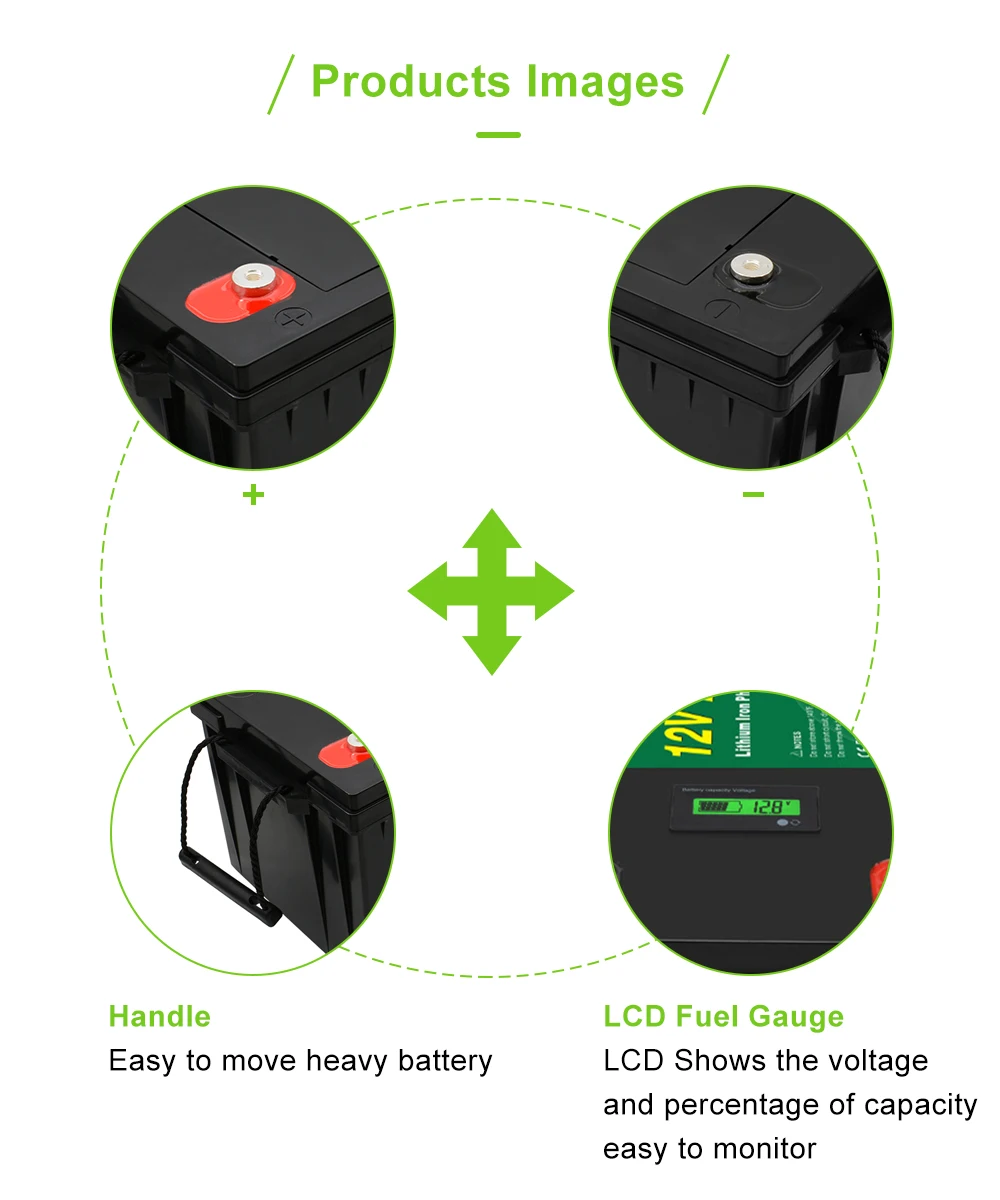

Details Images
◆ UPS ◆ Solar & Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Advantage
Custom
