Main Features
â–²Pure sine wave solar inverter(on/off Grid)2.Output power factor 1.0

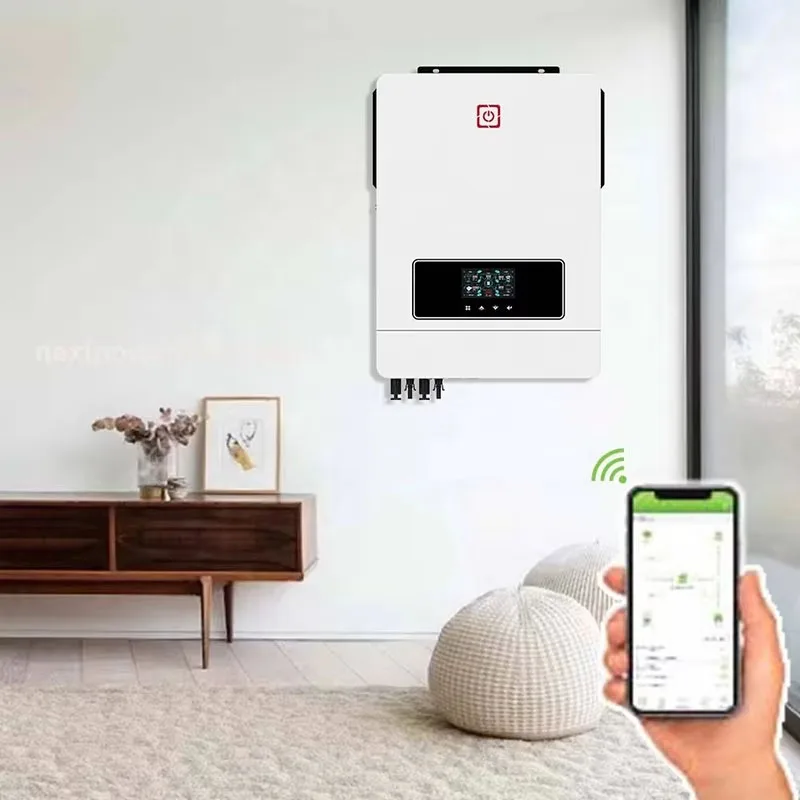

â–²WIFI&GPRS available for IOS and Android
â–²Inverter can run without battery
â–²One-key restoration to factory Settings
â–²Built-in Lithium battery automatic activation
â–²Built-in 160A MPPT solar charger (for 8.2kw,10.2kw)140A(for 7.2kw)
â–²High PV input voltage range(90~ 500VDC)
â–²Built-in anti-dust kit for harsh environment
â–²Smart battery charge design to optimize battery life

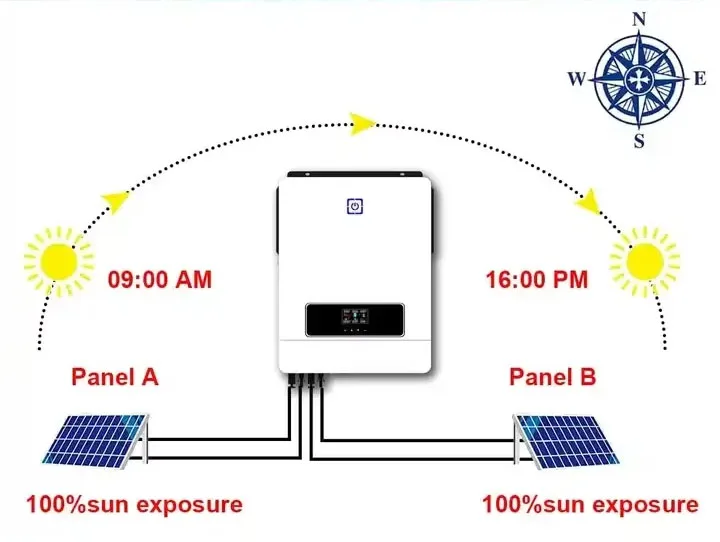

â–²Dual output Dual PV input Touch button On Off Grid Work Mode
â–²WIFI&GPRS available for IOS and Android
â–²Inverter can run without battery
â–²One-key restoration to factory Settings
â–²Built-in Lithium battery automatic activation
â–²Built-in 160A MPPT solar charger (for 8.2kw,10.2kw)140A(for 7.2kw)
â–²High PV input voltage range(90~ 500VDC)
â–²Built-in anti-dust kit for harsh environment
â–²Smart battery charge design to optimize battery life
â–²Dual output Dual PV input Touch button On Off Grid Work Mode
About the details and price ,feel free to contact with Customer service staff.Click Here.
Product Details

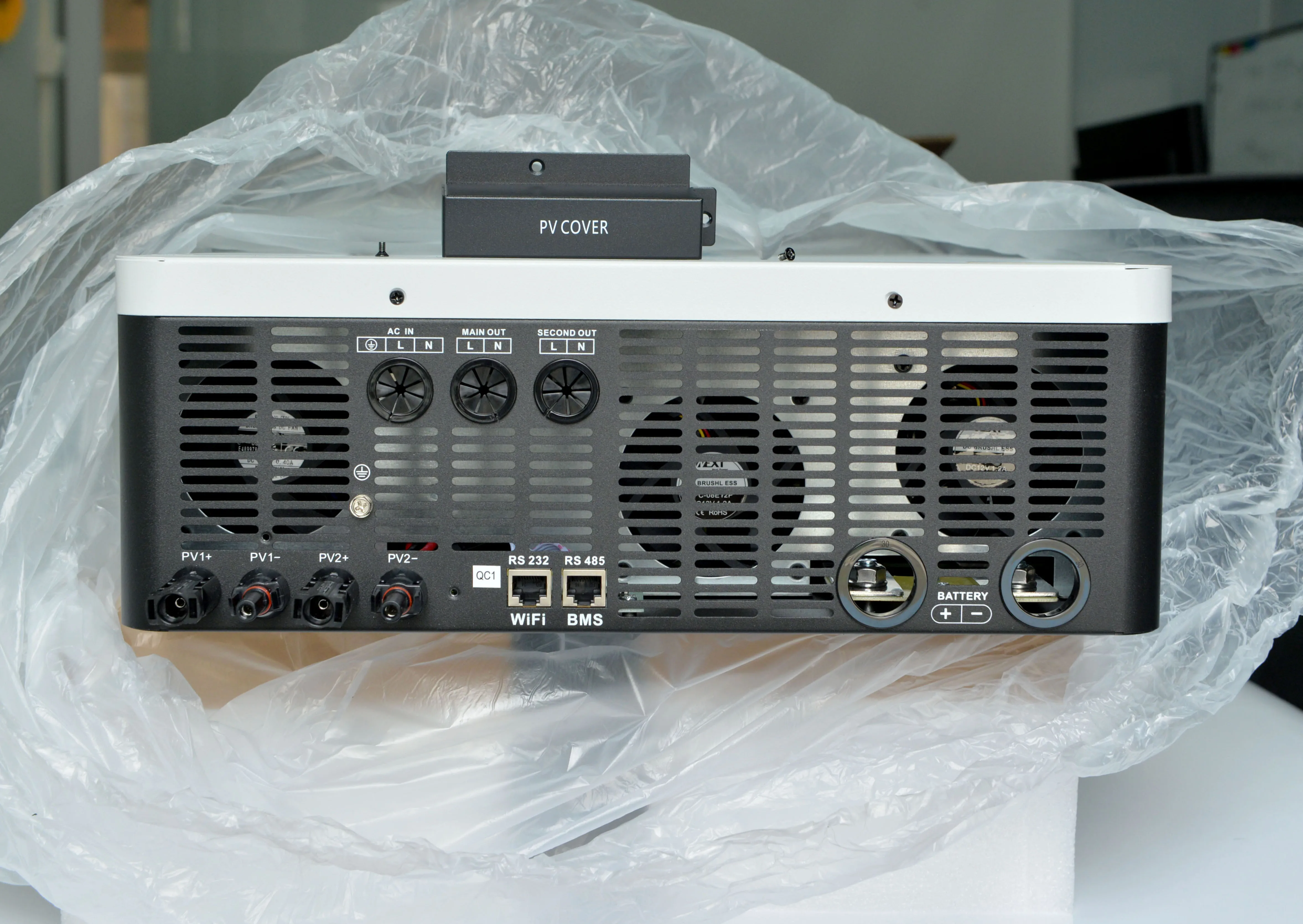

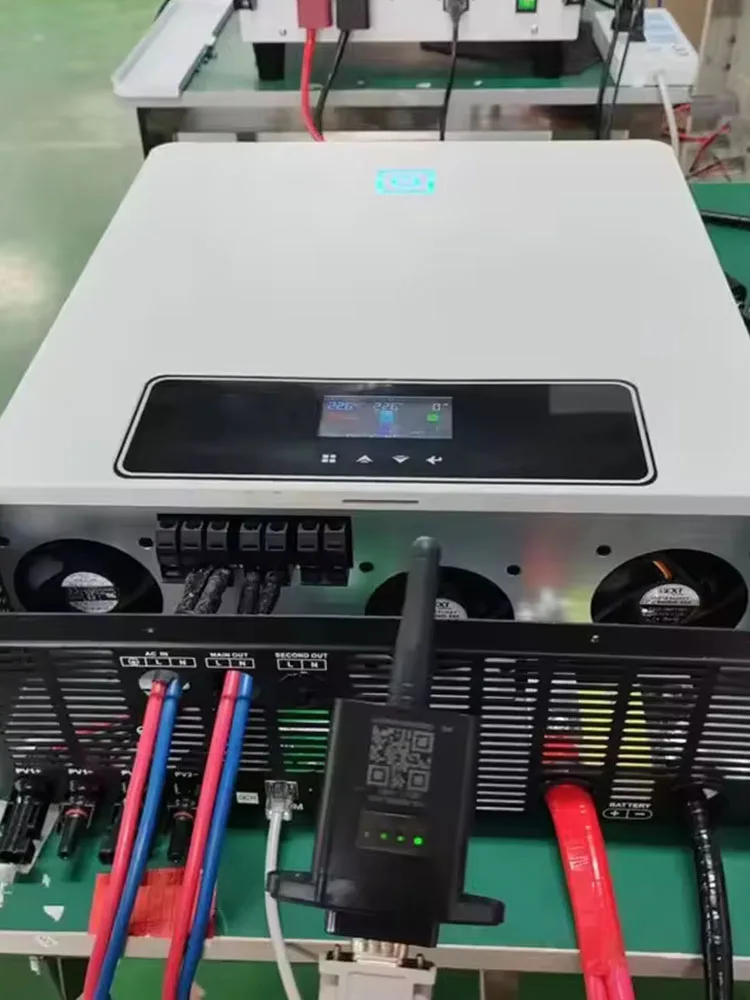

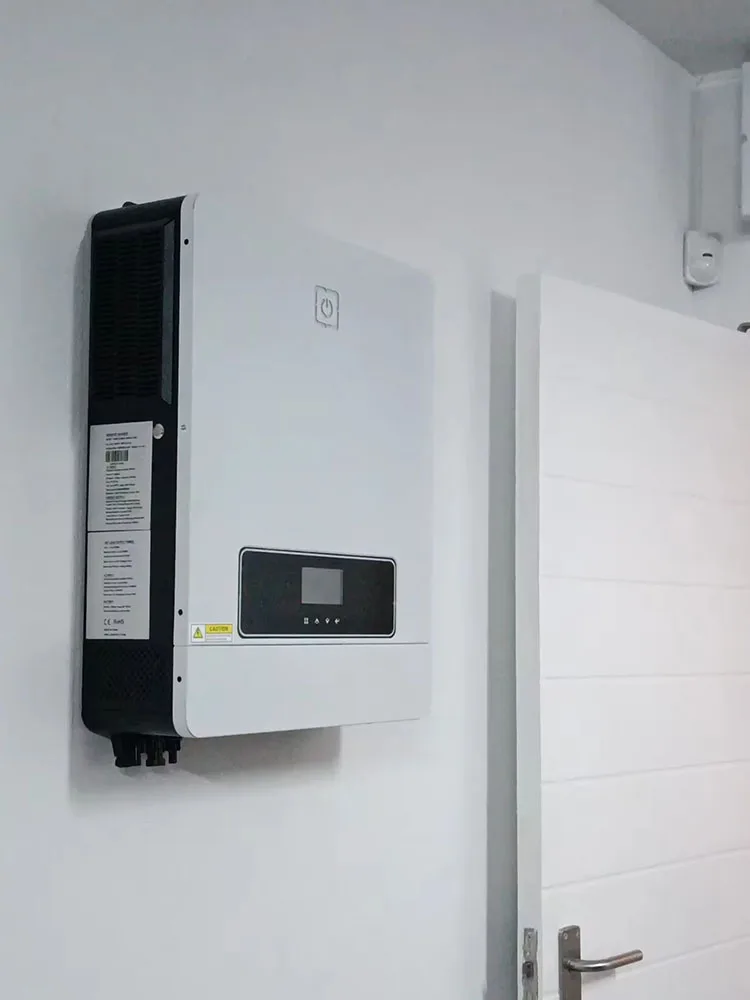

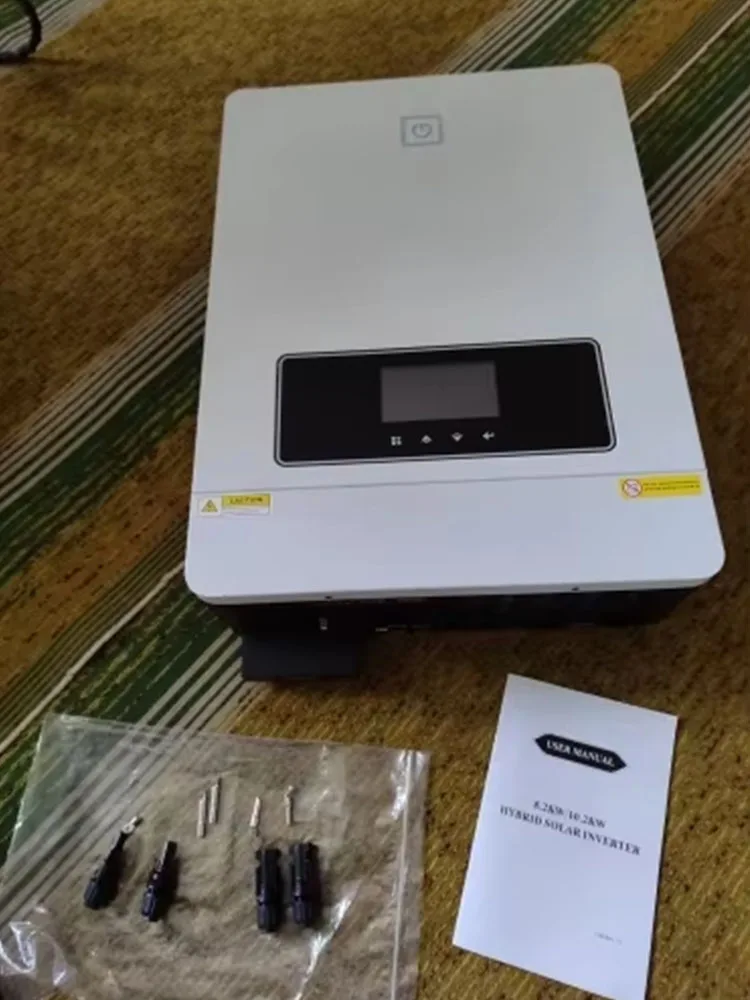

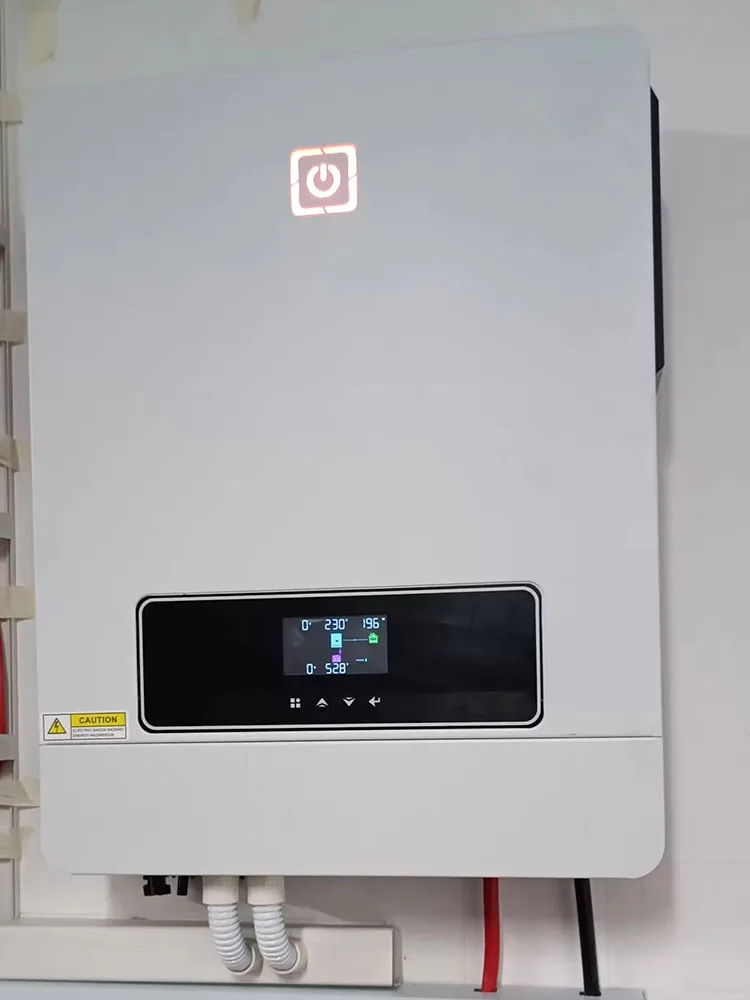

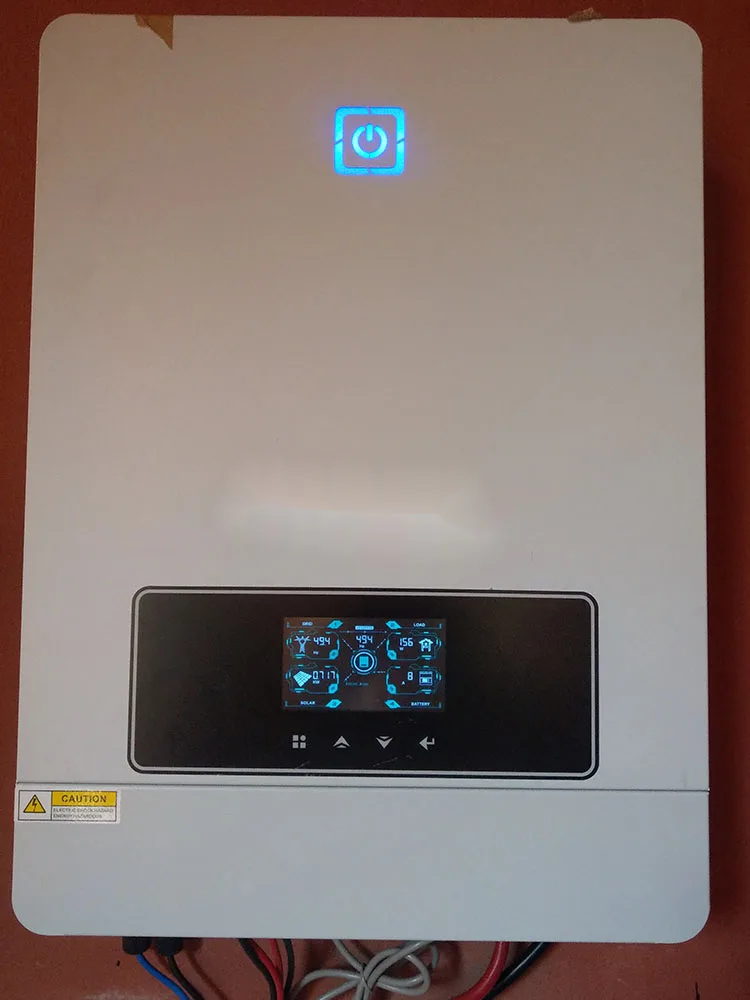

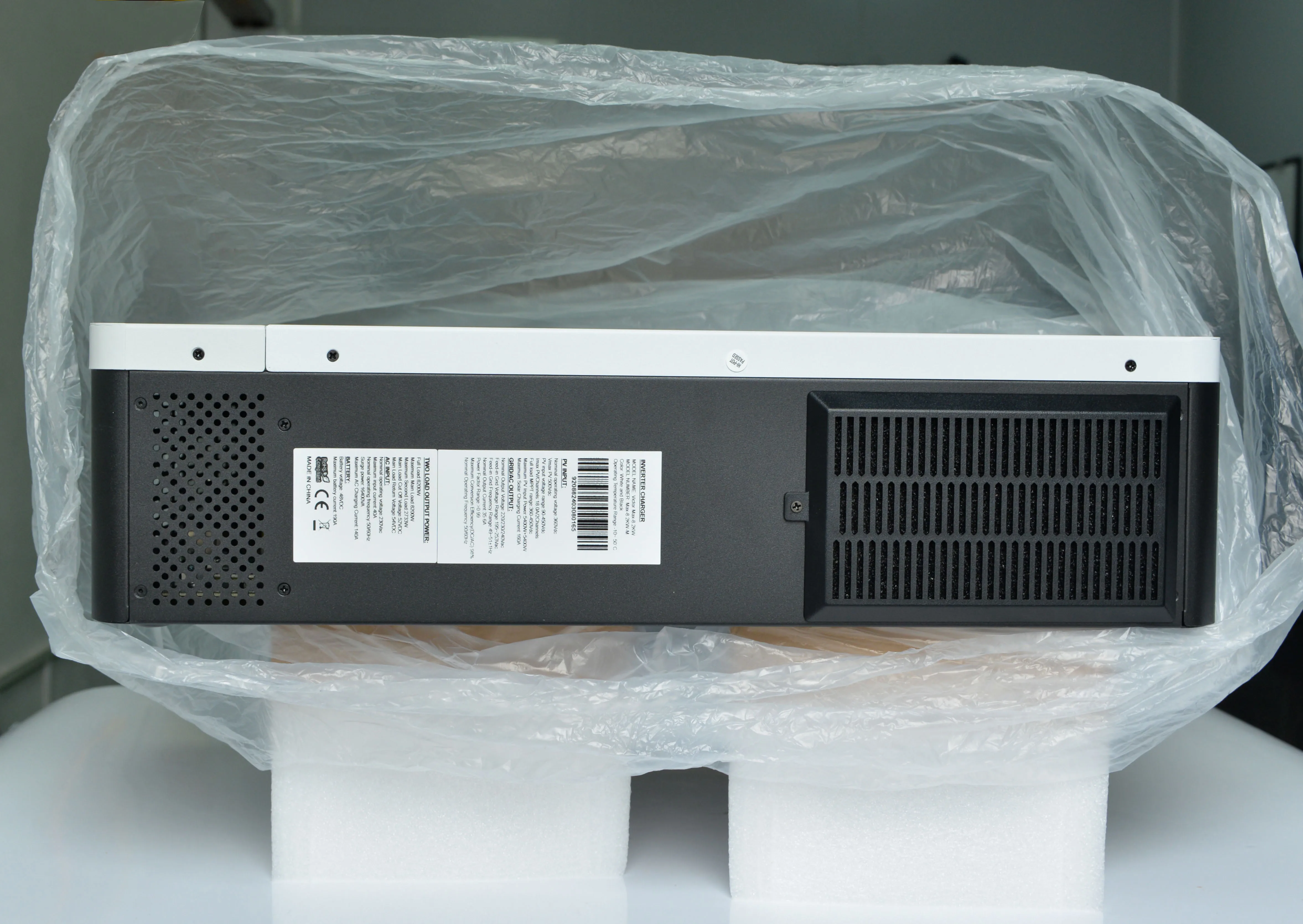

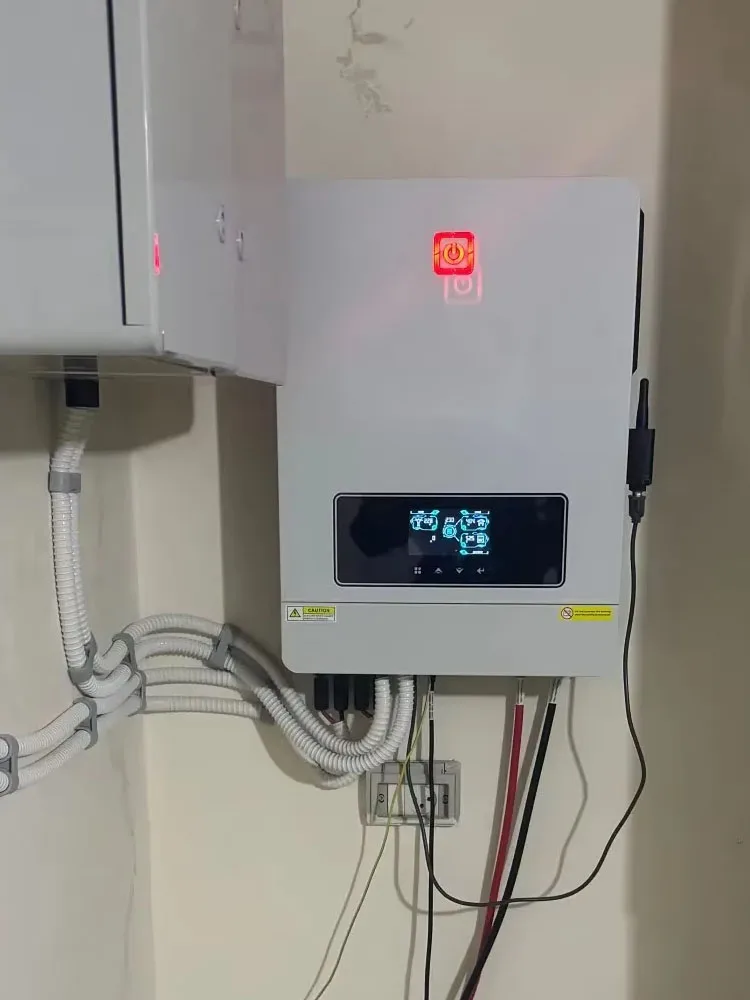

Product Photograph
Product Paramenters
|
MODEL
|
Mass-8.2KW
|
Mass-10.2KW
|
||
|
1-Phase
|
||||
|
Maximum PV Input Power
|
8200W 5400W+5400W
|
10200W 5400W+5400W
|
||
|
Maximum Solar Charging Current
|
8200W/8200VA
|
10200W/10200VA
|
||
|
Maximum Solar Charging Current
|
160A
|
160A
|
||
|
GRID-TIE OPERATION
|
||||
|
PVINPUT(DC)
|
||||
|
Nominal DC Voltage/Maximum DC Voltage
|
360/500VDC
|
|||
|
Start-up Voltage /lnitial Feeding Voltage
|
90VDC/120VDC
|
|||
|
MPPT Voltage Range
|
90~450VDC
|
|||
|
MaximumInput Current
|
1/23A 2/18A
|
1/23A 2/18A
|
||
|
GRID OUTPUT(AC)
|
||||
|
Nominal Output Voltage
|
220/230/240VAC
|
|||
|
Output Voltage Range
|
190~253VDC
|
|||
|
Nominal Output Current
|
35.6A
|
44.3A
|
||
|
Power Factor
|
>0.99
|
|||
|
EFFICIENCY
|
||||
|
Maximum Conversion Efficiency(DC/AC)
|
98%
|
|||
|
TWO LOAD OUTPUT POWER
|
||||
|
Full Load
|
8200W
|
10200W
|
||
|
Maxium Main Load
|
8200W
|
10200W
|
||
|
Maxium Second Load(battery mode)
|
2733W
|
3400W
|
||
|
Maxium Load Cut Off Voltage
|
52VDC
|
52VDC
|
||
|
Maxium Load Return Voltage
|
54VDC
|
54VDC
|
||
|
OFF-GRID OPERATION
|
||||
|
ACINPUT
|
||||
|
AC Start-up Voltage /Auto Restart Voltage
|
120-140VAC/180VAC
|
|||
|
Acceptable Input Voltage Range
|
90-280VAC or 170-280VAC
|
|||
|
Frequency Range
|
40A
|
50A
|
||
|
PVINPUT(DC)
|
||||
|
Nominal DC Voltage/Maximum DC
|
360/500VDC
|
|||
|
MPPT Voltage Range
|
90~450VDC
|
|||
|
Maximum Input Current
|
1/23A 2/18A
|
1/23A 2/18A
|
||
