Product Description

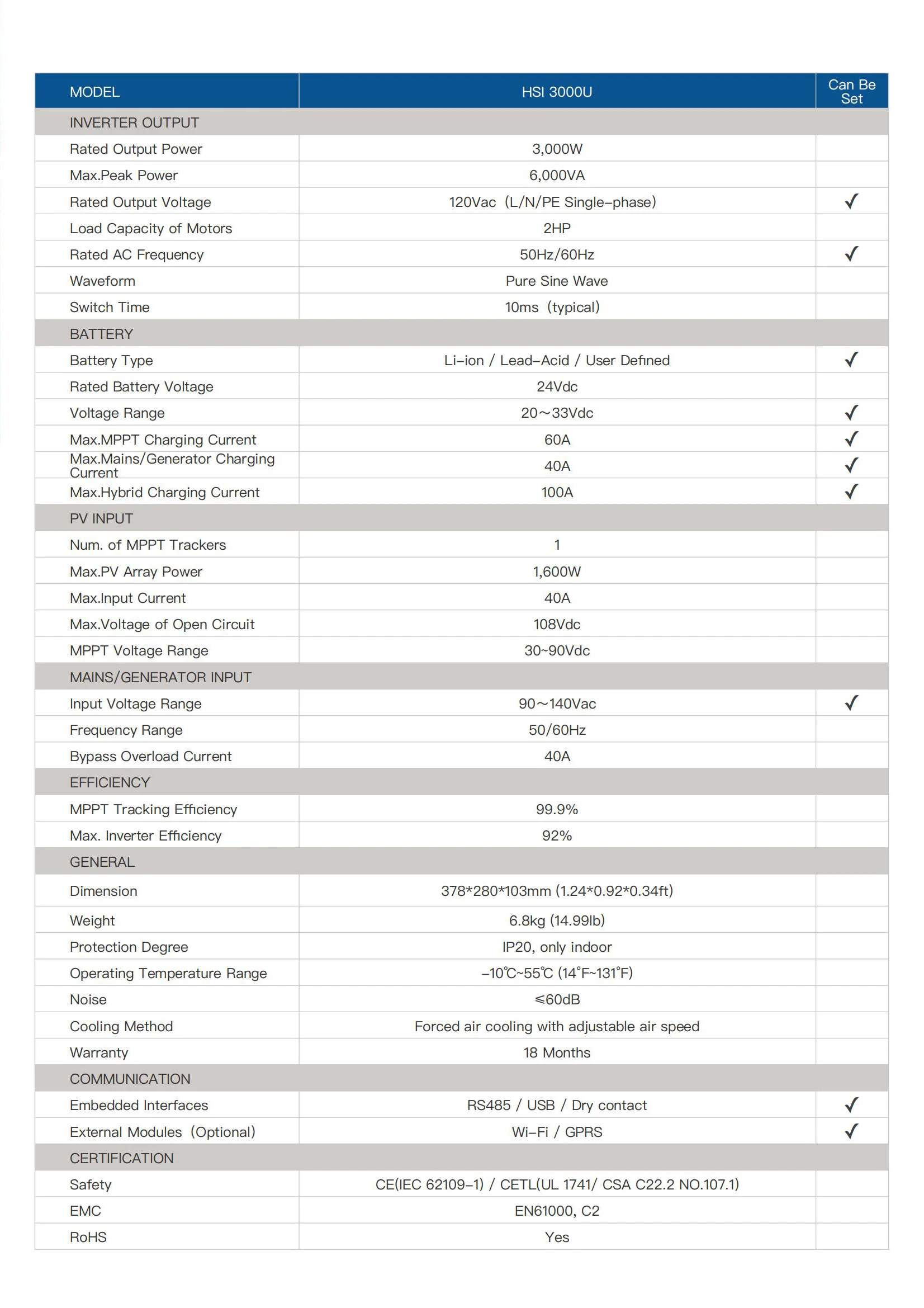

Specifications
|
Model
|
HSI 3000U
|
Can Be Set?
|
|
|
Rated Output Power
|
3,000W
|
/
|
|
|
Max.Peak Power
|
6,000VA
|
/
|
|
|
Rated Output Voltage
|
120Vac（L/N/PE Single-phase）
|
YES
|
|
|
Load Capacity of Motors
|
2HP
|
/
|
|
|
Rated AC Frequency
|
50Hz/60Hz
|
YES
|
|
|
Waveform
|
Pure Sine Wave
|
/
|
|
|
Battery Type
|
Li-ion / Lead-Acid / User Defined
|
YES
|
|
|
Voltage Range
|
20～33Vdc
|
YES
|
|
|
Max.Voltage of Open Circuit
|
108Vdc
|
/
|
|
|
MPPT Voltage Range
|
30~90Vdc
|
/
|
|
|
Dimension
|
378*280*103mm (1.24*0.92*0.34ft)
|
||
|
Weight
|
6.8KG
|
||
