Main Features
▲Pure sine wave solar inverter(on/off Grid)2.Output power factor 1.0
▲WIFI&GPRS available for IOS and Android
▲Inverter can run without battery
▲One-key restoration to factory Settings
▲Built-in Lithium battery automatic activation
▲Built-in 160A MPPT solar charger (for 8.2kw,10.2kw)140A(for 7.2kw)
▲High PV input voltage range(90~ 500VDC)
▲Built-in anti-dust kit for harsh environment
▲Smart battery charge design to optimize battery life

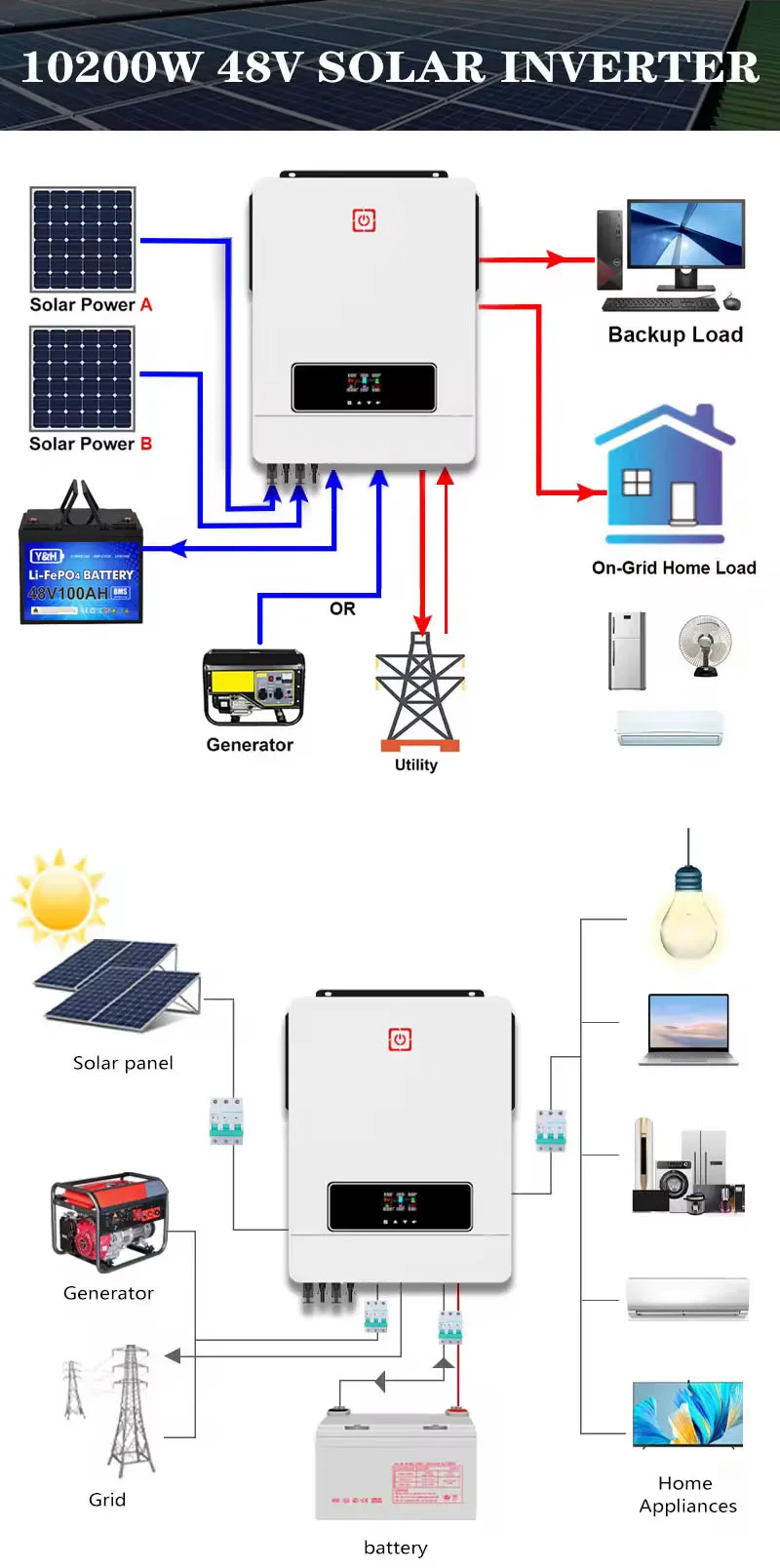

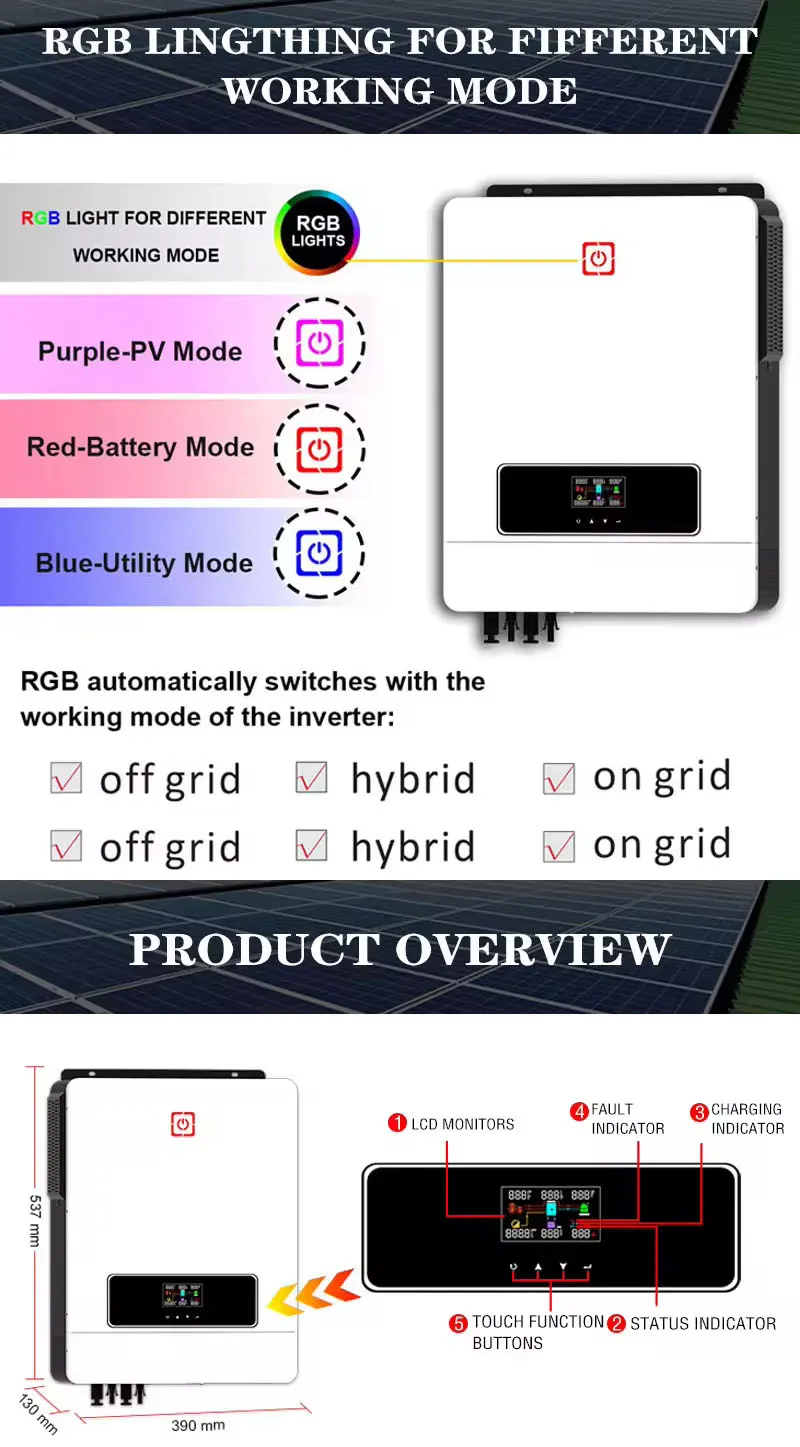

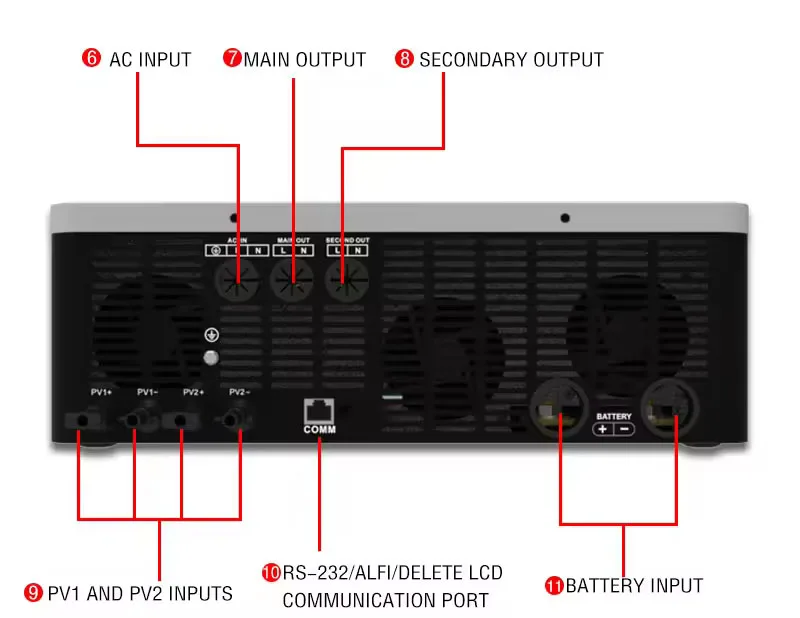

▲Dual output Dual PV input Touch button On Off Grid Work Mode
▲WIFI&GPRS available for IOS and Android
▲Inverter can run without battery
▲One-key restoration to factory Settings
▲Built-in Lithium battery automatic activation
▲Built-in 160A MPPT solar charger (for 8.2kw,10.2kw)140A(for 7.2kw)
▲High PV input voltage range(90~ 500VDC)
▲Built-in anti-dust kit for harsh environment
▲Smart battery charge design to optimize battery life
▲Dual output Dual PV input Touch button On Off Grid Work Mode
About the details and price ,feel free to contact with Customer service staff.Click Here.

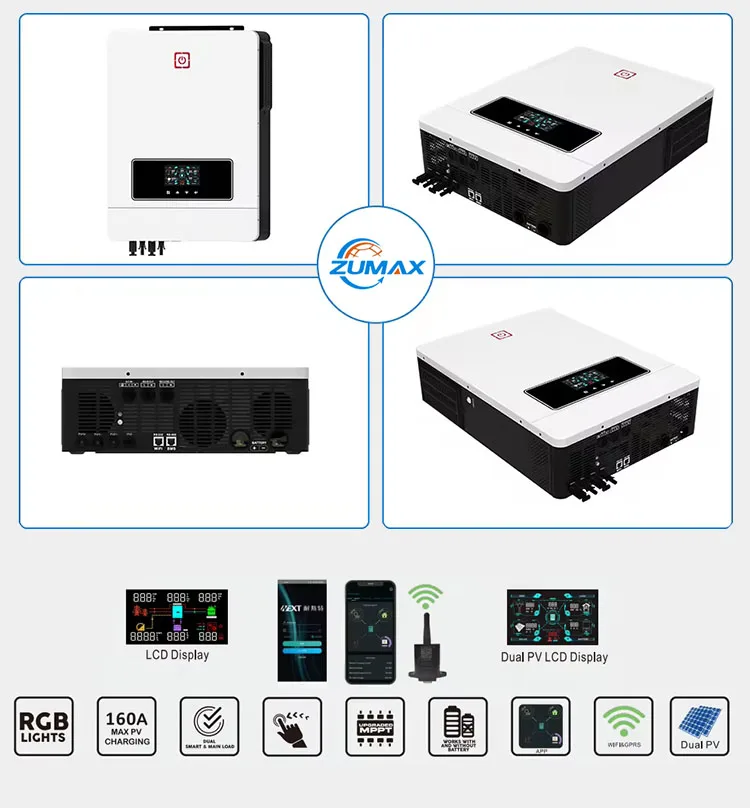

Product Details
Product Paramenters
|
MODEL
|
Mass-7.2KW
|
Mass-8.2KW
|
Mass-10.2KW
|
|||
|
Phase
|
1-phase
|
|||||
|
Maximum PV Input Power
|
8200W
|
8200W 5400W+5400W
|
10200W 5400W+5400W
|
|||
|
Maximum Solar Charging Current
|
7200W/7200VA
|
8200W/8200VA
|
10200W/10200VA
|
|||
|
Maximum Solar Charging Current
|
140A
|
160A
|
160A
|
|||
|
GRID-TIE OPERATION
|
||||||
|
PVINPUT(DC)
|
||||||
|
Nominal DC Voltage/Maximum DC Voltage
|
360/500VDC
|
|||||
|
Start-up Voltage /lnitial Feeding Voltage
|
90VDC/120VDC
|
|||||
|
MPPT Voltage Range
|
90~450VDC
|
|||||
|
MaximumInput Current
|
1/23A
|
1/23A 2/18A
|
1/23A 2/18A
|
|||
|
GRID OUTPUT(AC)
|
||||||
|
Nominal Output Voltage
|
220/230/240VAC
|
|||||
|
Output Voltage Range
|
190~253VDC
|
|||||
|
Nominal Output Current
|
31.3A
|
35.6A
|
44.3A
|
|||
|
Power Factor
|
>0.99
|
|||||
|
EFFICIENCY
|
||||||
|
Maximum Conversion Efficiency(DC/AC)
|
98%
|
|||||
|
TWO LOAD OUTPUT POWER
|
||||||
|
Full Load
|
7200W
|
8200W
|
10200W
|
|||
|
Maxium Main Load
|
7200W
|
8200W
|
10200W
|
|||
|
Maxium Second Load(battery mode)
|
2400W
|
2733W
|
3400W
|
|||
|
Maxium Load Cut Off Voltage
|
52VDC
|
52VDC
|
52VDC
|
|||
|
Maxium Load Return Voltage
|
54VDC
|
54VDC
|
54VDC
|
|||
|
OFF-GRID OPERATION
|
||||||
|
ACINPUT
|
||||||
|
AC Start-up Voltage /Auto Restart Voltage
|
120-140VAC/180VAC
|
|||||
|
Acceptable Input Voltage Range
|
90-280VAC or 170-280VAC
|
|||||
|
Frequency Range
|
40A
|
40A
|
50A
|
|||
|
PVINPUT(DC)
|
||||||
|
Nominal DC Voltage/Maximum DC
|
360/500VDC
|
|||||
|
MPPT Voltage Range
|
90~450VDC
|
|||||
|
Maximum Input Current
|
1/23A
|
1/23A 2/18A
|
1/23A 2/18A
|
|||
