Main Functions
Specification
|

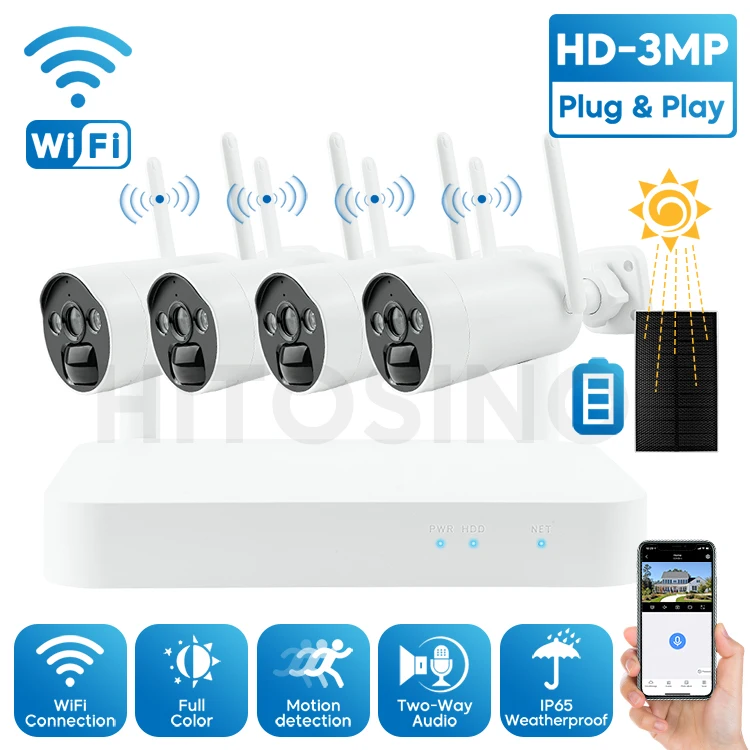

Wireless NVR
|
||||
|
Model
|
K8508-W
|
|||
|
Video and audio
input |
Network audio and video input
|
8ch
|
||
|
Video and audio output |
HDMI output
|
1ch，resolution: 1024×768, 1280×1024, 1366×768, 1440×900, 1920x1080p, support audio output
|
||
|
Video coding standard
|
H.264，H.265
|
|||
|
Audio coding standard
|
G711A
|
|||
|
Video and Audio codec Parameters
|
Video resolution
|
5MP/3MP/1080P/720P
|
||
|
Synchronous Playback
|
3MP@4ch / 5MP@2ch
|
|||
|
Video Management
|
Video mode
|
Timed recording、event recording
|
||
|
Playback mode |
Timed playback, event playback，Smart playback（SD card does not support smart playback）
|
|||
|
Backup method
|
U disk backup
|
|||
|
Storage
|
Maximum support capacity of 6TB hard disk / maximum support of 256G capacity SD card / cloud storage
|
|||
|
wireless standard
|
Wi-Fi 2.4G(IEEE802.11b/g/n)
|
|||
|
Hard Disk Drive
|

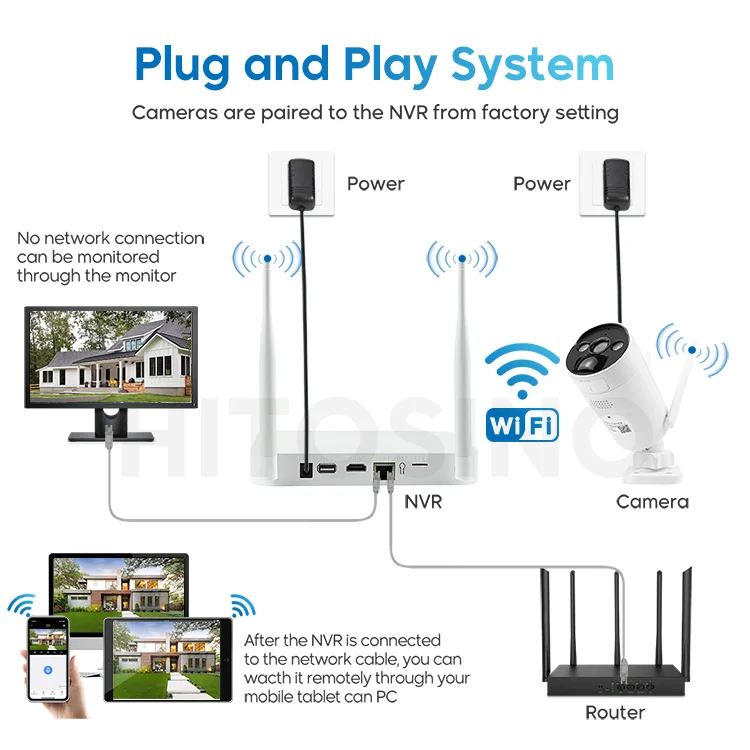

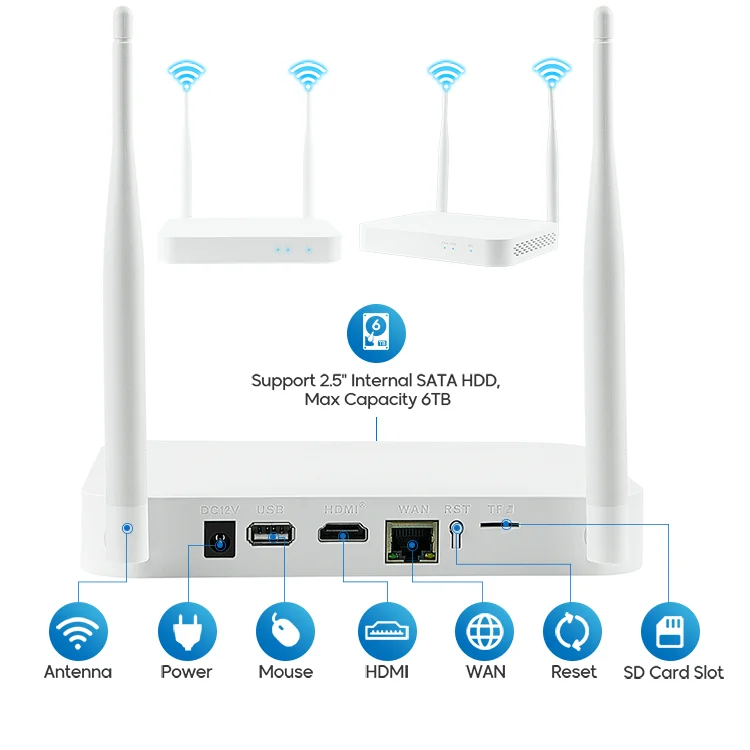

Network Interface |
1 RJ45 10M/100M adaptive Ethernet port, built-in wireless Internet access function
|
||
|
USB interface
|
1 USB 2.0 interface
|
|||
|
Audio port
|
Built-in speaker
|
|||
|
Recording light
|
1 recording light, indicate the recording status
|
|||
|
Network light
|
1 network light, indicate P2P status
|
|||
|
Button
|
1 reset button
|
|||
|
Power Supply
|
DC 12V2A
|
|||
|

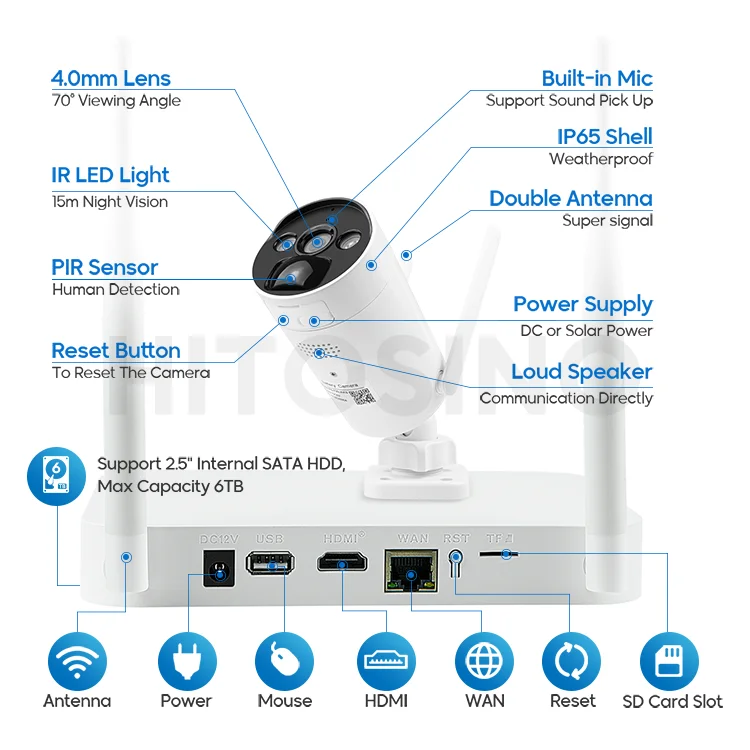

Wireless IPC
|
||
|
Model
|
BK23-W
|
|
|
Pixel
|
3MP
|
|
|
Resolution
|
2304×1296 16:9 high resolution
|
|
|
Lens
|
4mm
|
|
|
Video Compression Standard
|
H.264，H.265
|
|
|
Audio
|
Build in Mic and Speaker，G711
|
|
|
Stream Specifications
|
Dual stream 2304×1296@15fps 640×360@15fps
|
|
|
Infrared Distance
|
15M
|
|
|
Wireless standard
|
Wi-Fi 2.4G(IEEE802.11b/g/n)
|
|
|

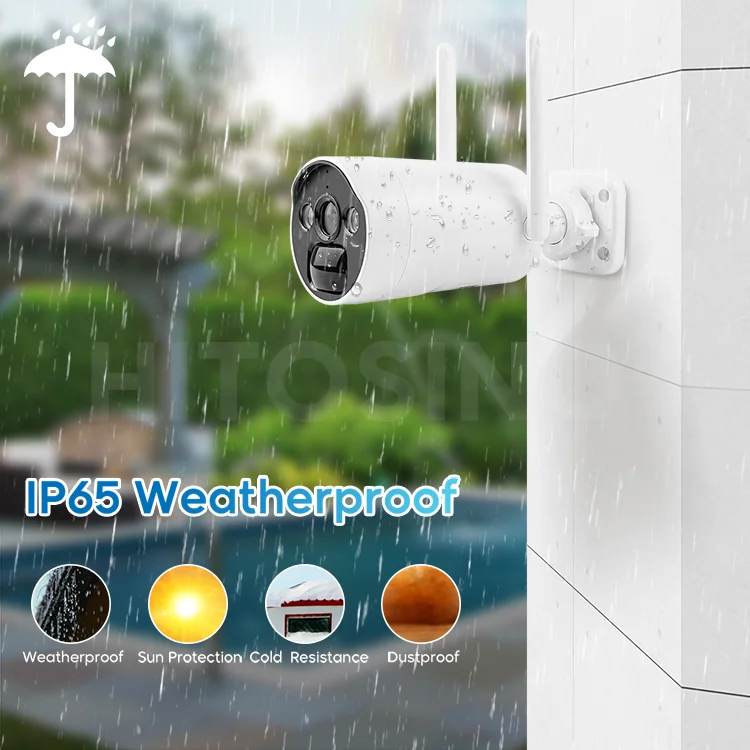

IP Rating
|
IP65
|
|
|
Battery
|
Built-in two 21700 rechargeable lithium batteries, 9000mAH
|
|
|
Power supply
|
DC5V1A or Connect to 4.5V ~ 7.5V solar panel
|
|
|

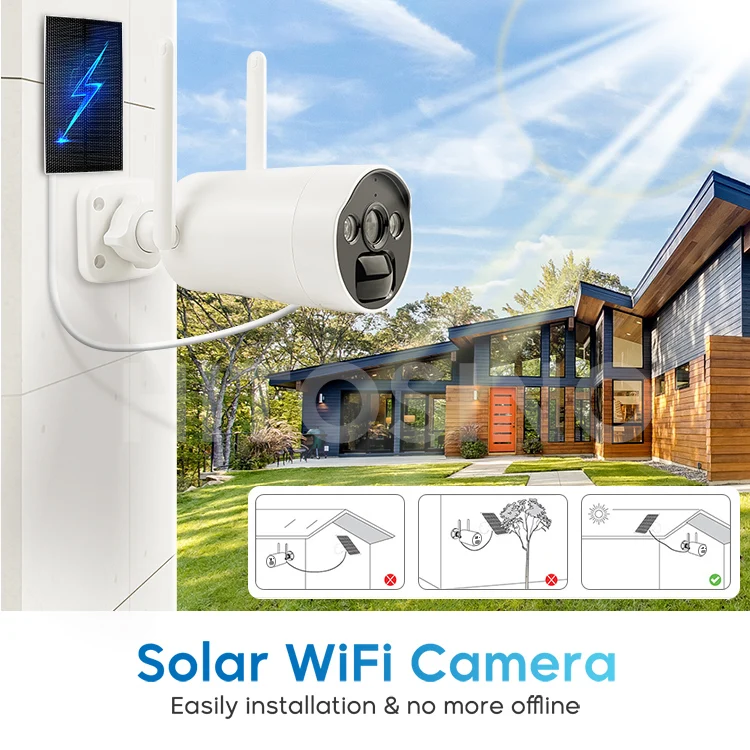

Solar panel
|
1.6W/6.5V with 3m TypeC cable
|
|
