Products Description
|
Electrical
Characteristics |
Nominal Voltage
|
12.8V
|
|
Nominal Capacity
|
||
|
Energy
|
1280Wh
|
|
|
Internal Resistance
|
≤50mΩ
|
|
|
Cycle Life
|
6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
|
|
|
Self Discharge
|
≤3.5% per month at 25℃
|
|
|
Standard Charging
|
Max.Charging Voltage
|
14.0~14.6V
|
|
Charging Mode
|
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and
then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C |
|
|
Charging Current
|
50A
|
|
|
Max.Charging Current
|
50A
|
|
|
Standard Discharging
|
Discharging Current
|
100A
|
|
Max. Continuous Current
|
100A
|
|
|
Max.Pulse Current
|
200A(<3S）
|
|
|
Discharging Cut-off Voltage
|
10.0
|
|
|
Operating Condition
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
Discharge Temperature
|
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
|
|
|
Storage Temperature
|
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
|
|
|
Water Dust Resistance
|
IP55
|
|
|
Structure
|
Cell & Format
|
IFR32700 N65; 4S17P or 4S1P; Cylindric or prismatic; Have a choose
|
|
Casing
|
Plastic
|
|
|

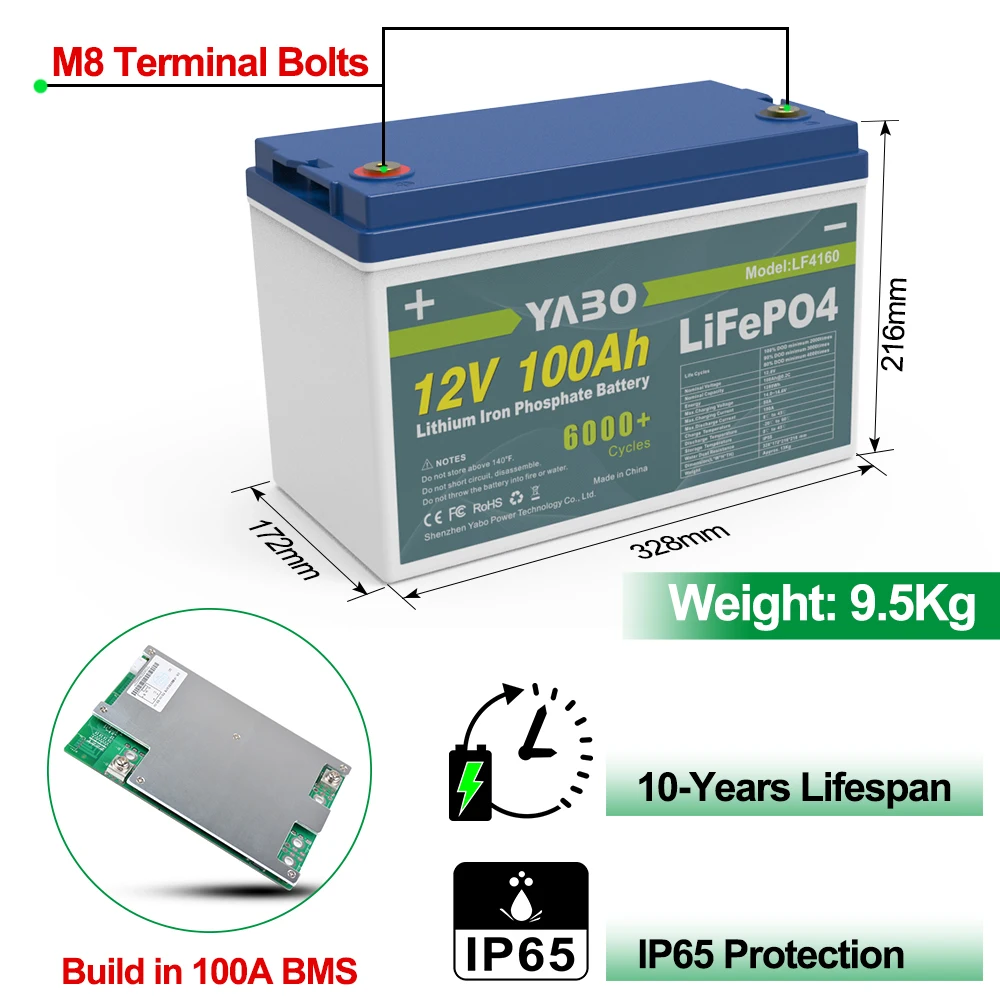

Dimension(L*W*H*TH)
|
328*172*216*216mm
|
|
|
Package Dimension
|
398*243*295mm
|
|
|
Weight
|
Approx. 9.6Kg
|
|
|
Terminal
|
M8
|

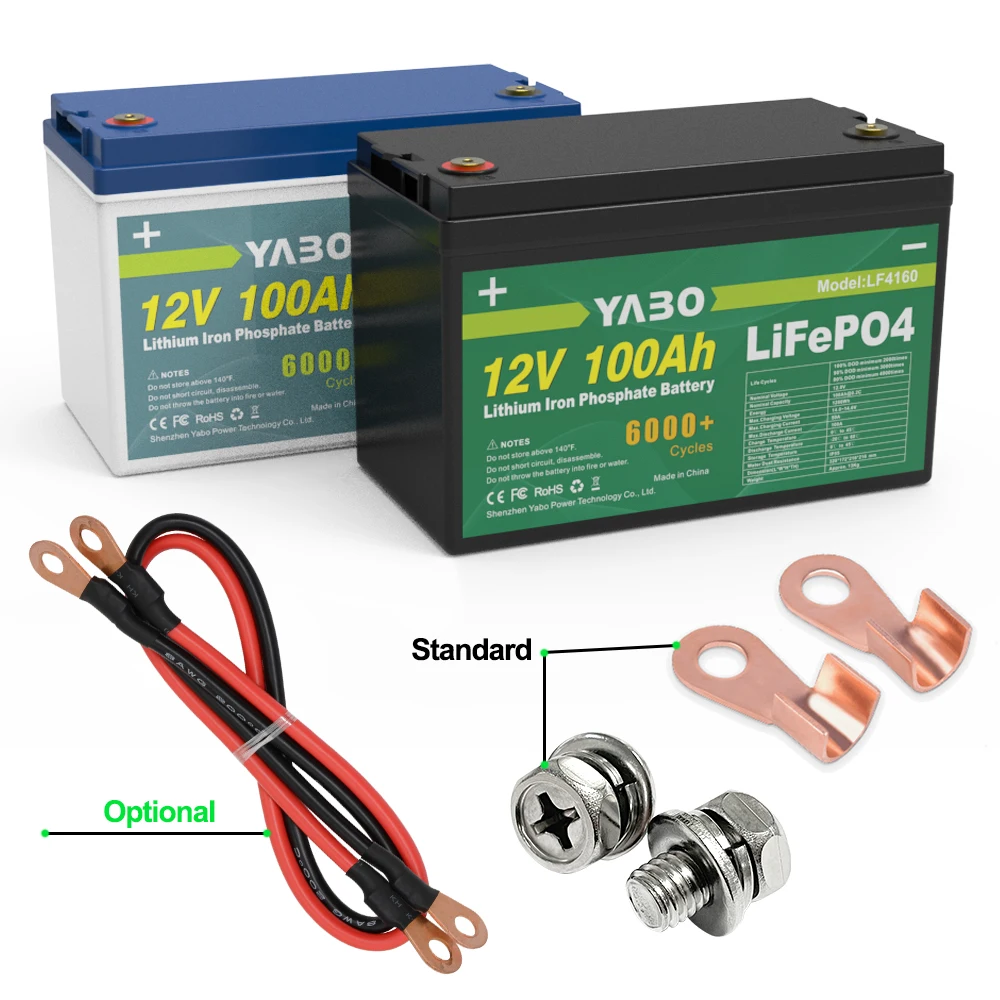

Details Images
Application

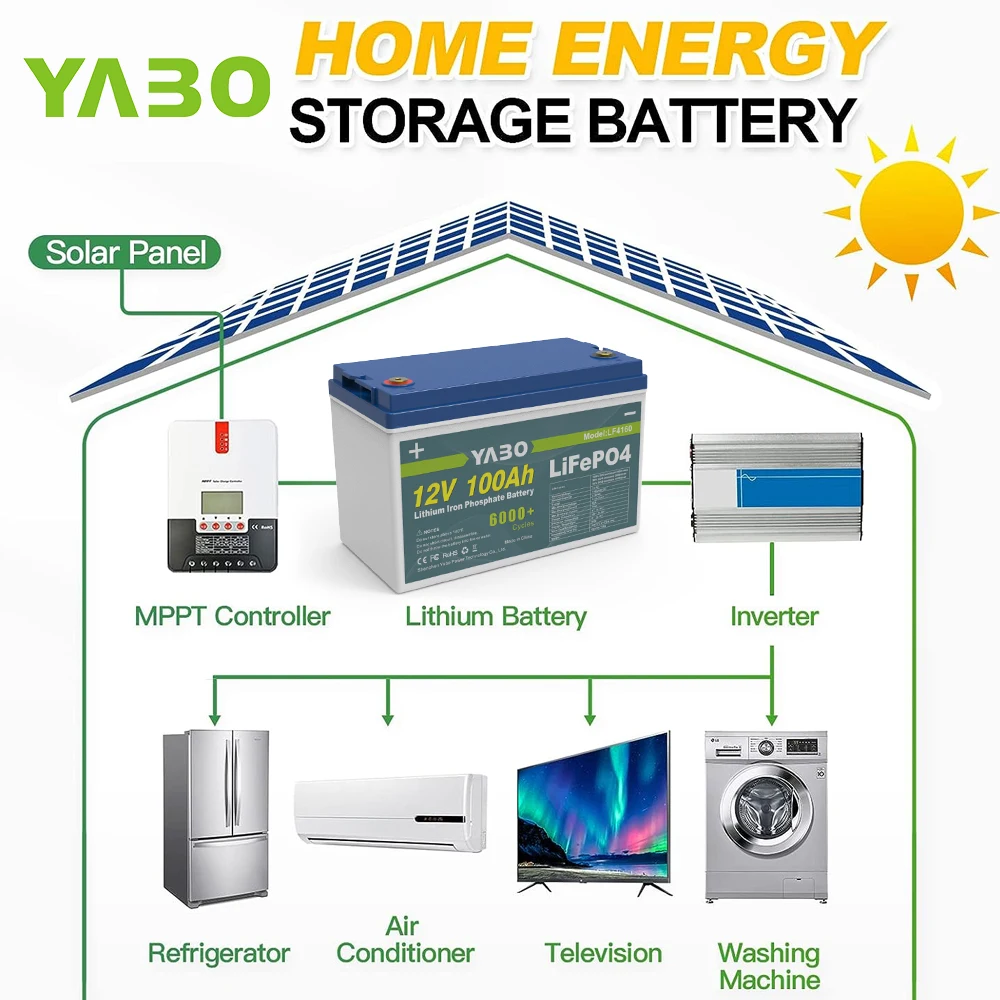

â—† UPS â—† Solar & Wind Power System â—† Golf Cart â—† Electric Vehicle , E-bike, E-rickshaw etc. â—† Lighting
Advantage
Custom
