Product Description
|
Model.
|
Solar Battery PTZ camera TQ2-GK4
|
||
|
Processor.
|
Dual-core 32-bit DSP (GK7202V300), pure hard compression, watchdog.
|
||
|
Sensor.
|
4 million 1 / 3 “low Illuminance CMOS Sensor.
|
||
|
Minimum illuminance.
|
Color: 0.01Lux @ (F1.2 Lux with IR AGC ON); 0 color.
Black and white: 0.001 Lux @ (F1.2 Lux with IR), 0 Lux with IR |
||
|
Lens.
|
4mm 5MP F1.4 horizontal vision 87 °, diagonal 104 °.
|
||
|
Image output.
|
Main stream: 2560*1440@12fps; sub-stream: 800*448@12fps.
|
||
|
Shutter.
|
1max 50 (1max 60) seconds to 1max 10000 seconds.
|
||
|
Noise reduction.
|
Support 2D/3D noise reduction.
|
||
|
Wide dynamic.
|
Support for digital width dynamics.
|
||
|
Night light pattern.
|
Lattice 4 infrared black and white night vision / lattice 4 warm night vision full color [manual switch].
|
||
|
Infrared radiation distance.
|
Within 0-30 meters.
|
||
|
WiFi module.
|
Hi3861
|
||
|
Antenna interface.
|
1 WIFI antenna to support wireless network connection.
|
||
|
Reset key interface.
|
Support for one-button reset.
|
||
|
Storage mode.
|
Cloud storage function, free for 30 days; local Micro SD card (supports 8-128G).
|
||
|
Reliability.
|
Comprehensive lightning protection, in line with national and international standards; 7-24-hour high temperature test at 65 ℃ is
stable and reliable (including machine test). |
||
|
Intelligent analysis.
|
Support PIR human body induction, custom voice alarm; intelligent dual-light humanoid recognition alarm
|
||
|
Monitoring head.
|

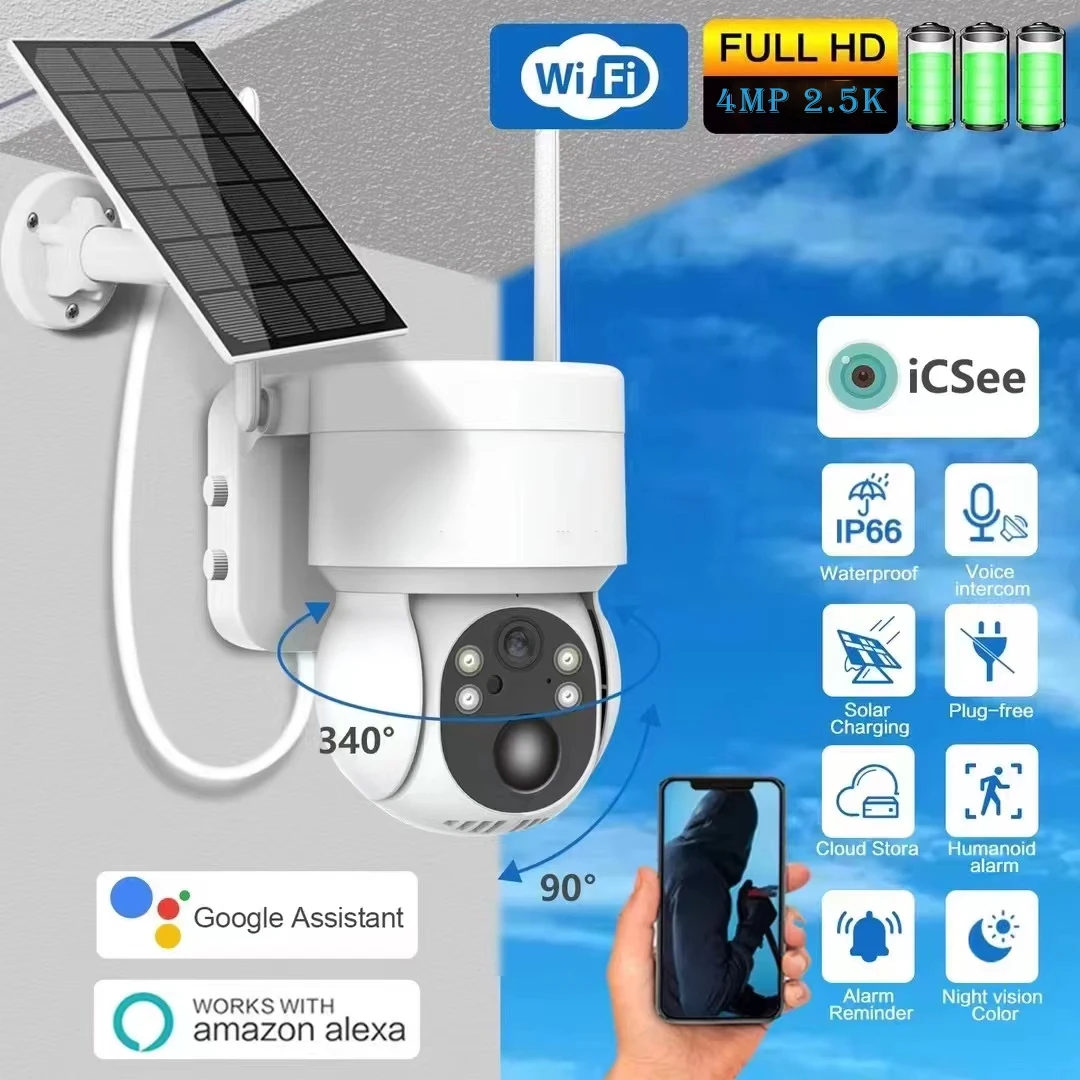

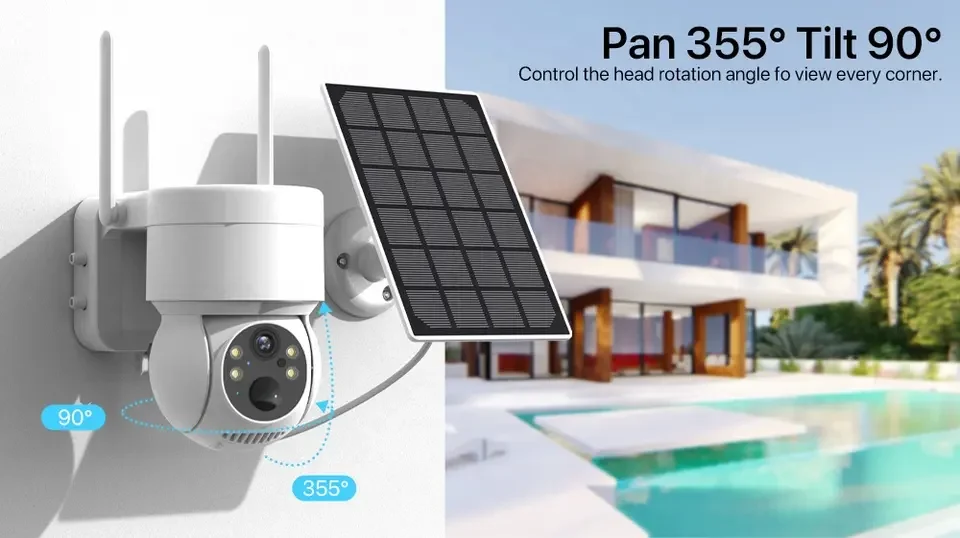

Rotate 320 °left and right, 90 °up and down.
|
||
|
Frequency range.
|
2.4 GHz ~ 2.4835 GHz.
|
||
|
Client.
|
Computer VMS/ web page web. (Not suggested)
|
||
|
ONVIF.
|
Not supported.
|
||
|
Mobile phone monitoring.
|
Support for mobile monitoring (iOS,Android).
|
||
|
Power source.
|

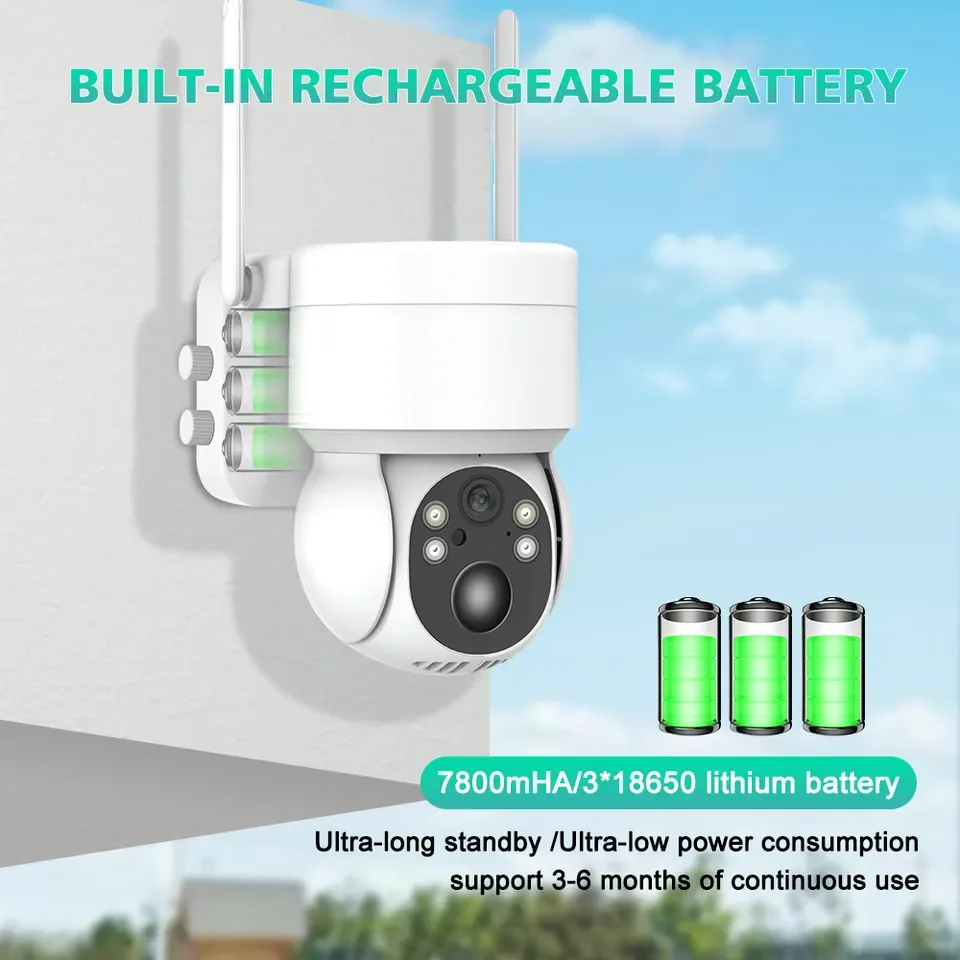

DC5V ±10% / 18650 lithium battery * 3/7800mHA [removable battery group].
|
||
|
Charging mode.
|
External solar panel 5V Type-c interface can be equipped with 3.7W solar panel.
|
||
|
Power consumption.
|
Dormant 700uA, voltage 4.2 V, normal preview 200-250mA.
|
||
|

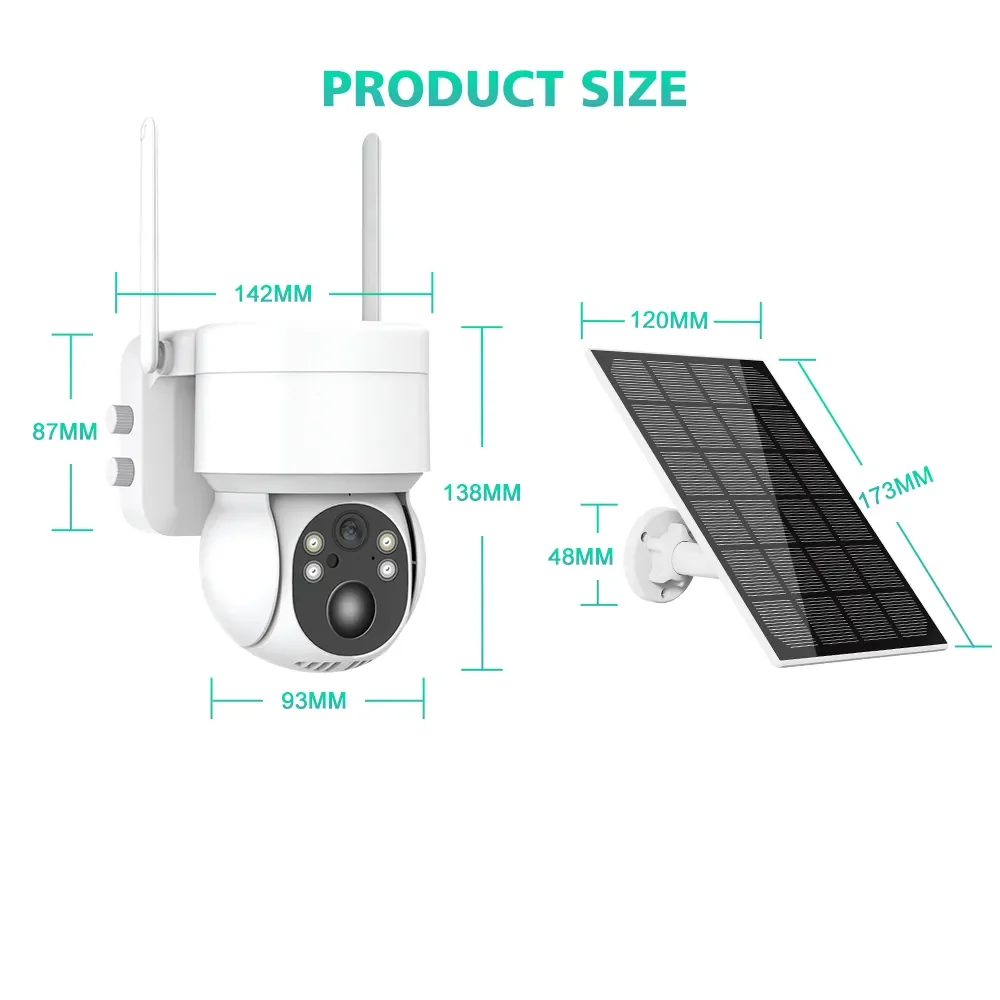

Product size.
|
2 inch
|
||
|
Color box size.
|
192*160*122mm
|
||
|
Temperature and humidity.
|
Minus 20 ℃-60 ℃, humidity less than 90% [no condensation].
|
||
|
Weight of accessories.
|
18650Universe 3: 0.137kg*3 solar panels: 0.232kg.
|
||
|
Product weight
|
Net weight: 0.465kg gross weight [with battery]: 1.056kg (Note: actual product)
|
||
Product Details
Highlights
* The resolution is 4.0m and the image is clear and delicate. * PIR somatosensory is supported. * Can be built into 3 18650 lithium batteries. * APP remote Wake up is supported. * Support day-to-night conversion. * Powered by DC5V, supported by solar power (external solar power panel is required). * WIFI network connection is supported. * Audio supports 2D/3D noise reduction and digital wide dynamic. * Advanced H.265X video compression technology, ultra-low bit rate, high definition picture quality. * Lightning protection, in line with the national standard GB/T17626.5, the international standard IEC61000-4-5. * Mobile monitoring (iOS,android) is supported. * support a variety of cloud technologies, achieve network penetration, push alarm messages to mobile phones and other functions.
