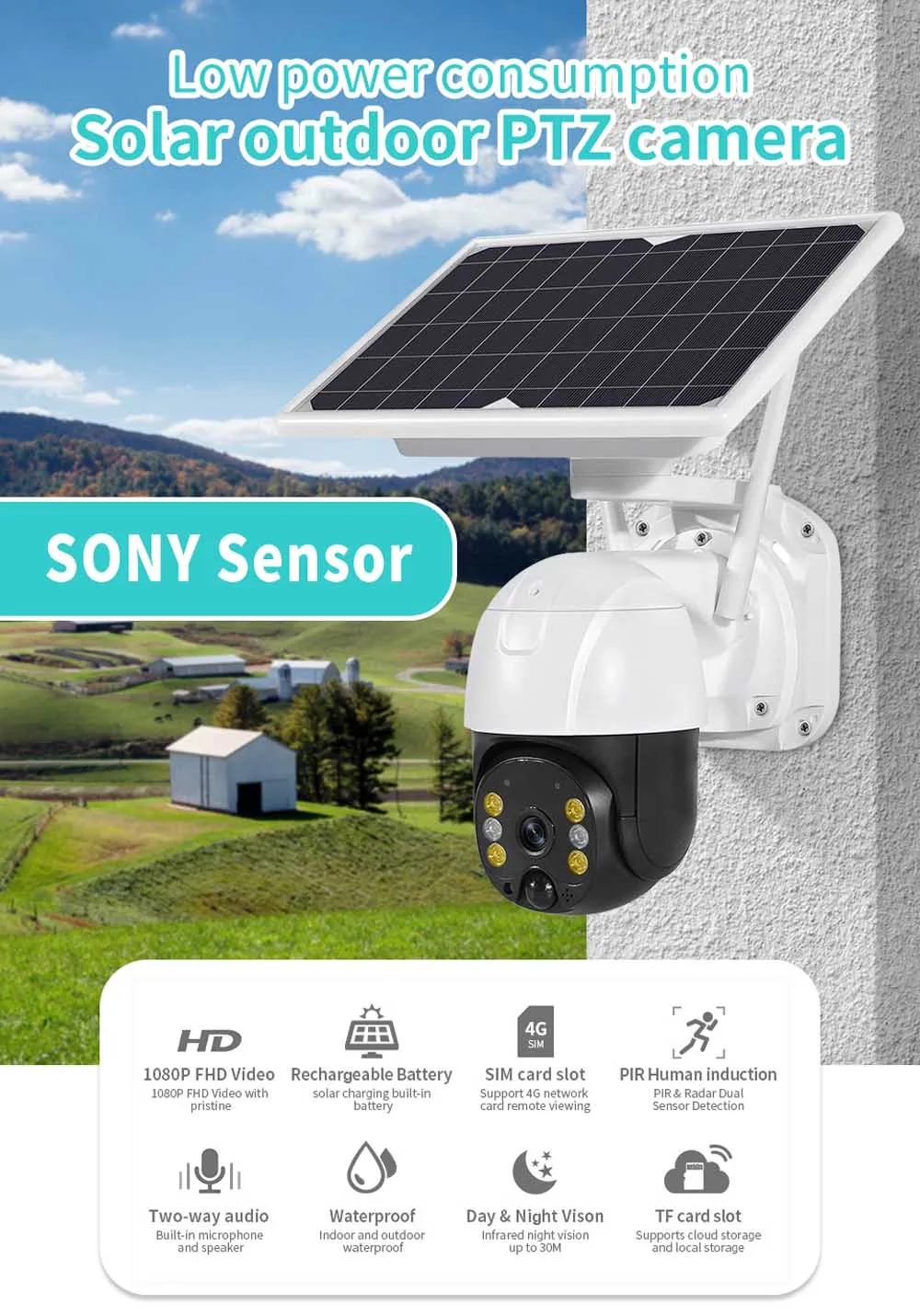

ICSEE APPSolar 4G PTZ Camera

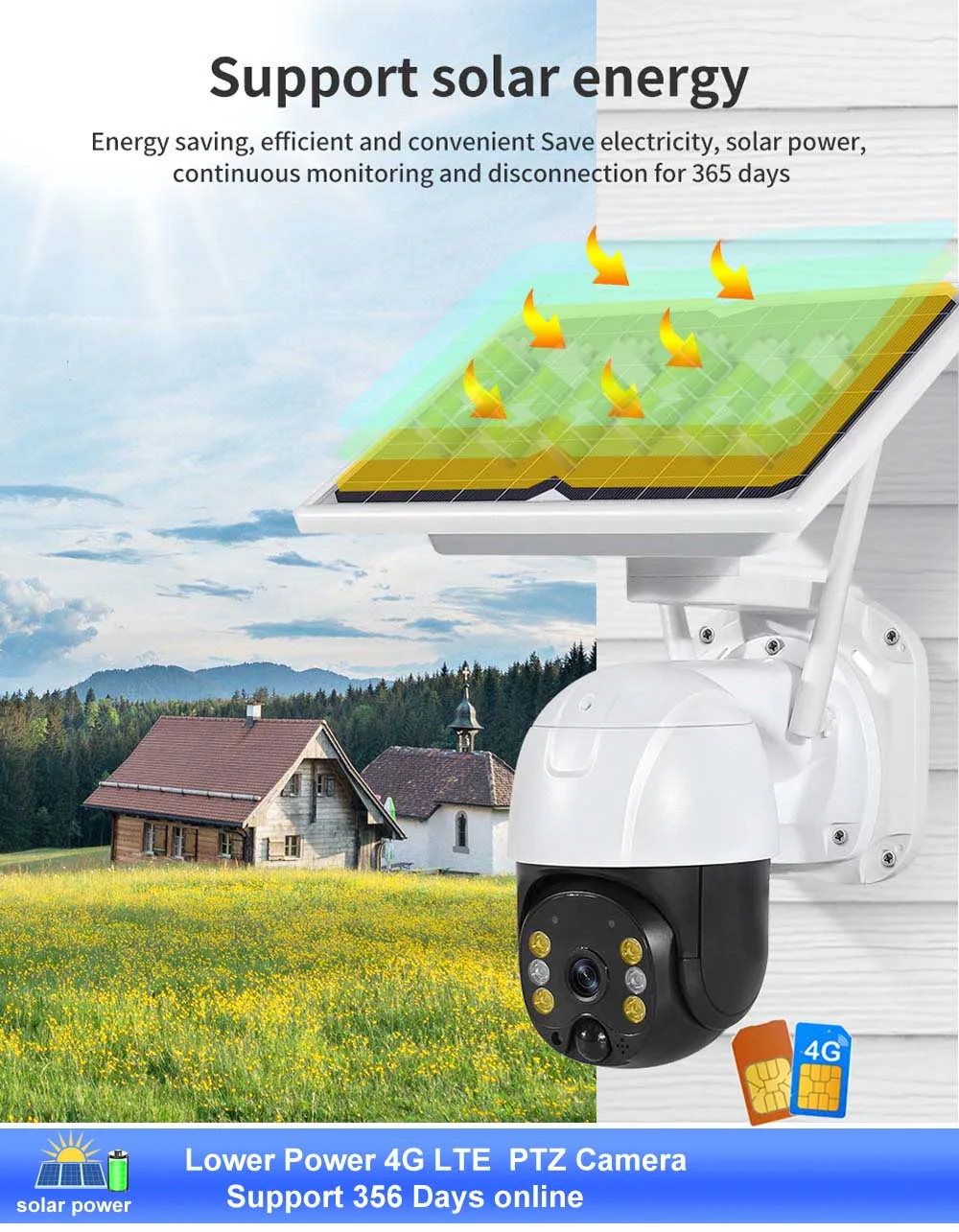

7.6W Solar adjustable panel , use with 4pcs 18650 lithium battery
Combine with 24H and low power·switch freely·Never turn off，Quick wake up in 0.2 seconds
PIR and microwave alarm，Accurate detection alarm, and real-time control of abnormal alarm
Build in microphone and loudspeaker,support two way audio
Use ICSEE APP support Android/IOS
IP66 waterproof，not affected by rain and snow
Support 3G/4G SIM Card
Specification
|
Model No.
|
ED2-4G
|
||
|
General
|
Main processor
|
Dual-core 32-bit DSP（XM650Ai）
|
|
|
Operation System
|
Android, IOS
|
||
|
Image Senor
|
1/2.8″ IMX307 black light CM0S
|
||
|
Compression
|
H.265X
|
||
|
Resolution
|
4MP
|
||
|
Internet connection
|
4G
|
TD-LTE,TD-LTE
|
|
|
4G module mode
|
China vision /Europe vision (add 10USD)
|
||
|
Alarm
|
Detection Mode
|
PIR& microwave
|
|
|
Detection Distance
|
0-12M
|
||
|
Detection Angle
|
95°
|
||
|
Alarm
|
Message push to APP
|
||
|
PTZ
|
PTZ Angle
|
Horizontal 365 ° Vertical 100°
|
|
|
speed
|
Horizontal 55°/S Vertical 40°/S
|
||
|
Night Vision
|
Full color night vision
|
0.00001LUX
|
|
|
IR LED
|
infrared LED 30M IR distance
|
||
|
White light LED
|
white light LED 30M distance
|
||
|
Audio
|
Built-in speaker
|
3W
|
|
|
Built-in microphone
|
voice monitoring distance 20M
|
||
|
Lens
|
Lens
|
F1.4（6MM）
|
|
|
Lens Angle
|
95°
|
||
|
Storage
|
Cloud Storage
|
storage when alarm recording
|
|
|
Local Storage
|
TF Card Max 128G
|
||
|
Power
|
Power
|
Solar energy and 18650# battery
|
|
|
Solar panel material
|
imbrication
|
||
|
Solar Energy consumption
|
7.6W
|
||
|
Battery Capacity
|
Max 4pcs 18650 battery (4*3000MA=12000MA)
|
||
|
Operating power consumption
|
Max 4W
|
||
|
Standby consumption
|
0.003W
|
||
|
Others
|
Working Environment
|
indoor/outdoor
|
|
|
Operation Temperature
|
-30°~+60°
|
||
|
Humidity
|
0%~90%RH
|
||
|
Package
|
N.W.
|
1.95KG/PCS
|
|
|
Giftbox size
|
270*200*180 MM
|
||
|
Quantity in carton
|
6PCS
|
||
|
G.W.
|
12.5KG/CTN
|
||
|
Carton size
|
62.5*28*36.5CM
|
||
Products Description
