EASUN Voltronic Axpert Max 11kw 48V Two MPPT Charger 150A PV Input 500vdc Dual Output 11000w Hybrid Solar Inverter 10KW for Home

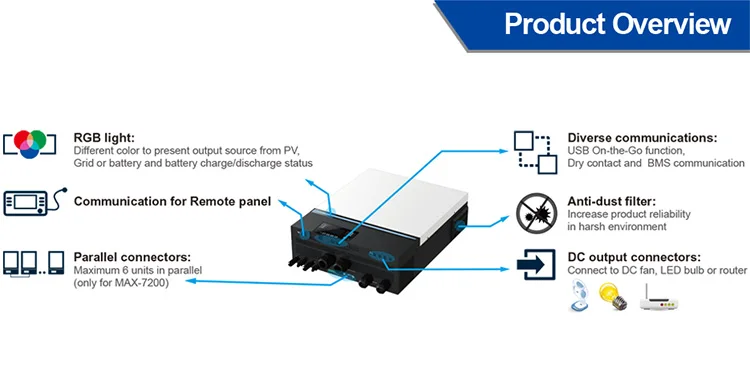

Product Main Features
Main Features:

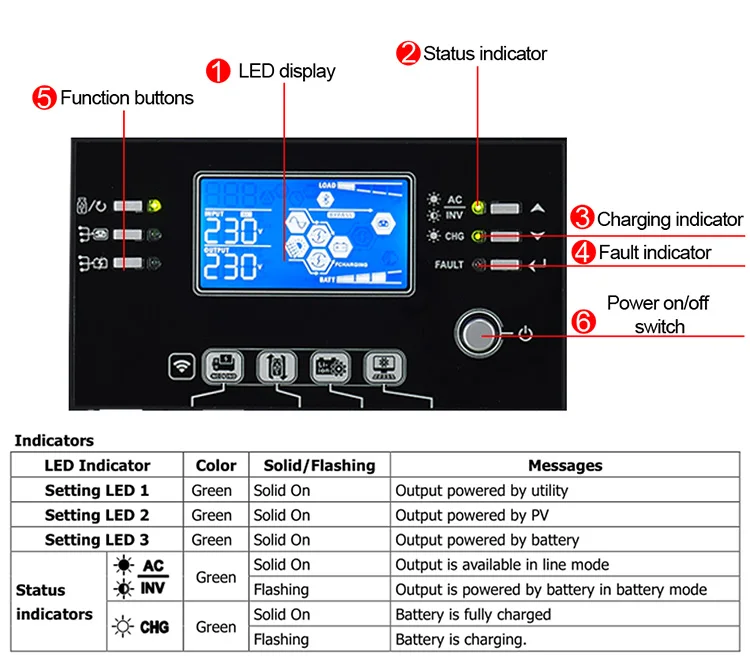

*Status indication with RGB lights*Built in WIFI for mobile monitoring ( Android / IOS app is available)
*Supports USB ON-THE-GO function
*Reserved communication port for BMS
*Replaceable fan design for ease of maintenance
*Battery independent design
*Configurable AC/PV output usage timer and prioritization
*Selectable input voltage range for home appliances and personal computers
*Compatible to Utility Mains or Gernerator input
*Built in Anti-dust kit

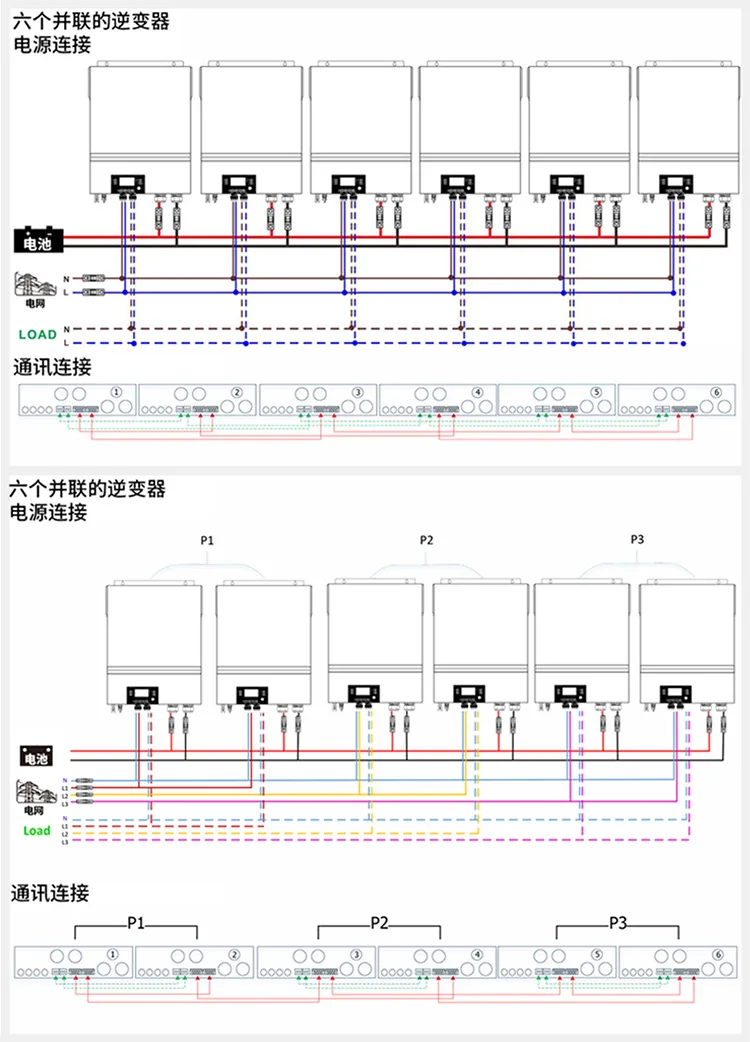

*Parallel operation with 6 units
*Dul outputs selected as either programmable output or generator input
*Status indication with RGB lights*Built in WIFI for mobile monitoring ( Android / IOS app is available)
*Supports USB ON-THE-GO function
*Reserved communication port for BMS
*Replaceable fan design for ease of maintenance
*Battery independent design
*Configurable AC/PV output usage timer and prioritization
*Selectable input voltage range for home appliances and personal computers
*Compatible to Utility Mains or Gernerator input
*Built in Anti-dust kit
*Parallel operation with 6 units
*Dul outputs selected as either programmable output or generator input
Specification
|
MODEL
|
Isolar SMW 11KW
|
|
|
Rated Power
|
11000VA/11000W
|
|
|
Parallel Capability
|
YES, 6 units
|
|
|
INPUT
|
||
|
Voltage
|
230 VAC
|
|
|
Selectable Voltage Range
|
170-280 VAC (For Computers)
90-280 VAC (For Home Appliances)
|
|
|
Frequency Range
|
50 Hz/60 Hz (Auto sensing)
|
|
|
OUTPUT
|
||
|
AC Voltage Regulation (Batt. Mode)
|
230VAC ± 5%
|
|
|
Surge Power
|
22000VA
|
|
|
Transfer Time
|
10 ms (For Personal Computers), 20 ms (For Home Appliances)
|
|
|
Waveform
|
Pure sine wave
|
|
|
No Load Power Consumption
|
<70W
|
|
|
Dual Outputs
|
Yes
|
|
|

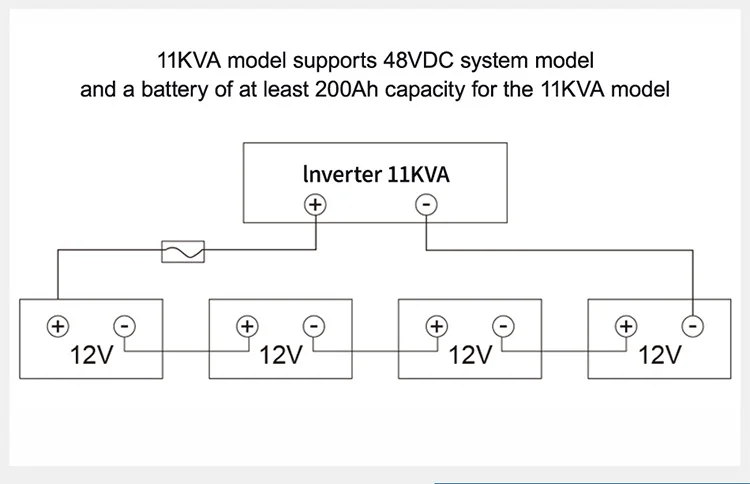

BATTERY
|
||
|
Battery Voltage
|
48 VDC
|
|
|
Floating Charge Voltage
|
54 VDC
|
|
|
Overcharge Protection
|
63 VDC
|
|
|

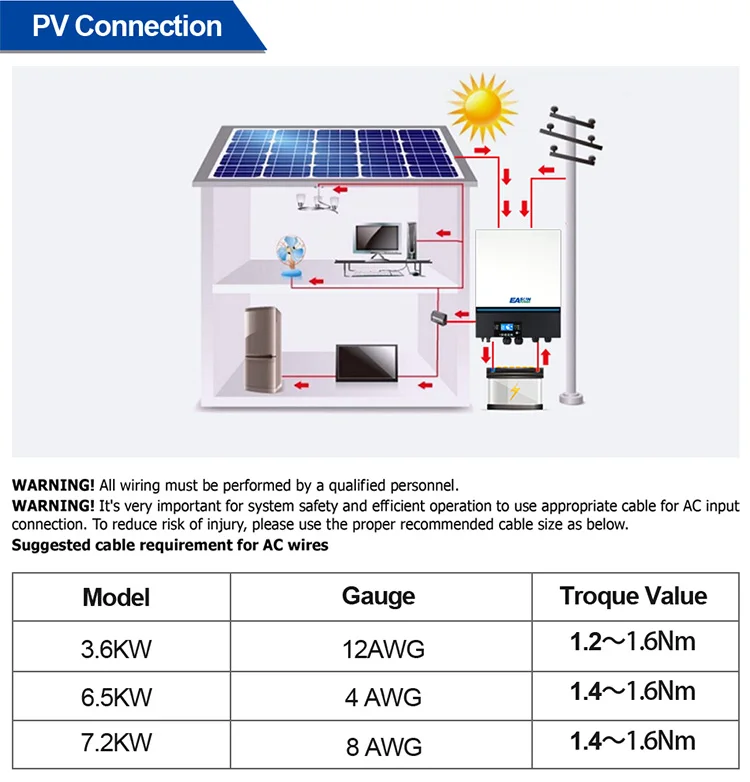

SOLAR CHARGER & AC CHARGER
|
||
|
Solar Charger Type
|
MPPT
|
|
|
Maximum PV Array Power
|
11000W
|
|
|
MPPT Range @ Operating Voltage
|
90 ~ 450 VDC
|
|
|
Maximum PV Array Open Circuit Voltage
|
500 VDC
|
|
|
Maxmum Solar Charge Current
|
150A
|
|
|
Maximum AC Charge Current
|
150A
|
|
|
Maximum Charge Current
|
150A
|
|
|
PHYSICAL
|
||
|
Dimension, D x W x H (mm)
|
147.4 x 432.5 x 553.6
|
|
|
Net Weight (kgs)
|
18.4
|
|
|

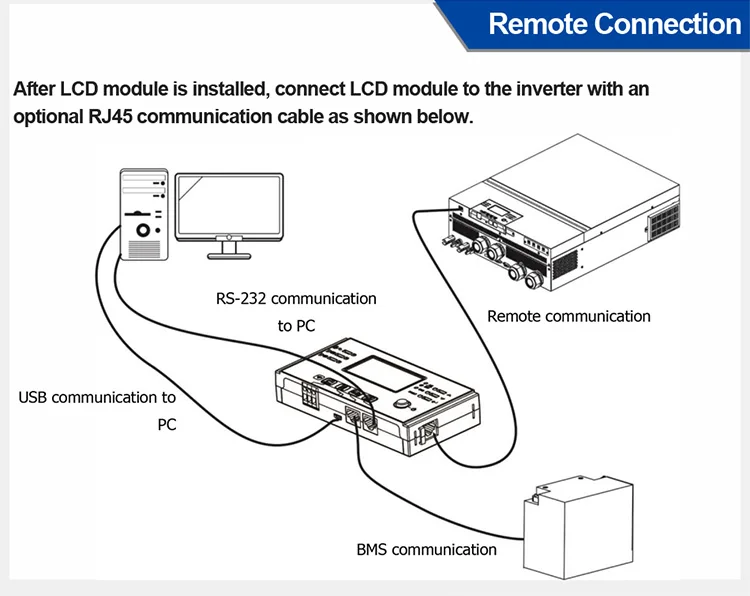

Communication Interface
|
USB/RS232/RS485/WiFi/Dry-contact
|
|
|
OPERATING ENVIRONMENT
|
||
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Operating Temperature
|
-10°C to 50°C
|
|
|
Storage Temperature
|
-15°C to 60°C
|
|
|
STANDARD
|
||
|
Compliance Safety
|
CE
|
|
Product Description
