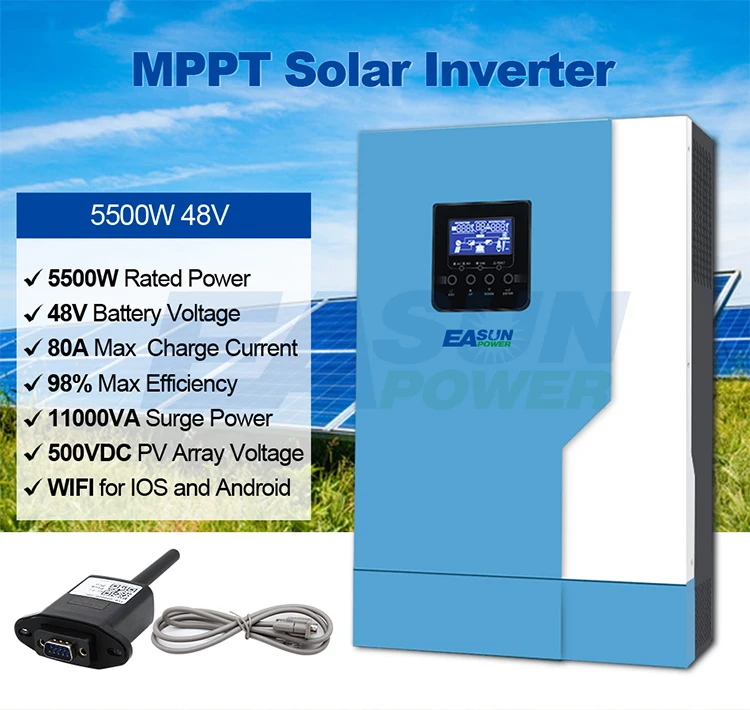

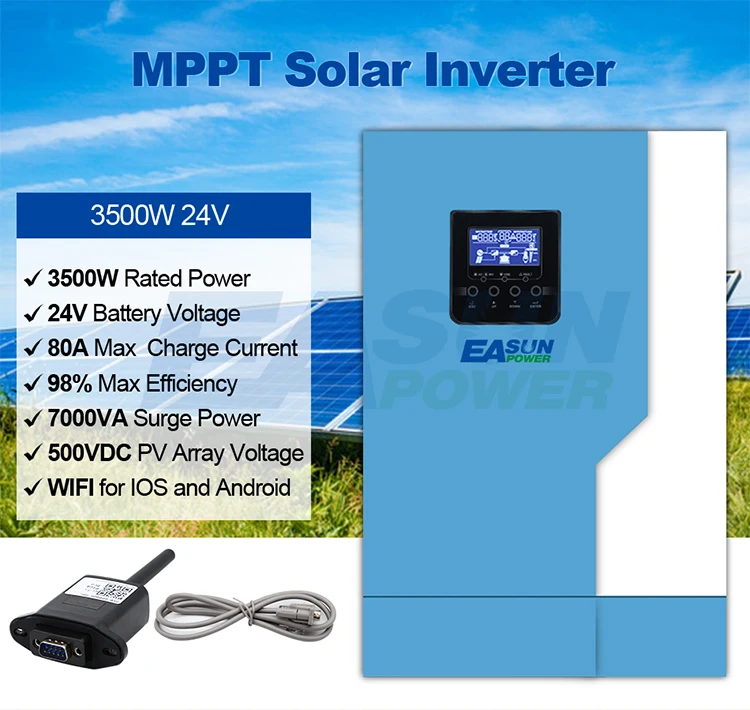

EASUN POWER MPPT 100A 500Vdc High Frequency Inverters 3500W 5500W OffGrid 3.5KW 5.5KW Solar Inverter Hybrid With WIFI Monitor
Product Main Features
* Pure sine wave inverter.
6000W 100A MPPT.
120-500V wide PV input.
Lithium battery.
Can work no battery.

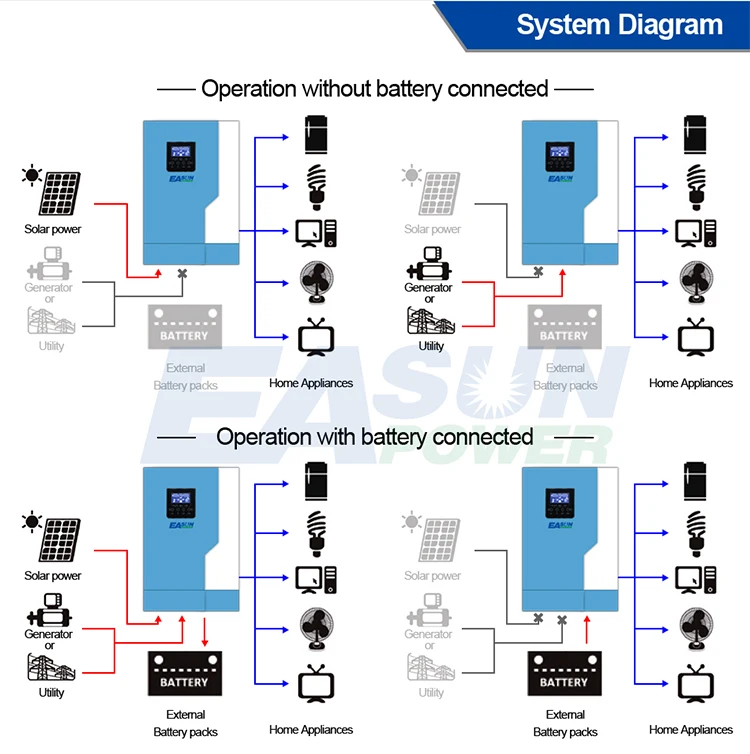

Generate power from PV directly to supply load, even without battery.
PV to AC efficiency is much higher.
* Pure sine wave inverter.
6000W 100A MPPT.
120-500V wide PV input.
Lithium battery.
Can work no battery.
Generate power from PV directly to supply load, even without battery.
PV to AC efficiency is much higher.
Specification
|
Model
|
Isolar SML III 3.5KW
|
Isolar SML III 5.5KW
|
||
|
RATED POWER
|
3500VA/3500W
|
5500VA/5500W
|
||
|
Input
|
||||
|
Voltage
|
230VAC
|
|||
|
Selectable Voltage Range
|
170-280VAC(For Personal Computers)
|
|||
|
90-280VAC(For Home Appliances)
|
||||
|
Frequency Range
|
50Hz/60Hz(Auto sensing)
|
|||
|
OUTPUT
|
||||
|
AC Voltage Regulation(Batt.Mode)
|
230VAC±5%
|
|||
|
Surge Power
|
7200VA
|
11200VA
|
||
|
Transfer Time
|
10ms(For Personal Computers):20ms(For Home Appliances)
|
|||
|
BATTERY&AC CHARGER
|
||||
|
Battery Voltage
|
24VAC
|
48VDC
|
||
|
Floating Charge Voltage
|
27VDC
|
54VDC
|
||
|
Overcharge Protection
|
33VDC
|
63VDC
|
||
|
Maximum Charge Current
|
110A
|
110A
|
||
|
SOLAR CHARGER
|
||||
|
Maximum PV Array Power
|
5000W
|
6000W
|
||
|
MPPT Range @ Operating Voltage
|
120-450VDC
|
|||
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
|||
|
Maximum Efficiency
|
98%
|
|||
|
PHYSICAL
|
||||
|
Dimension,D*W*H(mm)
|
100*300*400
|
|||
|
Net Weight(kgs)
|
11
|
12
|
||
|
Communication interface
|
USB/RS232/GPRS/WIFI
|
|||
|
OPERATING ENVIRONMENT
|
||||
|
Mumidity
|
5%to95%Relative Humidity(Non-condensing)
|
|||
|
Operating Temperature
|
0℃-55℃
|
|||
|
Storage Temperature
|
15℃-60℃
|
|||
Product Description
