Product Description
Size and Selection
|
Model
|
STEP
|
||||||
|
Motor type
|
Stepper motor
|
||||||
|
Precision
|
0.50%
|
||||||
|
Flow rate
|
150ml/min
|
||||||
|
Pump Assembly Rated Life
|
1000Hrs
|
||||||
|
Motor work temp
|
50℃
|
||||||
|
Noise Level
|
＜52dB
|
||||||
|
Media
|
liquid
|
||||||
|
Humidity
|
Less than 80%
|
||||||
|
Operating Environment
|
0-40℃
|
||||||
|
Head Configuration
|
single
|
||||||
|
Positive pressure
|
0.2Mpa
|
||||||
|
Nominal Motor Voltages
|
6V,12V,24V Other voltage can be customized
|
||||||
Brush Motor
|
Lead angle
|
Two(+,-)
|
||||||
|
specification
|
Thickness0.5mm,Width2.8mm,Height6.2mm
|
||||||
Brushless Motor Control Options
|
2 Wire
|
Red(+),Black (-)
|
||||||
|
3 Wire(Speed Control)
|
Red(+),Black (-),White (PWM) or Yellow (Analog)
|
||||||
|
4 Wire (Speed Control &Feedback)
|
Red(+),Black(-),White(PWM) or Yellow (Analog), Blue(Tachometer)
|
||||||
|
Wire specification
|
22AWG,Insulation OD 0.051 inch(1.30 mm), 20″(508 mm)Wire Leads
|
||||||
Brush Motor

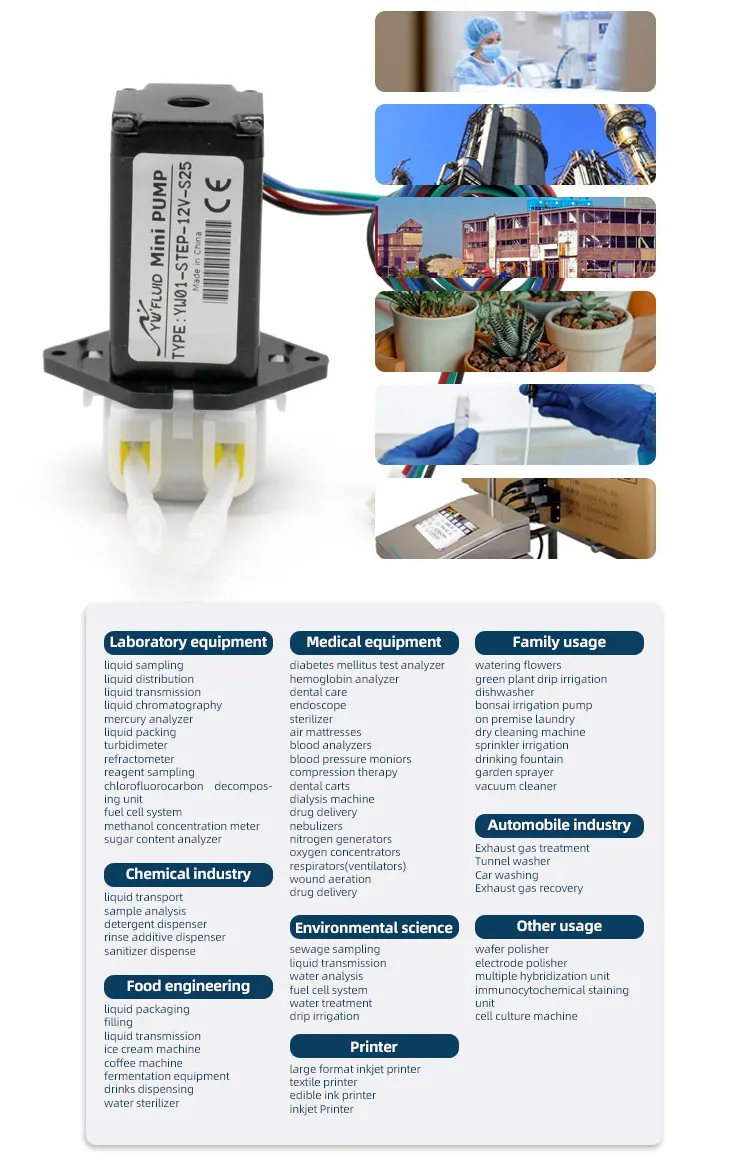

Typical Applications

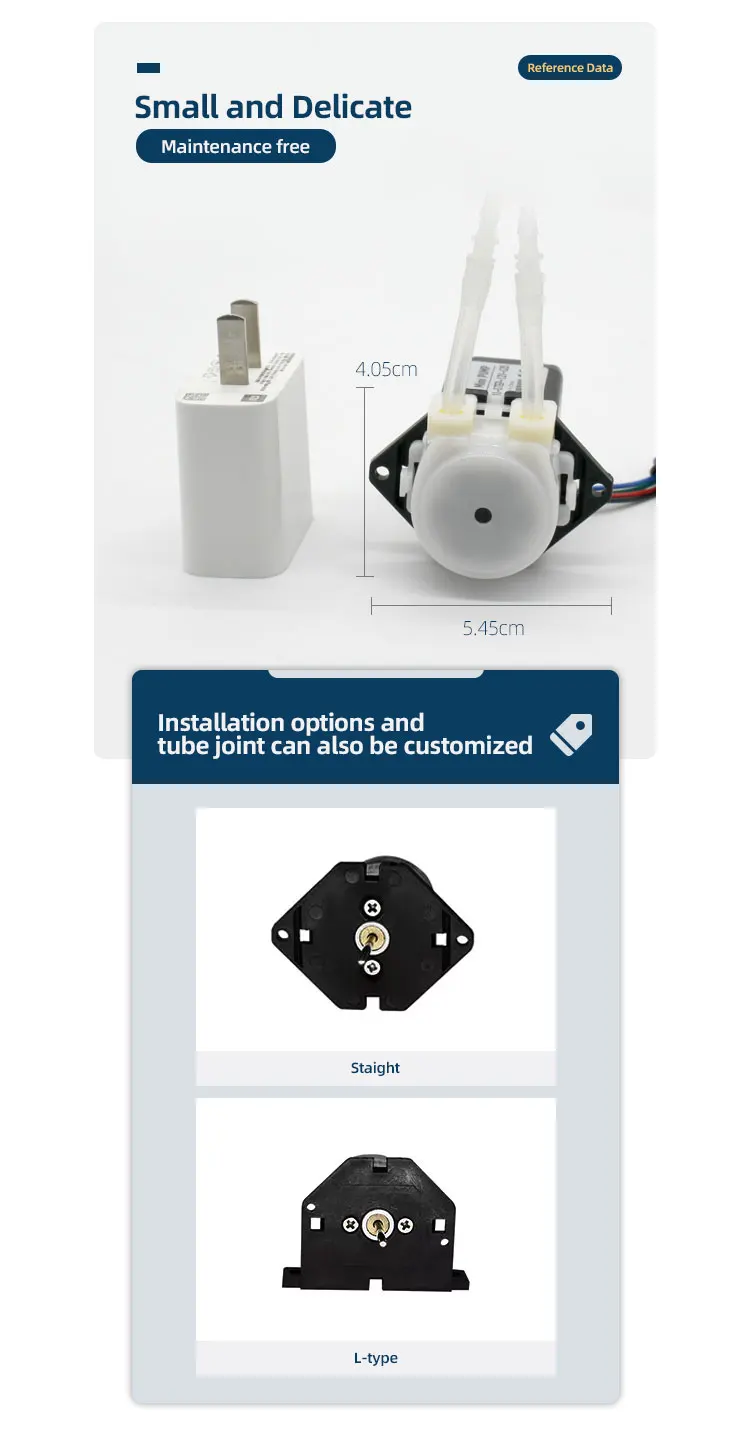

Product Details

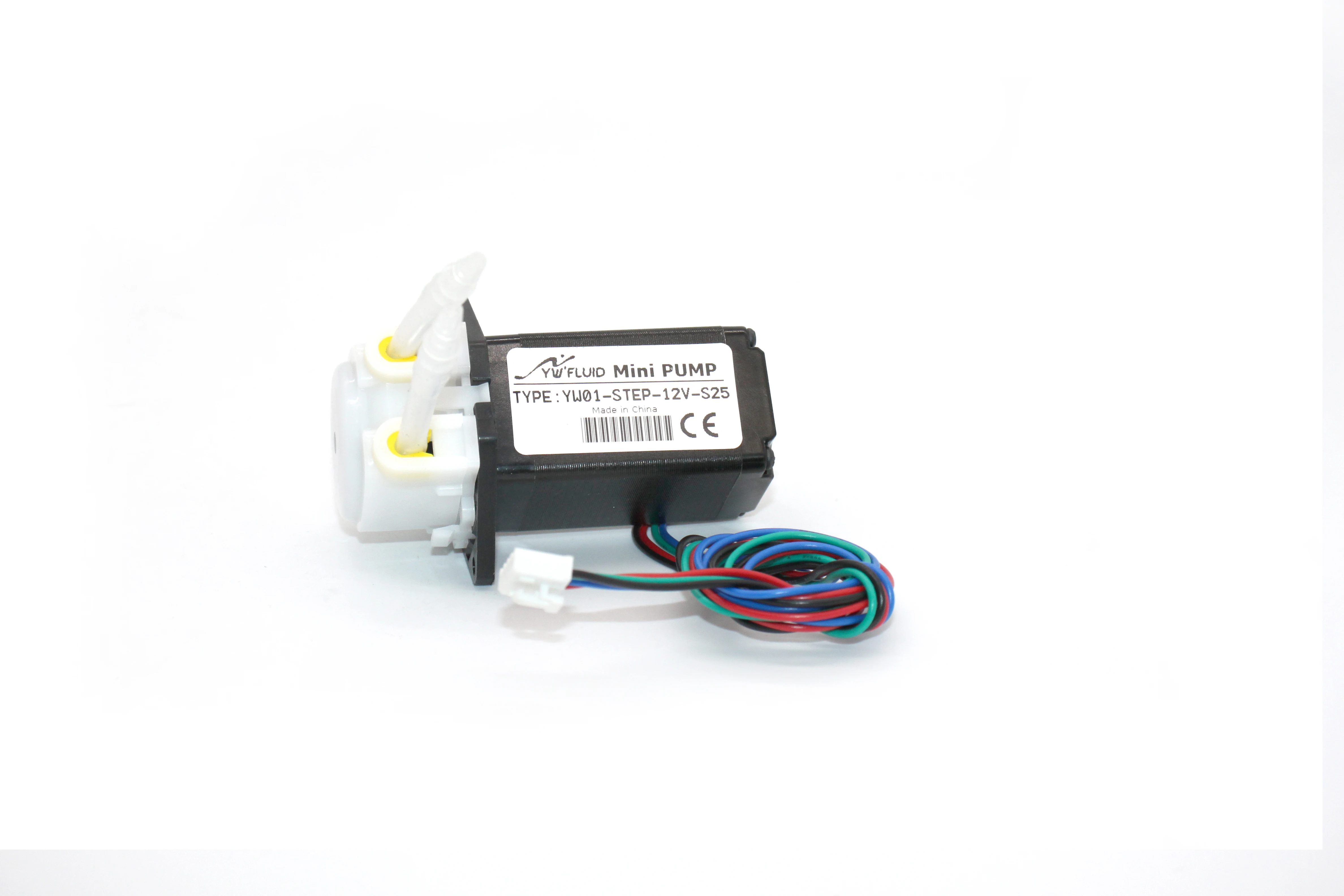

Product Photos
