Products Description

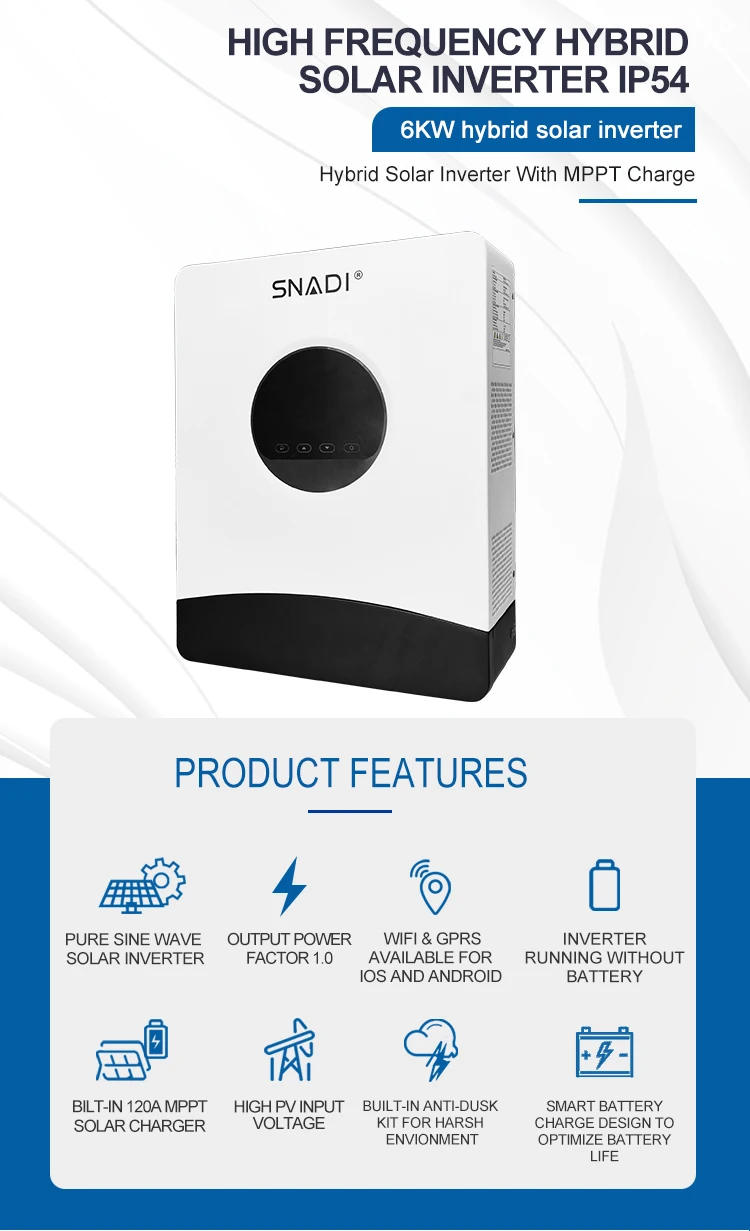

High frenquency mppt inverter
◒ Overload/Over temperature/short circuit protection
◒ Confgurable battery charging currentbased on applications via LCD setting

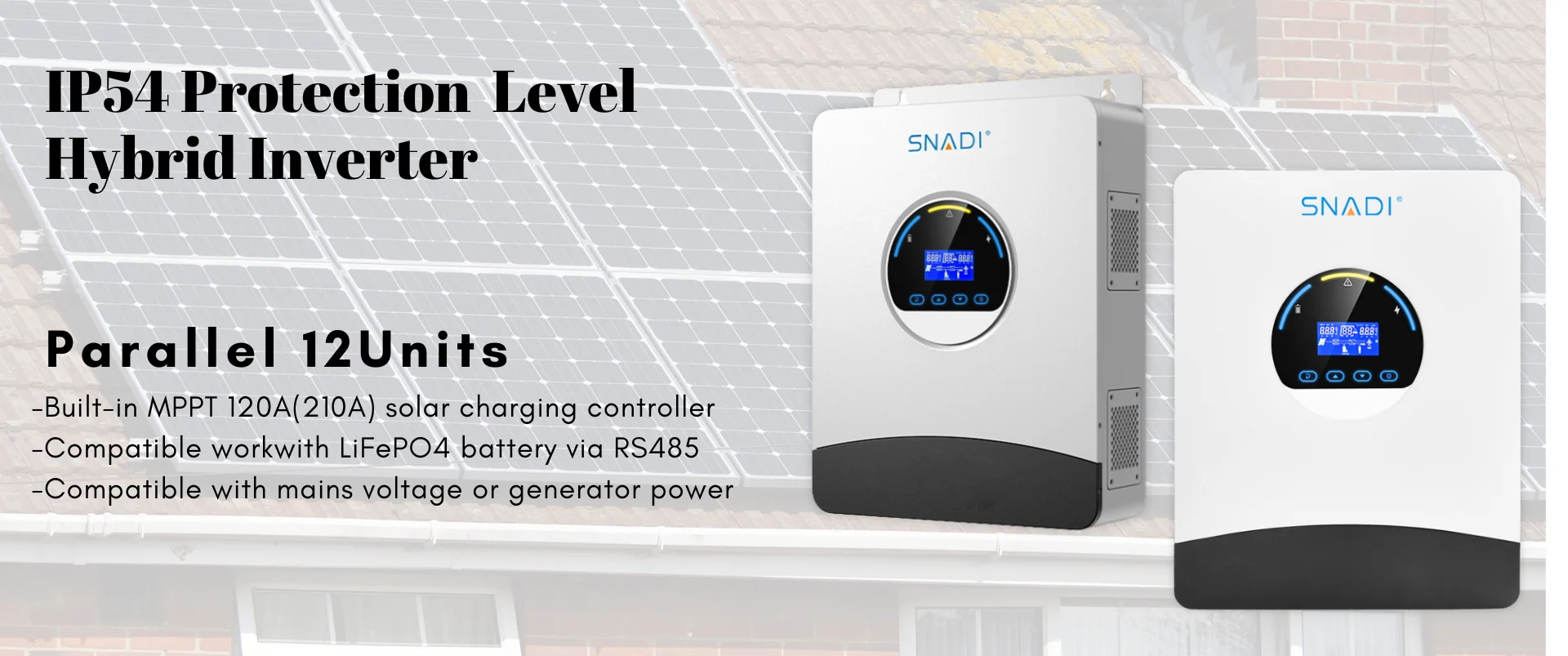

◒ Parallel connection quantity up to 12unitsfor 6KVA model(Battery must be connected )
|
Model:NKH
|
NKH-6000W
|
||
|
Class of protection
|
IP54
|
||
|
Rated Power
|
6000W
|
||
|
Inpute |
Voltage
|
230VAC
|
|
|
Selectable Voltage Range
|
170-280VAC(For Personal Computers)
|
||
|
90-280VAC(For Home Appliances)
|
|||
|
Output |
Frequency Range
|
50Hz/60Hz(Optional)
|
|
|
AC Voltage Regulation (Batt .Mode)
|
220VAC/230VAC/240VAC ±5%
|
||
|
Surge Power
|
12KW
|
||
|
Efficiency (Peak)PV to INV
|
97%
|
||
|
Efficiency (Peak)Battery to INV
|
93%
|
||
|
Transfer Time
|
10ms typical (UPS); 20ms typical (Appliances)
|
||
|
Overload Capacity
|
105%＜load rate≤150%，10.5s later alarm shtdown;load rate≥150%，5.5slater alarm shutdown
|
||
|
Battery & AC Charge |
Battery Voltage
|
48VDC
|
|
|
Floating Charge Voltage
|
54VDC
|
||
|
Overcharge Protection
|
64VDC
|
||
|
Maximum Charge Current
|
120A
|
||
|
Py Charge
|
Maximum PV Array Power
|
6000W
|
|
|
MPPT Range Operating Voltage
|
75V-450V
|
||
|
Maximum PV Array Open Circuit Voltage
|
500VDC
|
||
|
Maximum Charge Current
|
120A
|
||
|
Maximum Efficiency
|
93%
|
||
|
AC+Py Charge
|
Maximum Charge Current
|
120A
|
|
|
Physical |
Dimension D”W”H(mm)
|
347*445*120
|
|
|
Net Weight(kg)
|
13
|
||
|
Communication interface
|
RS232/RS485/Drycontact/WI-FI
|
||
|
Opera Ting Environmen!
|
Humidity
|
5% to 95% Relative Humidity(Non-condensing)
|
|
|
Operating Temperature
|
-10℃-55℃C
|
||
|
Storage Temperature
|
-15℃-60℃
|
||
Overload/over temperature/short
circuit protection
LCD Application Settings
