8w Solar Panel Powered Timer Switch 18650 Battery Outdoor Waterproof Charger by USB 5V DC12V Home 4G WIFI Router or Camera

NOTE

A maximum of 6PCS batteries can be installed on the panel. Due to AliExpress transportation reasons, this product has a standard built-in 2PCS battery. Other 4PCS need to be purchased by yourself. thanks

You can choose panels with different power

Choose according to your device power.
The higher the power, the faster the charging speed.

Features:

1. IP66 waterproof design
2. Built-in 2 18650 batteries, single 3000mah, total capacity 6000mah.
3. Charged during the day to the battery to store electrical energy, it still provides a stable power output at night without being restricted by sunlight. Other solar panels do not include batteries and cannot provide power at night.
4. The power switch, power supply and charging indicator light are intuitive and obvious.
5. Vertical 120° up and down adjustment of the bracket to facilitate charging and improve conversion efficiency.
6. Monocrystalline silicon has better charging efficiency, and it can still be charged in rainy days.
7. The glass panel is easy to clean dust and not easy to be scratched.
8. Provide 5V2A or 12V/1A stable current to supply the equipment with stable and reliable power.
9. Battery reverse connection protection, effectively placing the battery reverse connection to damage circuit components.

LED function description

red light
On: The battery voltage is normal (above 2V)
Off: The battery is abnormal.
green light
Flashing (1 flash per second): charging (battery voltage between 2.8-4.0V)
Flashing quickly (1 flash every 0.5 seconds): charging failure
Blinking slowly (1 time in 2 seconds): charging (battery voltage is below 2.8)
Always on: The battery voltage is above 4.0V.
orange light
On: there is output voltage
Off: No output voltage

Built-in 6000mah battery, it can still work at night.

*18650 type battery (height must be 65mm)
*The positive electrode must have a conical cap
*Korea KC battery, cannot be used, please choose a battery with a height of 65mm. thanks

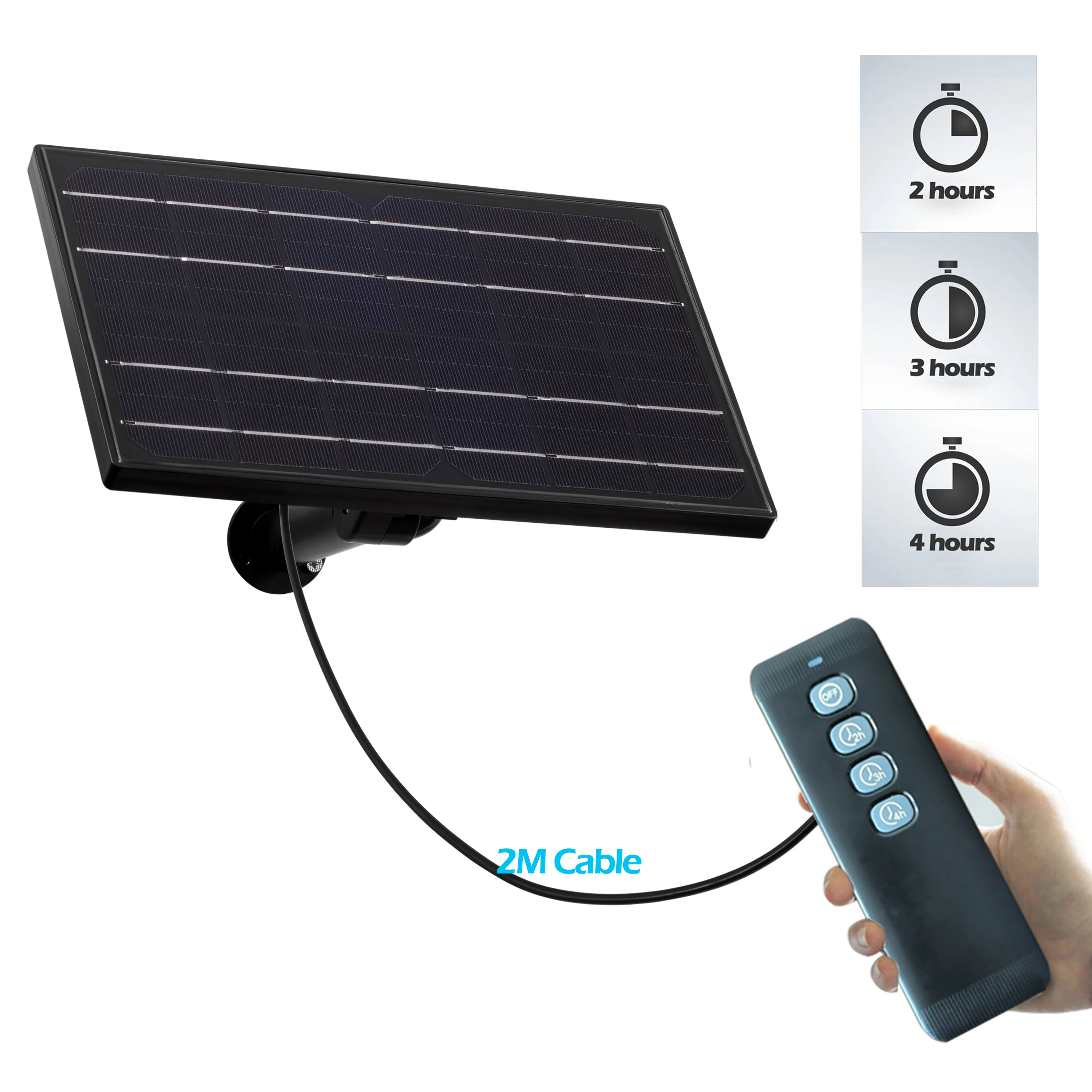

Remote control to control 2/3/4 hours output power

* You can control the output switch of the panel remotely through the remote control.
*The effective control distance of the remote control is 30 meters (tested in the open, the distance will be shorter when there are obstacles)
* Timing output 2/3/4 hours output, automatic cycle every day, automatically start when the time is up.

Remote Control Instructions

OFF: Turn off the solar panel output.
2H: Turn on the output for 2 hours, and automatically turn on for 2 hours every day.
3H: Turn on the output for 3 hours, and automatically turn on for 3 hours every day.
4H: Turn on the output for 4 hours, and automatically turn on for 4 hours every day.

Options 1 and 2

*The plug for option 1 and 2 is 3.5X1.35MM
*Power output 5V2A.
*Option 1 does not include battery
*Option 2 include battery,Battery capacity 6000mah.

Options 3 and 4

*The plug for option 3 and 4 is Micro-USB
*Power output 5V2A.
*Option 3 does not include battery
*Option 4 include battery,Battery capacity 6000mah.

option 5 and 6

*The plug for option 5 and 6 is type C
*Power output 12V1A.
*Option 5 does not include battery
*Option 6 include battery,Battery capacity 6000mah.

option 7 and 8

*The plug for option 5 and 6 is 5.5*3.5MM
*Power output 12V1A.
*Option 7 does not include battery
*Option 8 include battery,Battery capacity 6000mah.

Can it be applied to those devices?

It can be connected with the following equipment and provide a stable power supply. Note: The purchase of this connection only includes solar panels and does not include the following equipment.
