NEW PURE SINE WAVE INVERTER
Pure sine wave inverter, MPPT controller, high power battery charger Pure sine wave inverter, using advanced sine wave modulation
technology, high power, convert 12V/24V/48V DC from battery into 110V/220V AC, 90% or more of power conversion rate. High quality
pure sine wave inverter can drive any kind of load, the corresponding technical requirement and cost is high,widely used in solar
power systems, the other new energy storage systems,household appliances & auto equipment system etc.
technology, high power, convert 12V/24V/48V DC from battery into 110V/220V AC, 90% or more of power conversion rate. High quality
pure sine wave inverter can drive any kind of load, the corresponding technical requirement and cost is high,widely used in solar
power systems, the other new energy storage systems,household appliances & auto equipment system etc.

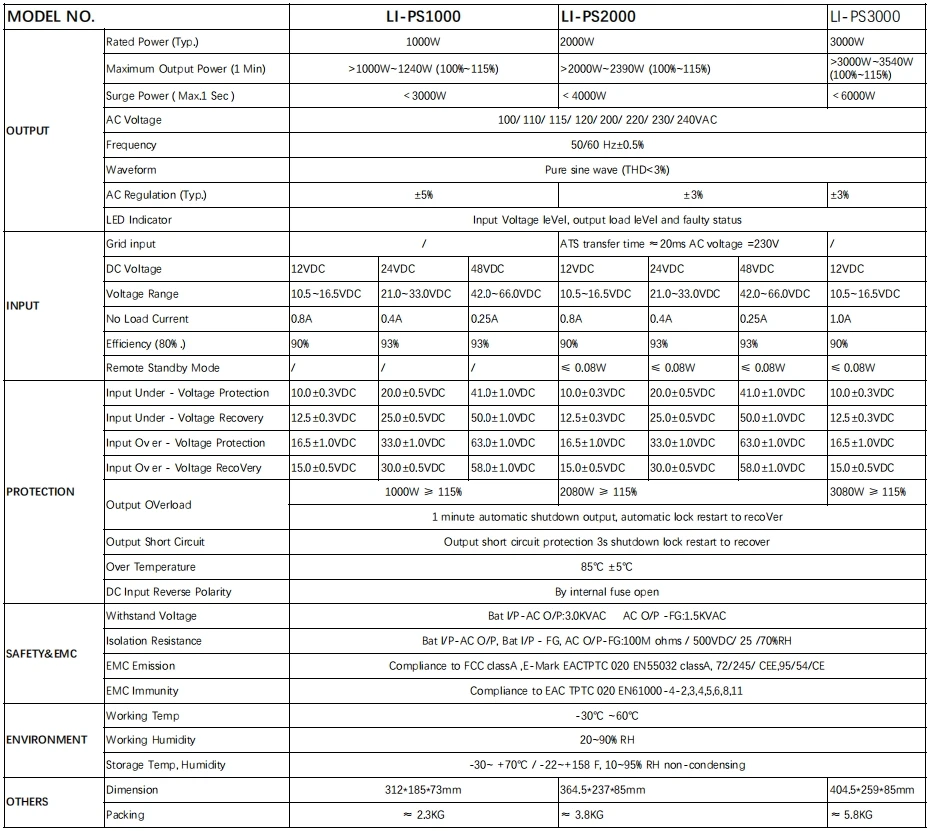

Specification
|
Protective Function
|
|
1) Low -voltage alarm: The buzzer sounds 2 times With 1 Hz gap.
|
|
2) Low voltage protection: The buzzer continuously sounds 3 times alarm, With1 Hz gaps
|
|
3) Low -voltage recovery: the low -voltage rise automatically restores the output, and the buzzer sounds 3 times alarm is cancelled.
|
|
4) Overvoltage protection: The buzzer sounds 4 times, With 1 Hz gap.
|
|
5) Overvoltage recovery: The voltage is reduced automatically to restore the output, and the buzzer sounds 4 times alarm is cancelled.
|
|
6) Thermal protection: 85 ° ± 5 °, when overheat protection buzzer sounds 5 times alarm, With1 Hz gap.
|
|
7) Overload protection: overload 100%~115% 60s Turn off overload 116%~150% 3s Turn off overload 151%~200% 1s Turn off,overload>200%,200ms Turn off,The buzzer blared .
|
|
8) Short circuit protection: Output short circuit protection 3S shutdown lock.
|
|
