2KW 4KW 5KW 6KW off-grid hybrid mpp solar inverter pure sine wave power inverter off grid solar inverter offgrid
Features:
- Pure sine wave output;
- Low-frequency toroidal transformer lower loss;
- Intelligent LCD integration display;
- Built-in PWM or MPPT controller optional;
- AC charge current 0~30A adjustable, three working modes selectable;
- Peak power more than 3 times, full-automatic and perfect protection function;
- Added fault code query function, easy to monitor the operation in real-time;
- Supports diesel or gasoline generator, adapt to any tough electricity situation;
- Combine industrial and home usage, wall-mounted design, and convenient installation.
Application Area:
Office and public facilities, home system, network transmission equipment, manufacturing, control system, solar system, oil field, drilling site operation, etc.
Provide stable, reliable and safe solutions for families, islands, ships and other small photovoltaic power generation systems

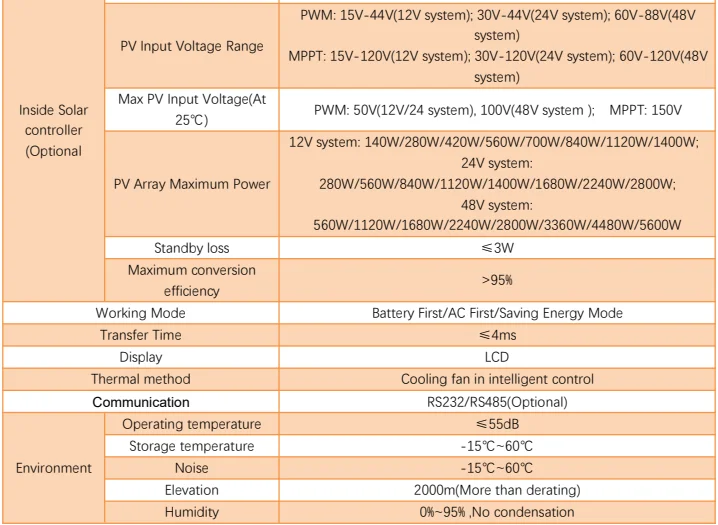

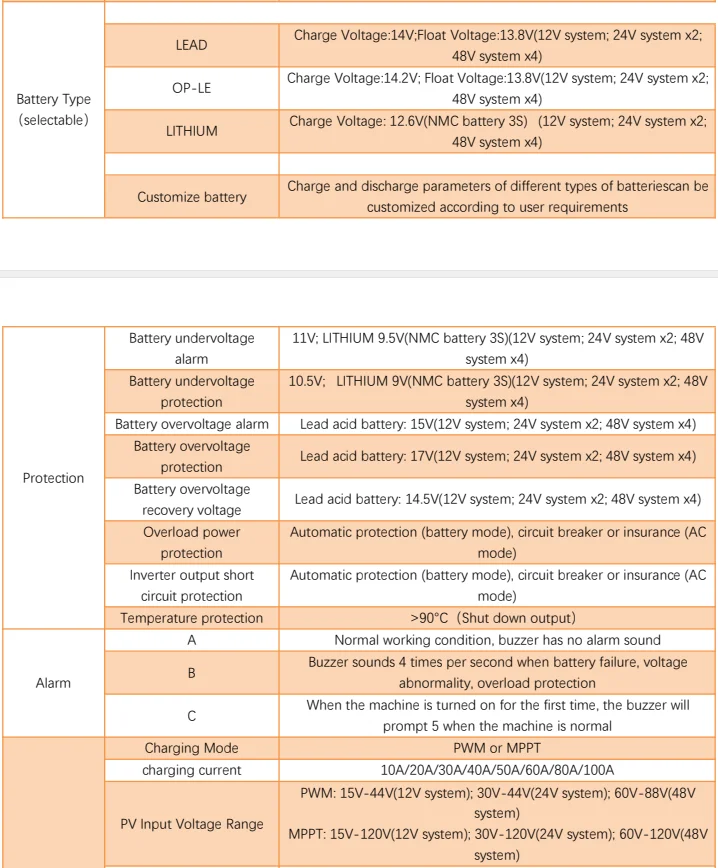

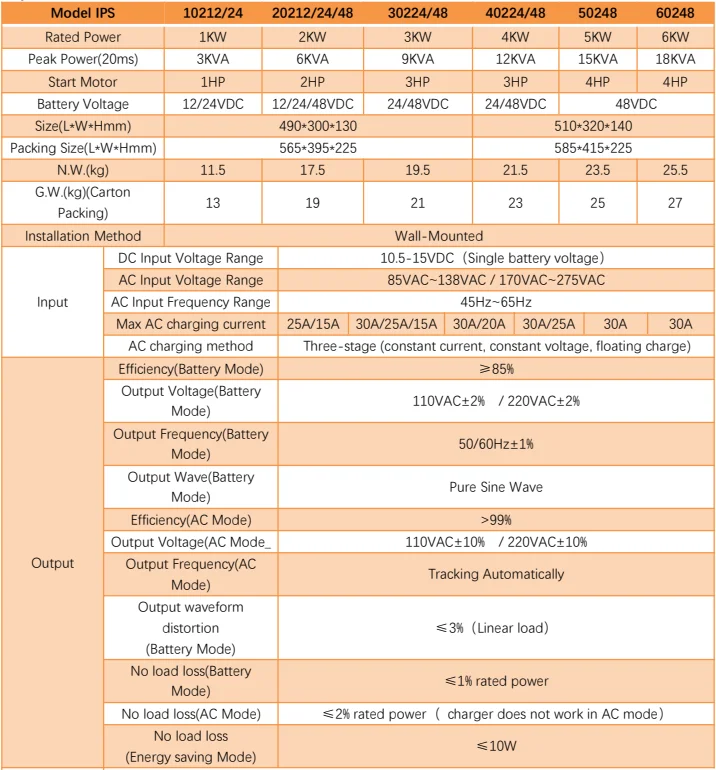

Specification:

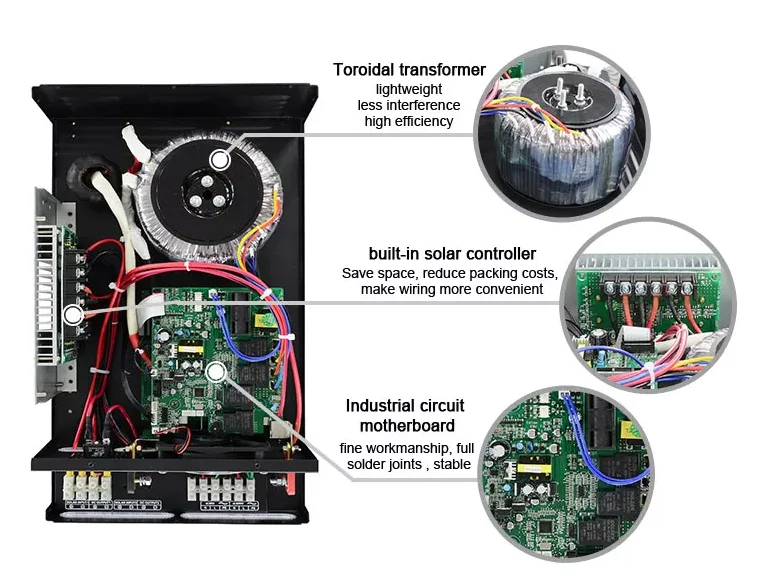

Product Details
Wiring Diagram
1. Battery number and capacity should be configured according to the rated voltage of the solar power system or inverter;
2. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the grid and battery are connected to the inverter, the grid will supply power to the loads directly after the voltage is stabilized and charge batteries via an inverter. When the grid is cut off, the battery will automatically continue to supply power via an inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no output from the inverter. Only the chip of the inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows the output voltage of 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC to supply power for the loads. The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, the battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
