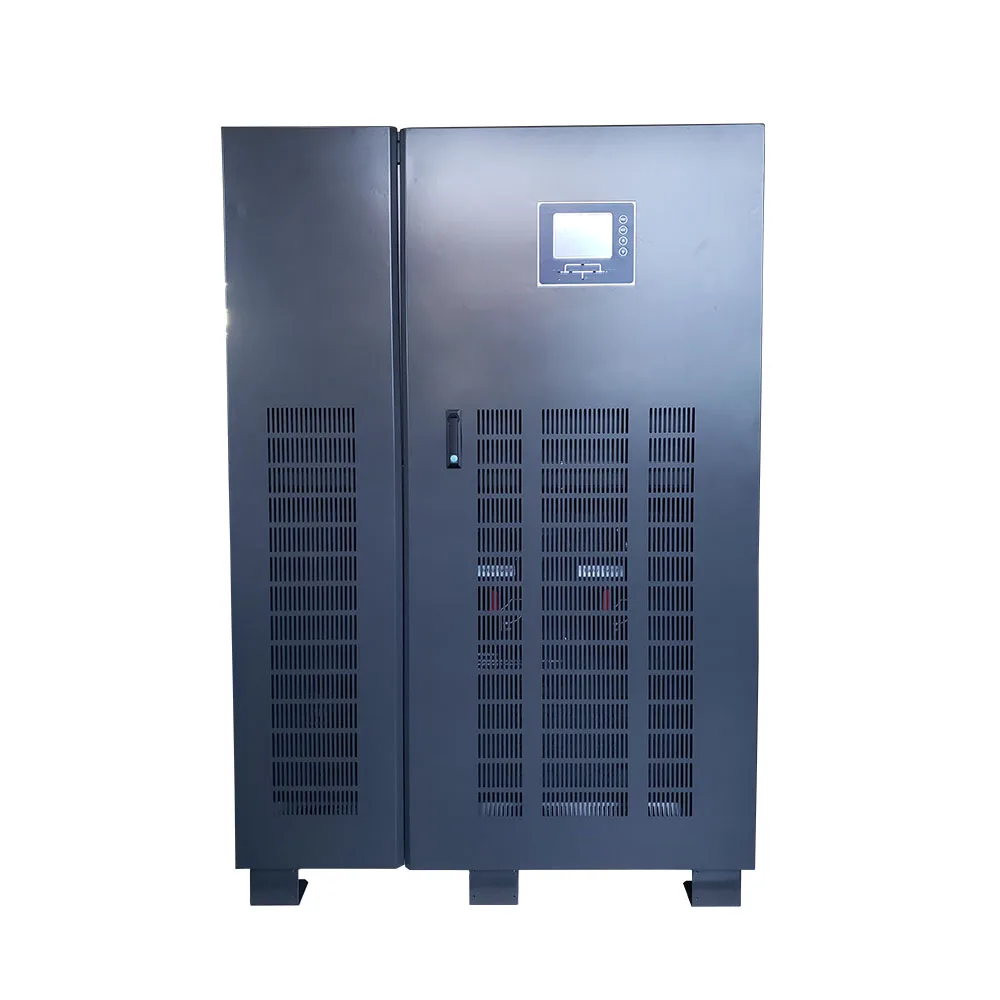

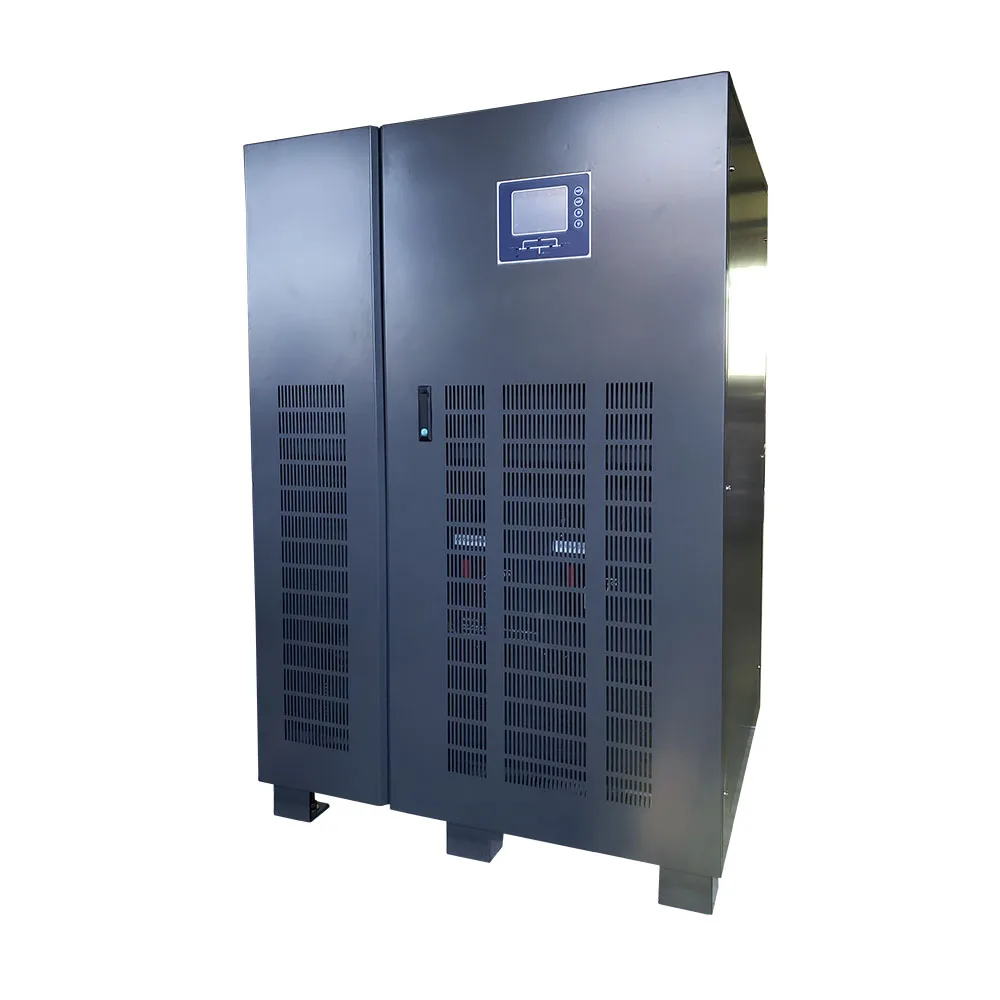

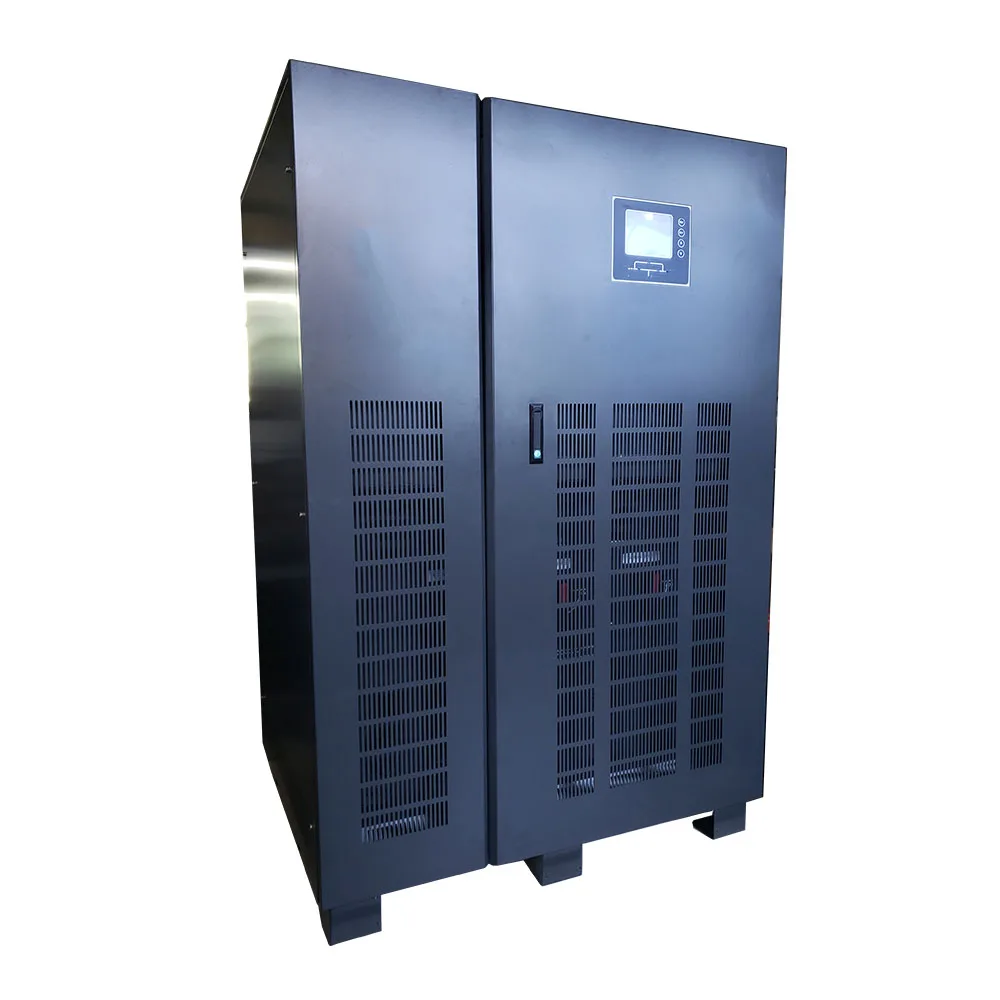

Product Description
* Product can provide reliable power supply protection for large data centers, network computer rooms as well as the electric power link of fields such as manufacturing, traffic and energy to meet the high reliability requirement of users for large-power inverters
* Based built-in MCUs, the product can output stable and pure sine waves and provide safe and reliable power supply protection for user
* Based built-in MCUs, the product can output stable and pure sine waves and provide safe and reliable power supply protection for user
Feature
* advanced operation mode
* Frequency tracking, phase-locking voltage stabilization, noise filtering and prevention of impact by fluctuation of the power grid realized in output of the inverter
* Efficient IGBT (insulated gate bipolar transistor) inversion technology good high-speed switching feature, large-voltage and large-current operating characteristics and voltage drive of IGBT
* High adaptability a wide range of input frequency (45Hz-65Hz), which realizes stable operation of fuel generators
* Greater loading capacity suitability for industrial applications such as machine tools and wire cutters
* Management function big LCD, visualized display of operation statuses through flow charts, intelligent icon touch buttons,tabular data, event records and more visualization of parameters of the inverter by means of communication with a computer via a RS232 /RS485 interface with help of intelligent monitoring software of the inverter
* Intelligent battery management intelligent battery charge
* Intelligent battery fault detection: measurement of single parameters, display of the measurement results on the LCD and immediate alarming and notification for the administrator upon any battery fault
* Personalized settings proper adjustment of the input parameters according to the input power supply conditions.
* Frequency tracking, phase-locking voltage stabilization, noise filtering and prevention of impact by fluctuation of the power grid realized in output of the inverter
* Efficient IGBT (insulated gate bipolar transistor) inversion technology good high-speed switching feature, large-voltage and large-current operating characteristics and voltage drive of IGBT
* High adaptability a wide range of input frequency (45Hz-65Hz), which realizes stable operation of fuel generators
* Greater loading capacity suitability for industrial applications such as machine tools and wire cutters
* Management function big LCD, visualized display of operation statuses through flow charts, intelligent icon touch buttons,tabular data, event records and more visualization of parameters of the inverter by means of communication with a computer via a RS232 /RS485 interface with help of intelligent monitoring software of the inverter
* Intelligent battery management intelligent battery charge
* Intelligent battery fault detection: measurement of single parameters, display of the measurement results on the LCD and immediate alarming and notification for the administrator upon any battery fault
* Personalized settings proper adjustment of the input parameters according to the input power supply conditions.
Detailed Images

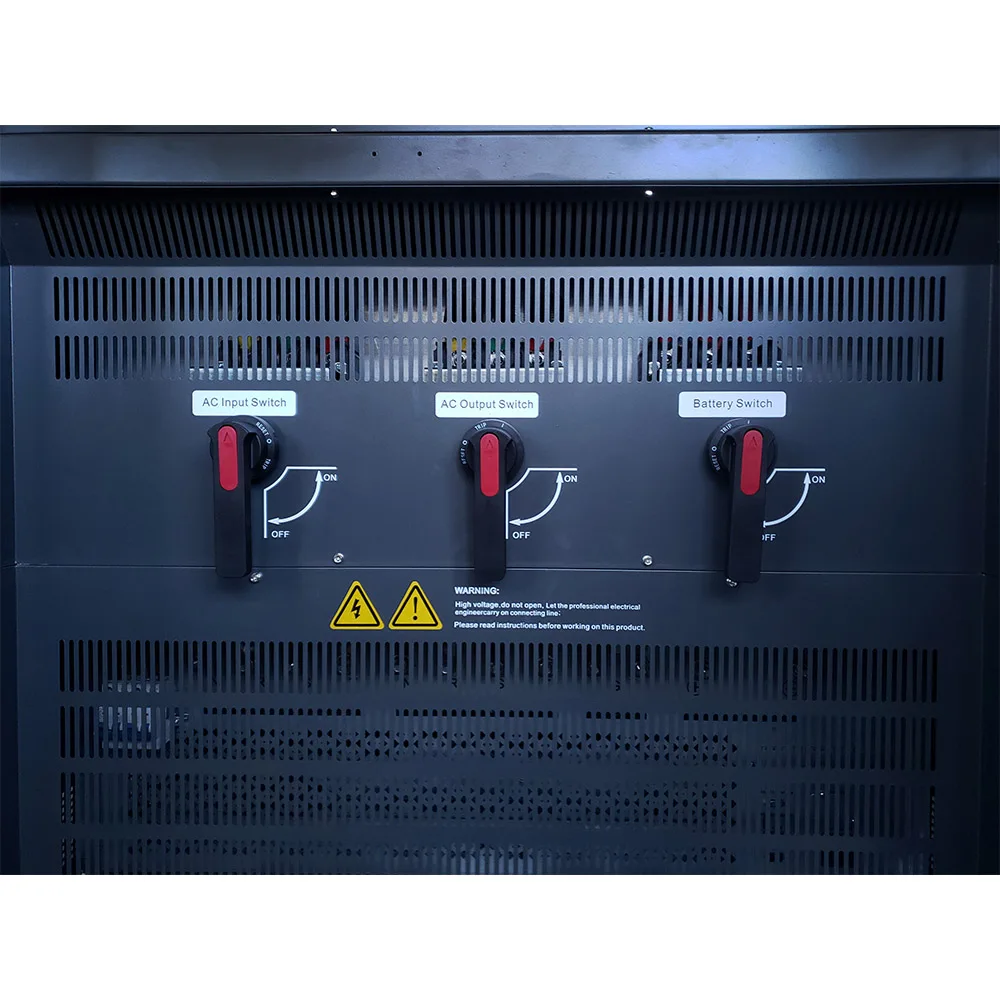

Switch Power Supply

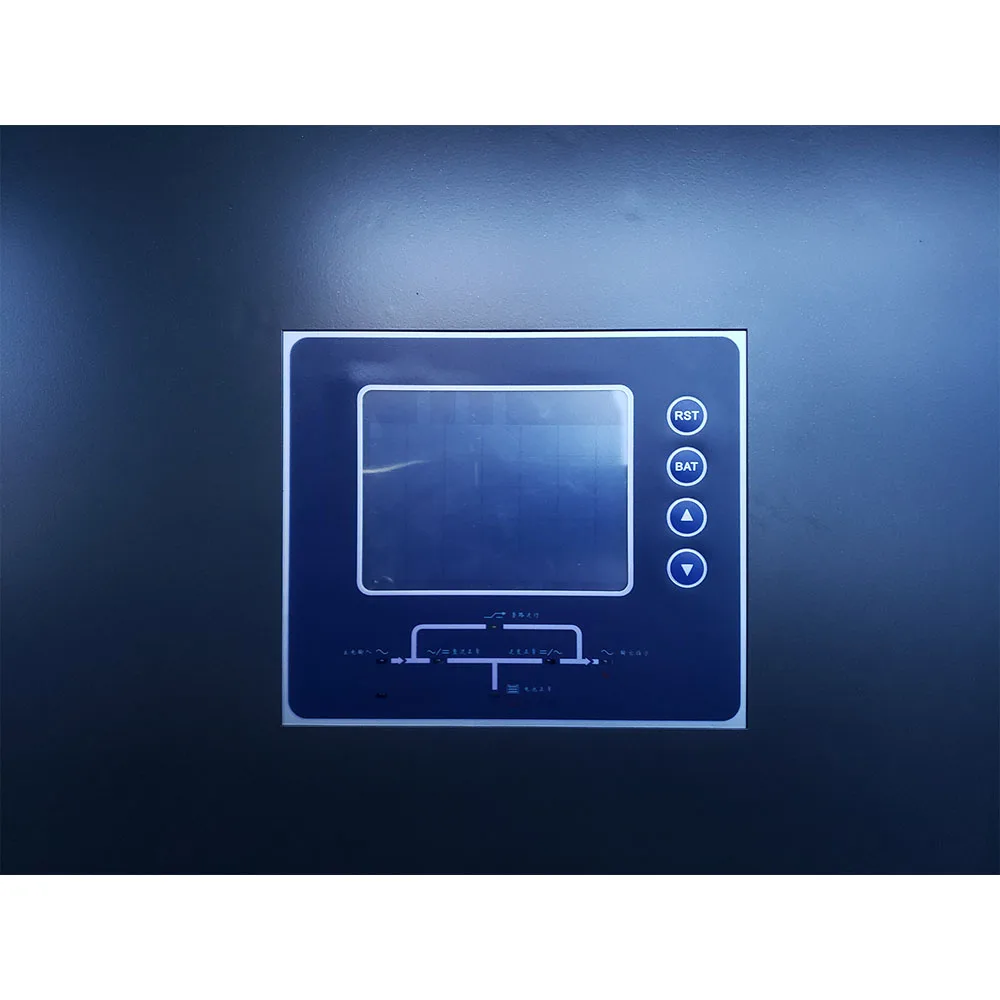

Large LCD Display

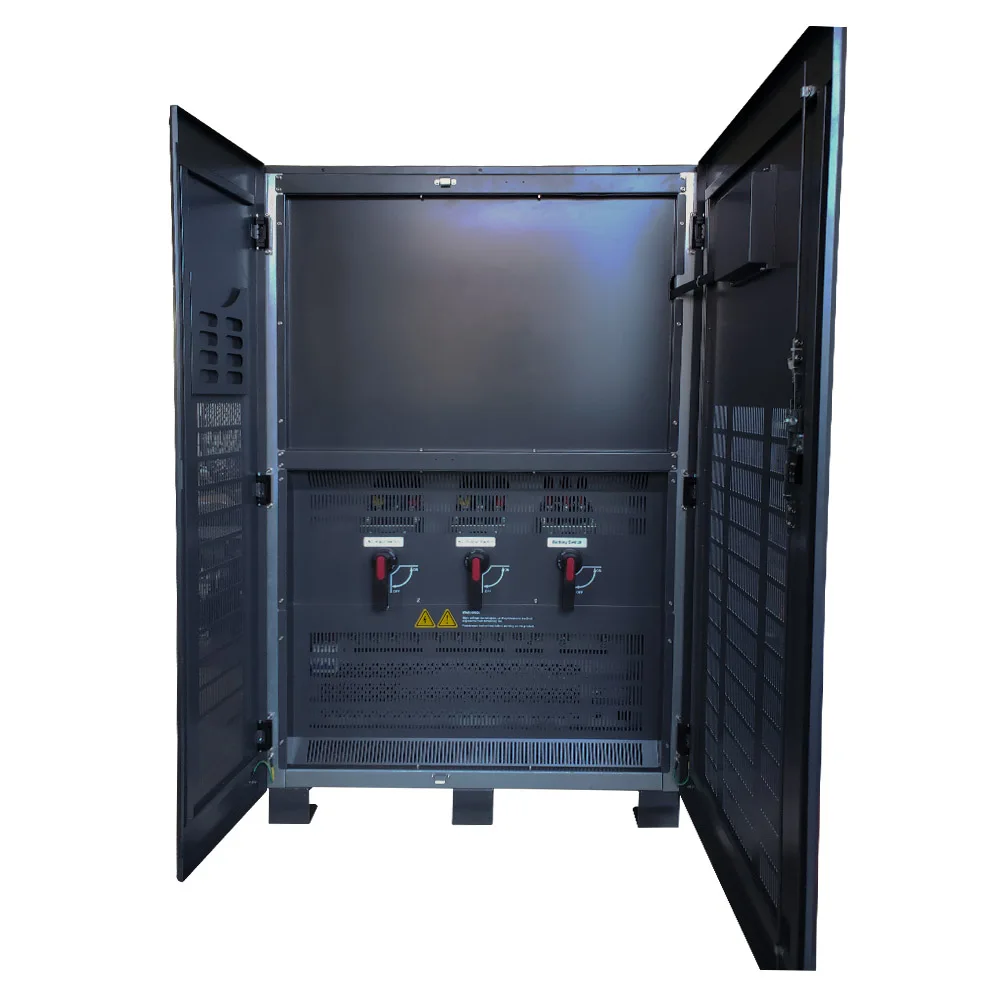

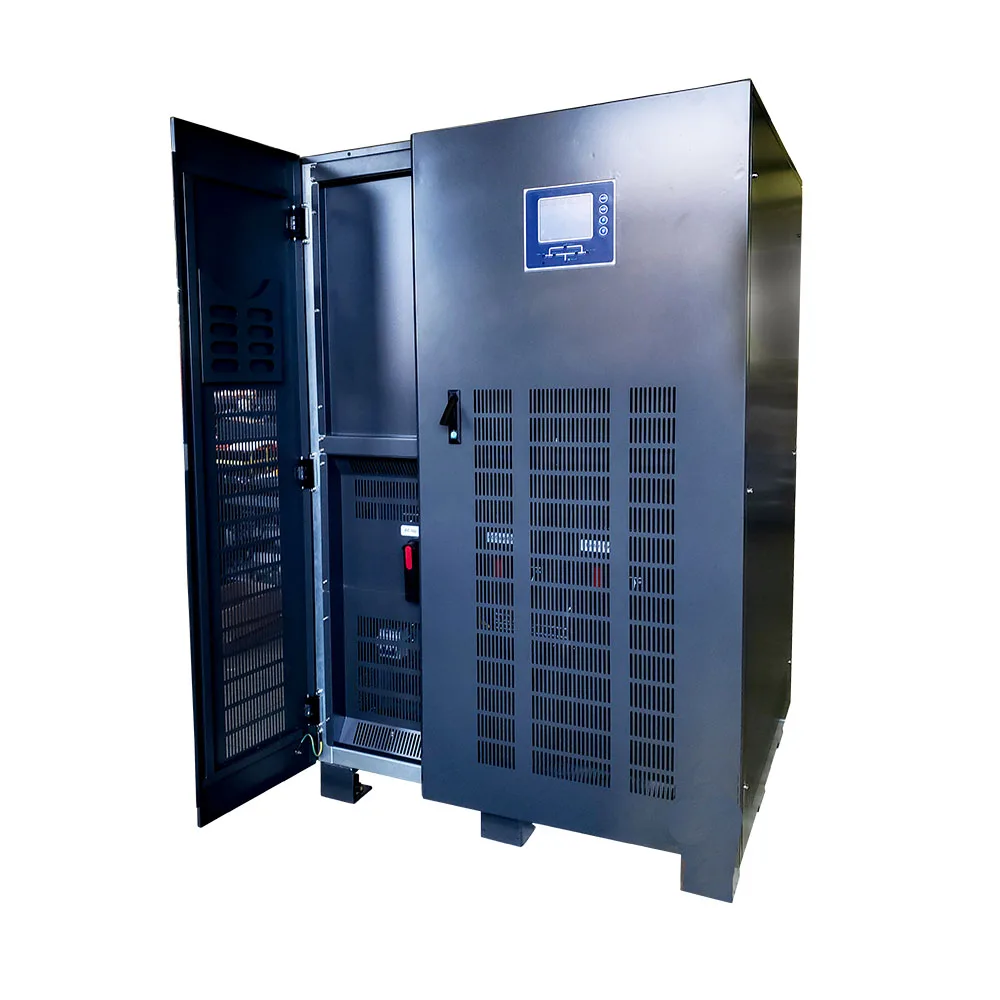

Machine box and Internal Drawing
Size Information
Size Chart of This Design
|
Model
|
TP-60KW
|
TP-80KW
|
TP-100KW
|
TP-150KW
|
TP-200KW
|
||||||
|
Operation Mode and Principle
|
PWM (Pulse width modulation)based on DSP accurate control technology and double built-in MCUs Complete isolation of the output power supply
|
26
|
27.9
|
29.9
|
31.9
|
||||||
|
AC Input
|
Phase Number
|
Three Phase+N+G
|
15.3
|
15.9
|
16.5
|
17.1
|
|||||
|
Voltage
|
AC220V/AC380V ± 20%
|
||||||||||
|
Frequency
|
50Hz / 60Hz ±5%
|
||||||||||
|
DC Input
|
DC Voltage
|
DC192V/220V/240V/384V(16 to 32pieces of 12V batteries)
|
|||||||||
|
Floating Battery
|
13.6V of each battery x battery quantiry(13.6V x 16batteries=217.6V)
|
||||||||||
|
Cut-off voltage
|
10.8V of each battery x battery quantiry(10.8V x 16batteries=172.8V)
|
||||||||||
|
AC output
|
Phase Number
|
Three Phase+N+G
|
|||||||||
|
Voltage
|
AC220V/AC380V ± 1%
|
||||||||||
|
Frequency
|
50Hz / 60Hz ±5% (mains supply ) 50Hz ±0.01%(battery)
|
||||||||||
|
Efficiency
|
≥95%(load:100%)
|
||||||||||
|
R
|
Output waveform
|
Pure Sine Wave
|
|||||||||
|
r
|
Recovery Time
|
<100ms
|
|||||||||
|
System Index
|
Communication
|
RS232/RS485 (SNMP remote monitoring network adapter)
|
|||||||||
|
Operating Temp.
|
-10~40℃
|
||||||||||
|
Relative Humidity
|
0~90%(no condensation)
|
||||||||||
|
Structure
|
Dimensions D*W*H(mm)
|
600*720*1500
|
900*800*1800
|
1380*800*1800
|
|||||||
|
Weight (kg)
|
500
|
580
|
688
|
850
|
980
|
||||||
